APPENDIX 2:
VOLT/AMP CURVES

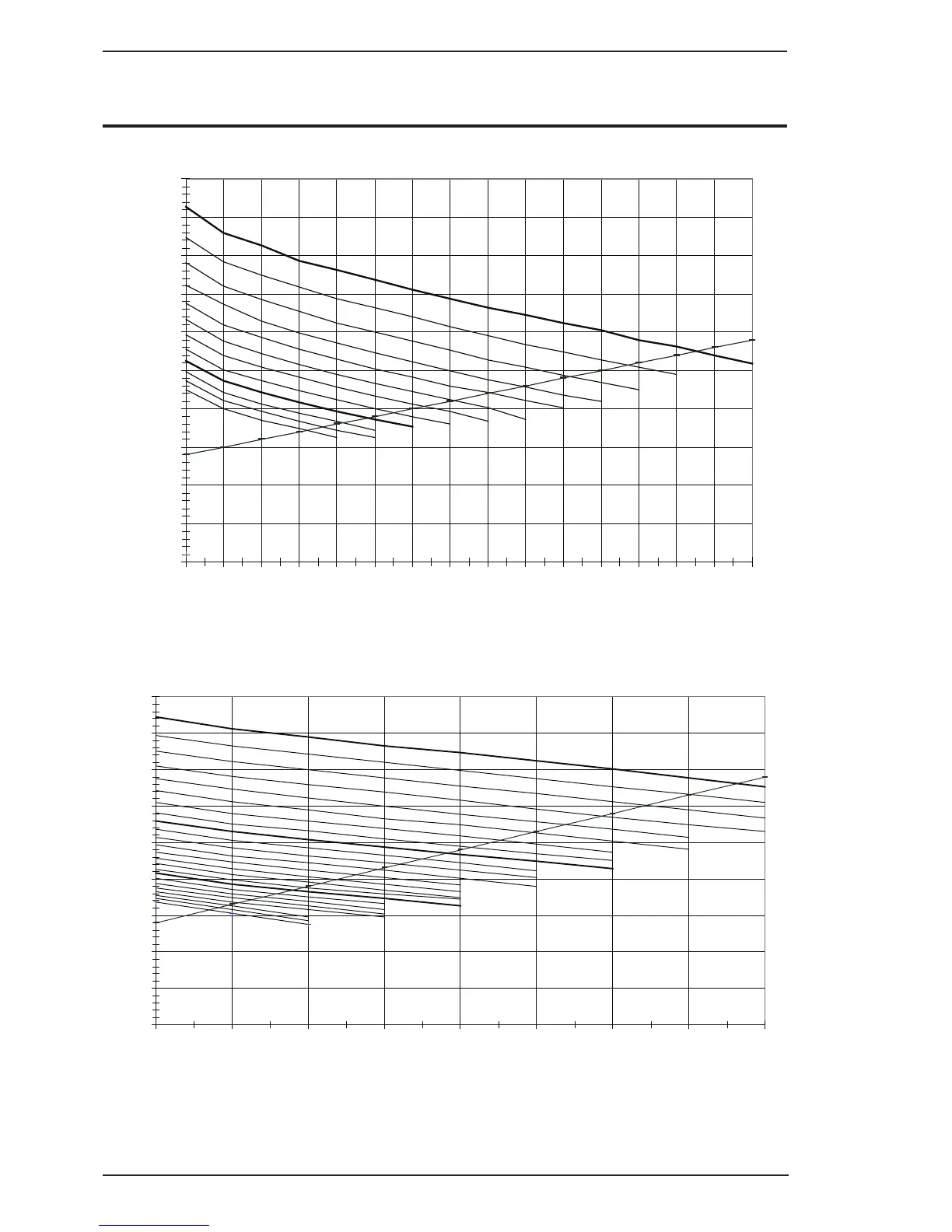

WeldSkill 250 VA Curve
WeldSkill 250 VA Curve
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300
Amps
V olts
Art # 0-08731
WeldSkill 350 VA Curve
Weldskill 350 VA Curve
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
0 50 100 150 200 250 300 350 400
Amps
Volts
Art # 0-08732
