CipherLab 1100 User Manual

110
End Programming Format
1000/1090+/1100/1105 Barcode Scanner User Guide

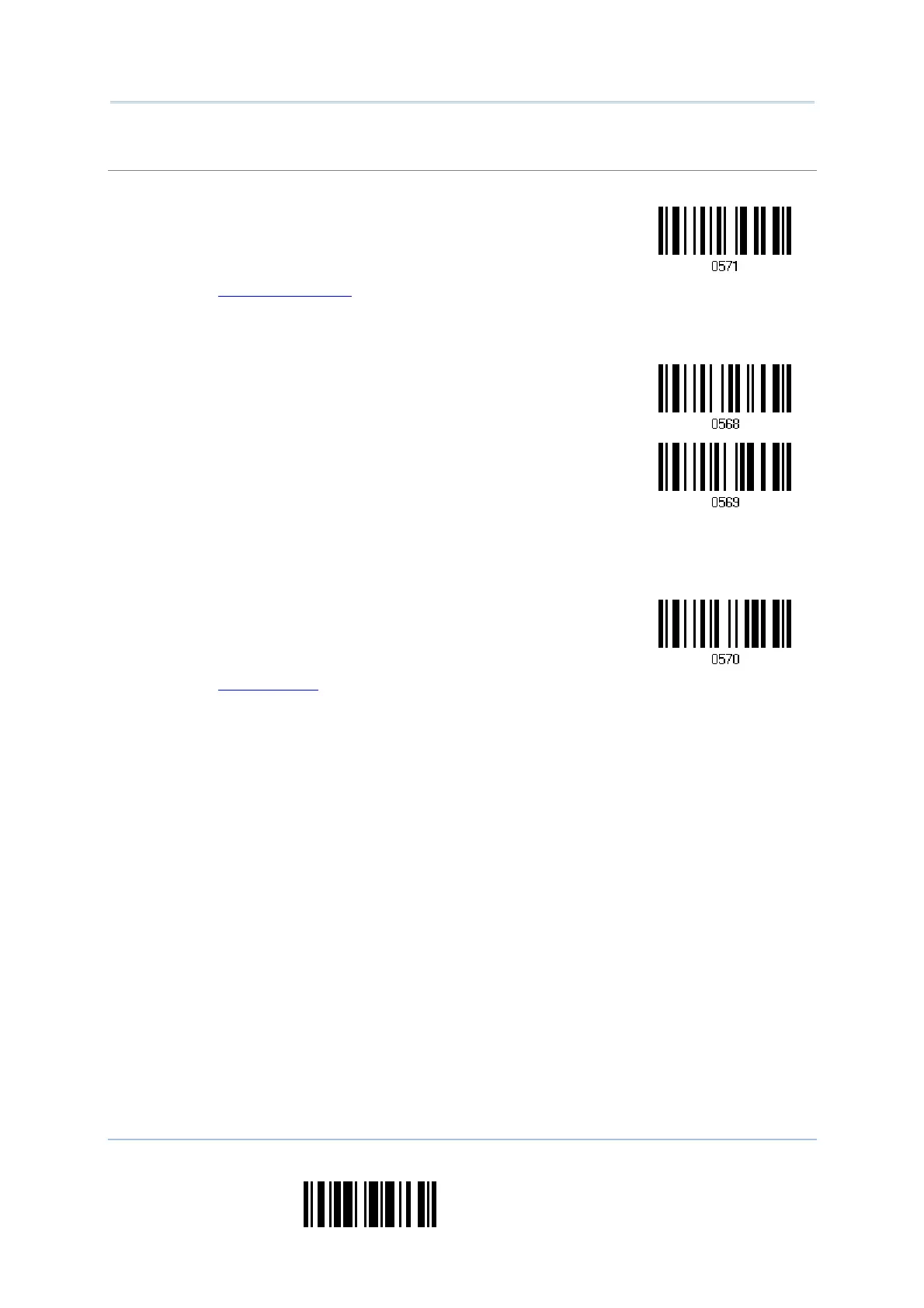

Field 5 Setting
1. Read the barcode below to divide field 5 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 5…
2. Read the “Hexadecimal Value” barcode on page 128 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 5 by length.
D
ivide Field 5
by Length
2. Read the “Decimal Value” barcode on page 127 for the desired field length.
3. Read the “Validate” barcode to complete this setting.

CipherLab 1100 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Light levels (direct sunlight)	5 - 95 lx
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Input voltage	5 V
Power consumption (standby)	0.06 W
Power consumption (typical)	0.19 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	74 mm
Weight	165 g
