Enter Setup
1000/1090+/1100/1105 Barcode Scanner User Guide
LIST THE CURRENT SETTINGS
The current settings of all scanner parameters can be sent, via Keyboard Wedge, RS-232,
USB HID or Virtual COM, to the host computer for user inspection. The listing includes
pages as shown below. You can select the page of interest by having the scanner read
the “List Page x” barcode. The scanner will respond with two beeps (high-low tone) and
send the selected page to the host immediately.

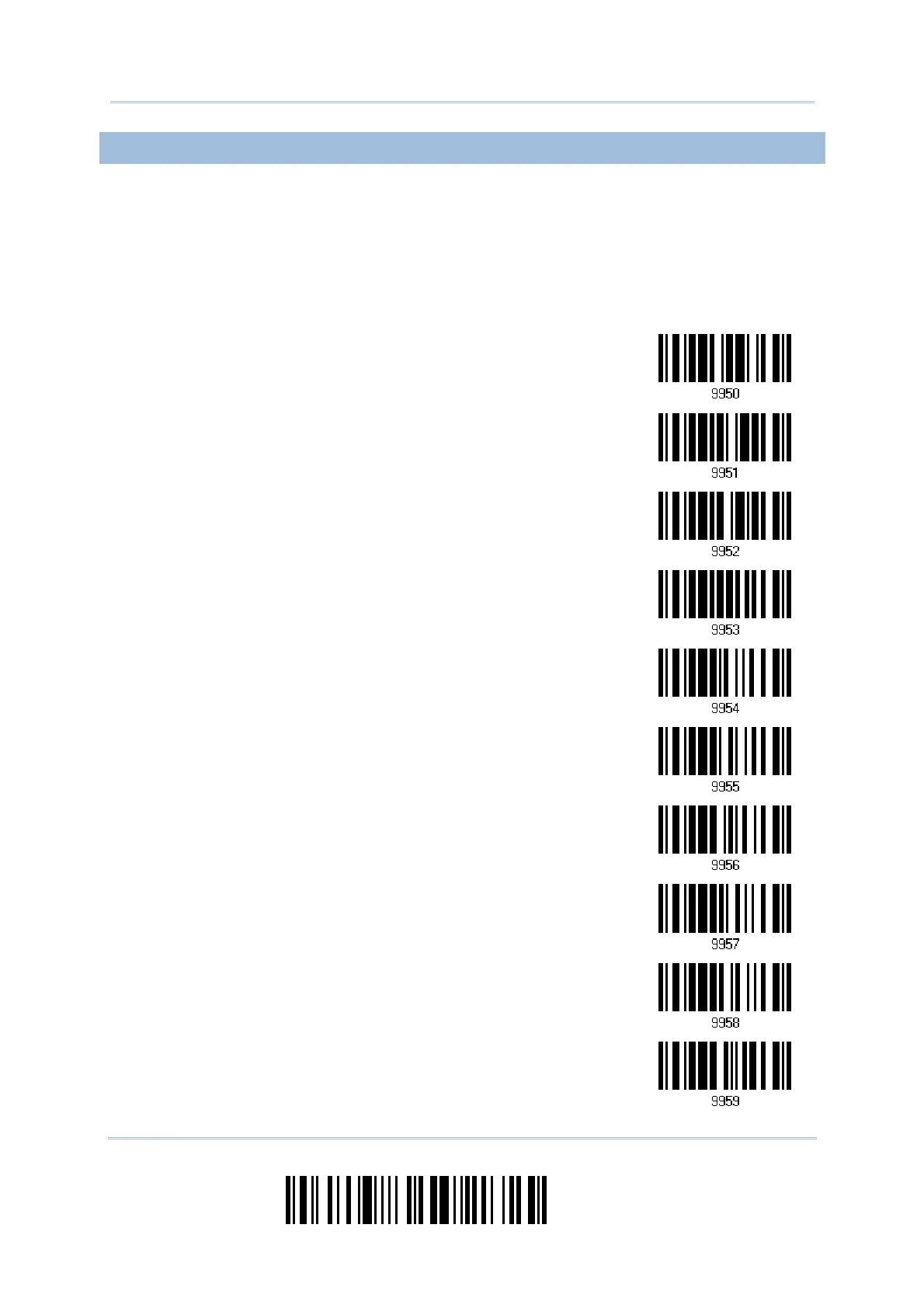

List settings regarding Interface, Buzzer, and
Other Scanner Parameters
List Page 1
List settings regarding Prefix, Suffix, and Length
Code Setting
List Page 2
List settings regarding Code ID
List Page 3
List settings regarding: Readable Symbologies
List Page 4
List settings regarding Symbology Parameters
(1/3)
List Page 5
List settings regarding Symbology Parameters
(2/3)
List Page 6
List settings regarding Symbology Parameters
(3/3)
List Page 7
List settings regarding Editing Format 1
List Page 8
List settings regarding Editing Format 2
List Page 9
List settings regarding Editing Format 3
List Page 10

CipherLab 1100 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Light levels (direct sunlight)	5 - 95 lx
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Input voltage	5 V
Power consumption (standby)	0.06 W
Power consumption (typical)	0.19 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	74 mm
Weight	165 g
