Enter Setup
1000/1090+/1100/1105 Barcode Scanner User Guide

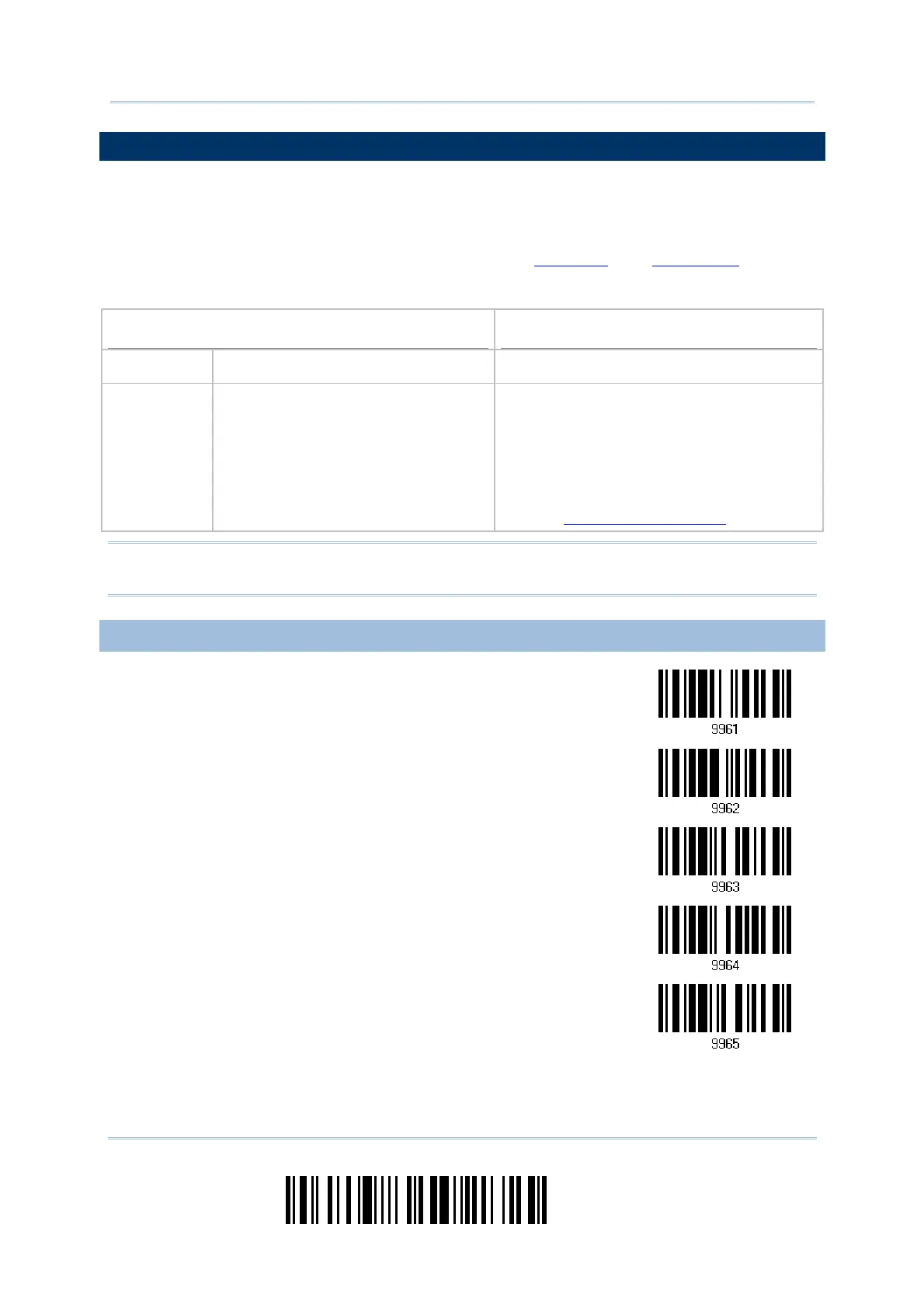

4.3 CODE ID
Up to two characters for Code ID can be configured for each symbology. To make the
Code ID configuration easier, the scanner provides five pre-defined Code ID sets that you
can select one and make necessary changes on it.
 If "Keyboard Wedge" is configured for interface, Key Type and Key Status will then
become applicable. You may decide whether or not to apply Key Status when “Normal
Key” is selected for Key Type.
Key Type
Key Status
Scan Code Only 1 scan code value is allowed. N/A
Normal Key Up to 2 character strings are
allowed.
 Add Shift
 Add Left Ctrl
 Add Left Alt
 Add Right Ctrl
 Add Right Alt
Refer to
Keyboard Wedge Table.
Note: "]C1" is the Code ID of GS1-128 (EAN-128) barcodes; "]e0" is the default Code ID
of GS1 DataBar (RSS) barcodes.
4.3.1 SELECT PRE-DEFINED CODE ID
Apply Code ID Set 1
Apply Code ID Set 2
Apply Code ID Set 3
Apply Code ID Set 4
Apply Code ID Set 5

CipherLab 1100 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Light levels (direct sunlight)	5 - 95 lx
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Input voltage	5 V
Power consumption (standby)	0.06 W
Power consumption (typical)	0.19 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	74 mm
Weight	165 g
