CipherLab 1100 User Manual

8
Enter Setup
1000/1090+/1100/1105 Barcode Scanner User Guide

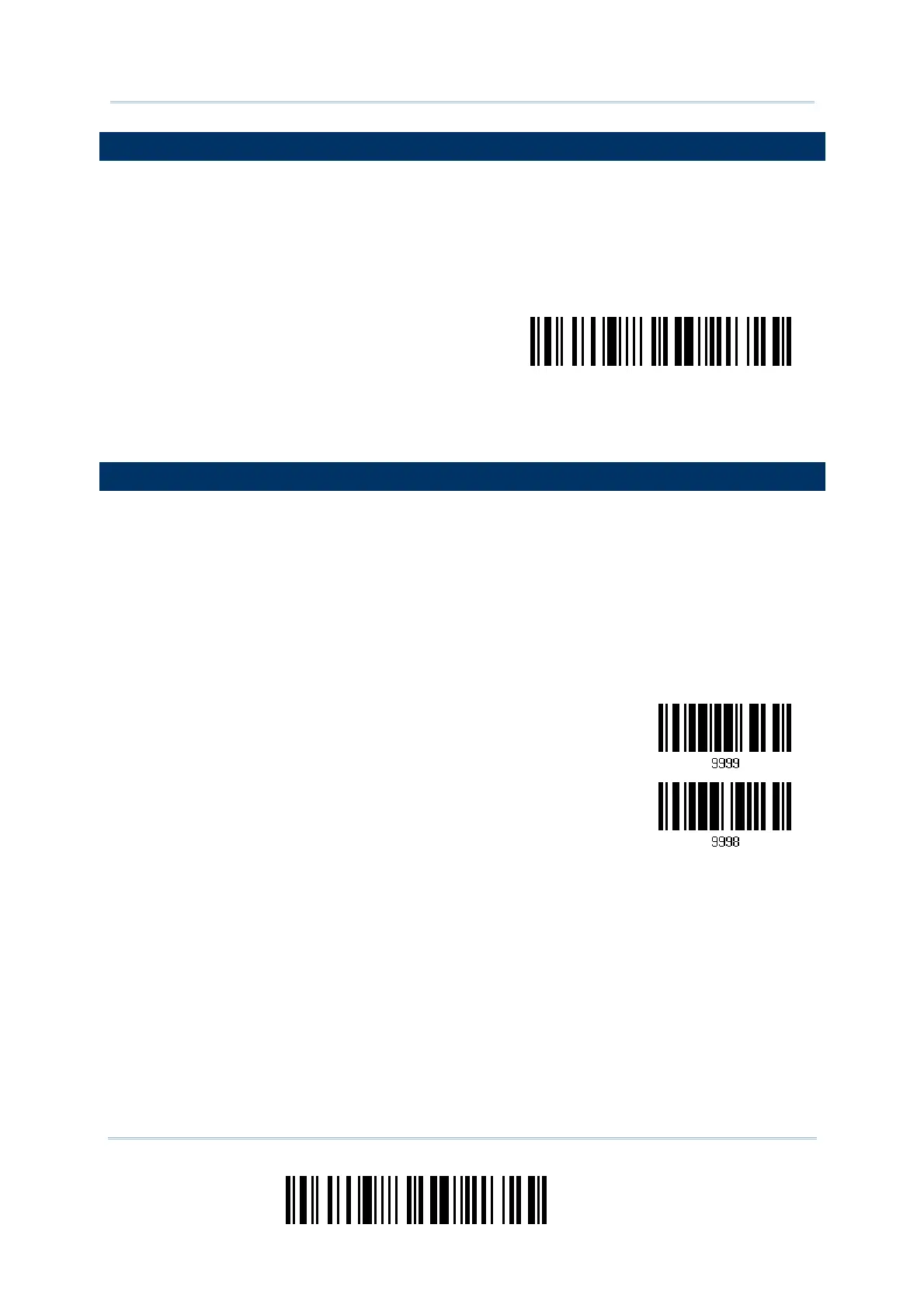

ENTER CONFIGURATION MODE
For the scanner to enter the configuration mode, you must have it read the "Enter Setup"
barcode, which can be located at the bottom of almost every even page of this manual.
 The scanner will respond with six beeps and its LED indicator will become solid green
after reading the barcode.
Enter Setup
For configuring scanner parameters, see “Read a Setup Barcode” below.
EXIT CONFIGURATION MODE
For the scanner to save settings and exit the configuration mode, you must have it read
the “Update” barcode, which can be located at the bottom of almost every odd page of
this manual. If you want to exit the configuration mode without saving any changes,
have the scanner read the “Abort” barcode instead.
 Just like reading the “Enter Setup” barcode, the scanner will respond with six beeps
and its LED indicator will go off after reading the barcode. Wait for a few seconds for
the scanner to restart itself.
Update
Abort

CipherLab 1100 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Light levels (direct sunlight)	5 - 95 lx
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Input voltage	5 V
Power consumption (standby)	0.06 W
Power consumption (typical)	0.19 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	74 mm
Weight	165 g
