Wiring (Continued)
Wiring to Power Source:
The Control Module uses a switch-mode power supply designed to automatically accept either 120VAC or
220VAC (no internal adjustments are needed).
The Control Module comes with an un-terminated Power Cord (AC Input) which must be connected to an
external timer, which will turn the pump and Control Module on and off together. Have the Control Module

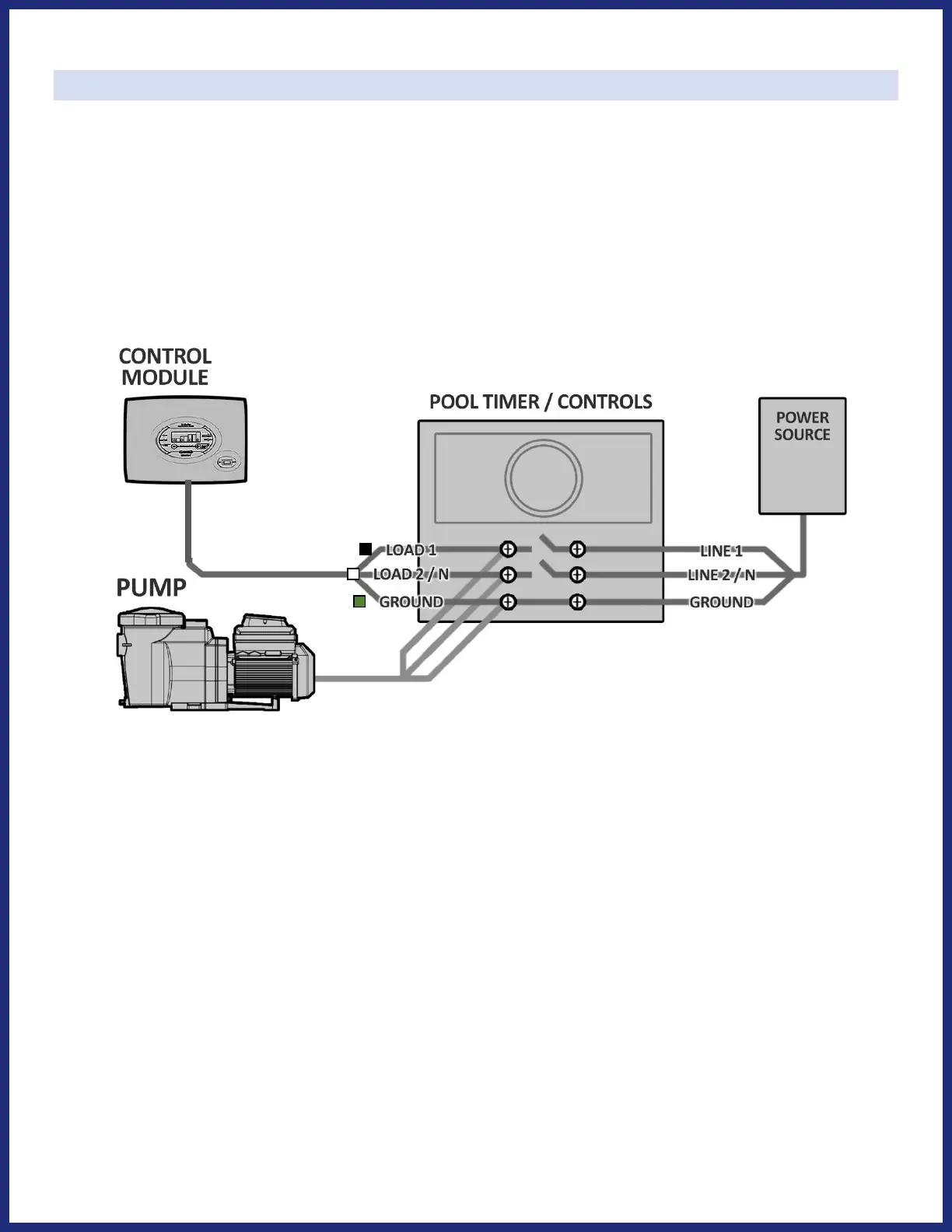

wired to the load side of the timer by a qualified person. See the following diagram for typical wiring.
In some parts of the United States and Canada, the Control Module must be connected to a circuit protected
by a Class A ground fault interrupter (GFI). Check local codes before connecting.
For use with Variable Speed Pumps: When used with variable-speed or other electronically controlled pumps,
use a timer to coordinate SJ run time with full-flow pump operation.
Power Protection Mechanism:
The Control Module has a power protection mechanism, an external Fuse Reset button located on underside
of unit. If the Control Module has input power, but displays no power, press the external Fuse Reset button.
At this point, this installation of your equipment is complete. If the water has not yet been prepared, then you
are ready to begin adding salt and balancing your water chemistry, see pages 6-8. Turn the Control Module to
the Power Off mode until enough salt has been dissolved in the water.
