The CVM-A1x00-FLEX version does not include an Aron connection mode.
Use the keys and to select the different options.
To conrm the selection, press the key .
5�7�6�- RATIO OF VOLTAGE TRANSFORMERS�

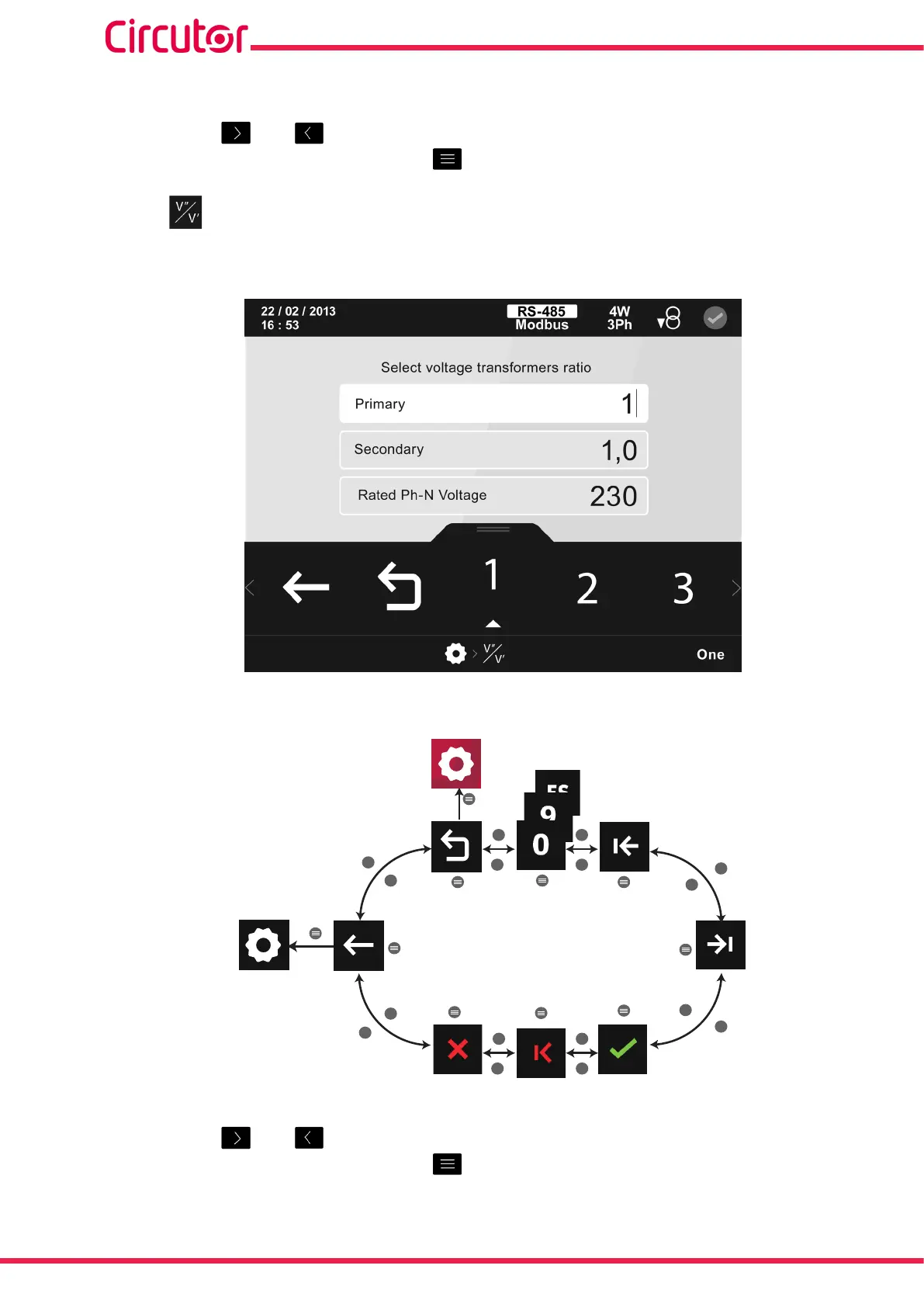

The voltage transformer ratio is selected on this screen, Figure 265.
Figure 265: Voltage transformer ratio conguration screen.
The parameter selected is indicated in white.
>
<
>
>
>
>
>
<
<
<
<
<
1
>
<
>
<
Conguration
values
Previous
Next
Conrm
and save
Delete
parameter
Back
Main
menu
Delete
character
Figure 266: Setup menu : Voltage transformer ratio
Use the keys and to select the different options.
To conrm the selection, press the key .
