14
ATM Line Card Installation and Configuration
OL-13004-01
Removing and Installing a Line Card
To ensure that there is adequate space for the ATM line card, tighten the captive installation screws on
the blank filler before you insert the line card.
Caution Use the captive screws to prevent accidental removal and provide proper grounding and
EMI shielding for the router.

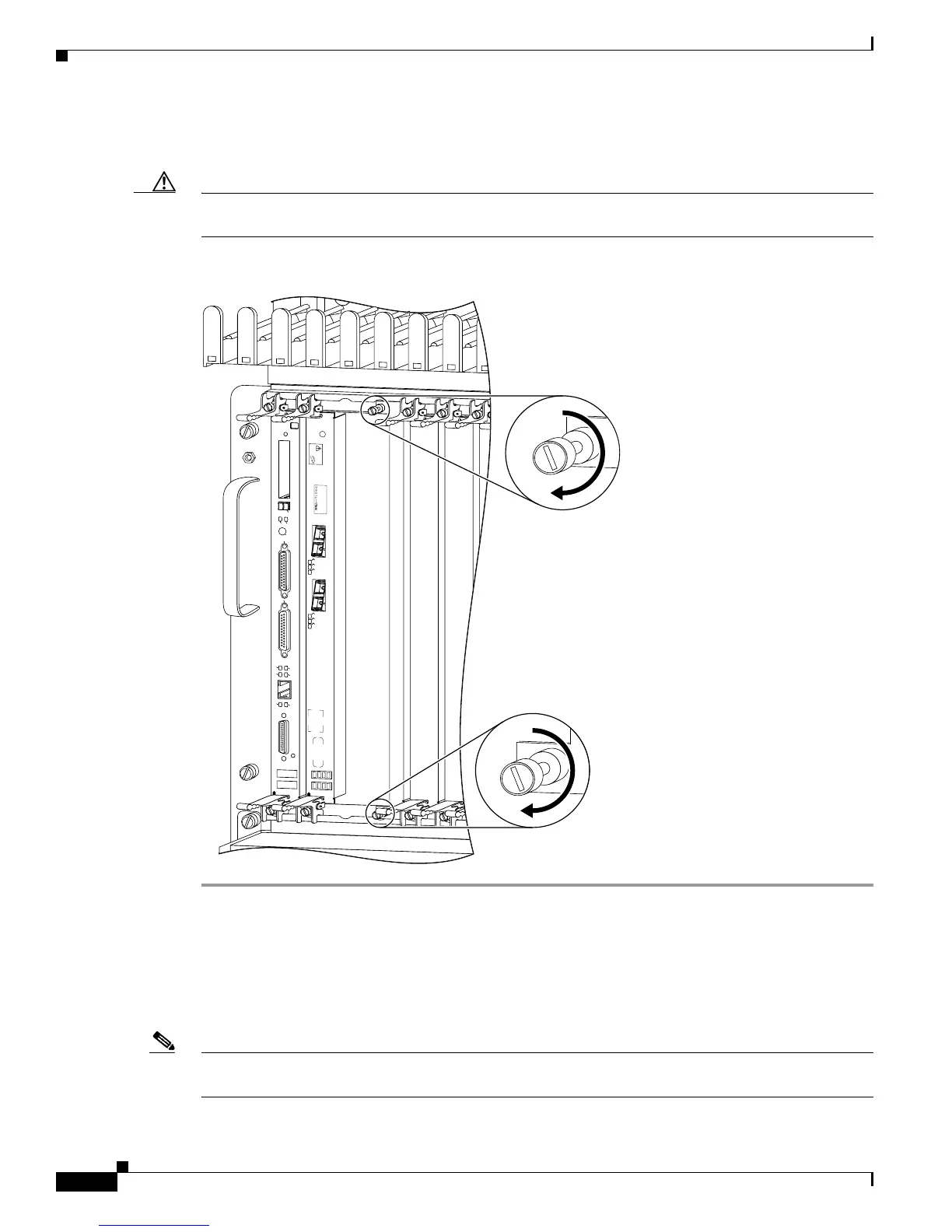

Figure 8 Fastening Captive Screw on Blank Filler
Installing a Line Card
A line card slides into almost any available line card slot and connects directly to the backplane. If you
install a new line card, you must first remove the line card blank from the available slot.
Note Refer to the installation and configuration guide for your router for information on line card slot types,
slot width, and slot location.
84679
SLOT-0
GIGABIT ROUTE PROCESSOR
SLOT-1
COLL
LINK
TX
RX
RJ-45
MII
RESET
AUX
CONSOLE
EJECT
A TX INNER RX OUTER B TX INNER RX OUTER
CLASS 1 LASER PRODUCT
PRODUCTO LASER DE CLASSE 1
PRODUIT LASER DE CLASSE 1
LASERPRODUKT DER KLASSE 1
CLEAN
CONNECTOR
WITH ALCOHOL
WIPES BEFORE
CONNECTING
ACTIVE
CARRIER
RX PKT
ACTIVE
CARRIER
2CHOC-12/DS3-IR-SC
