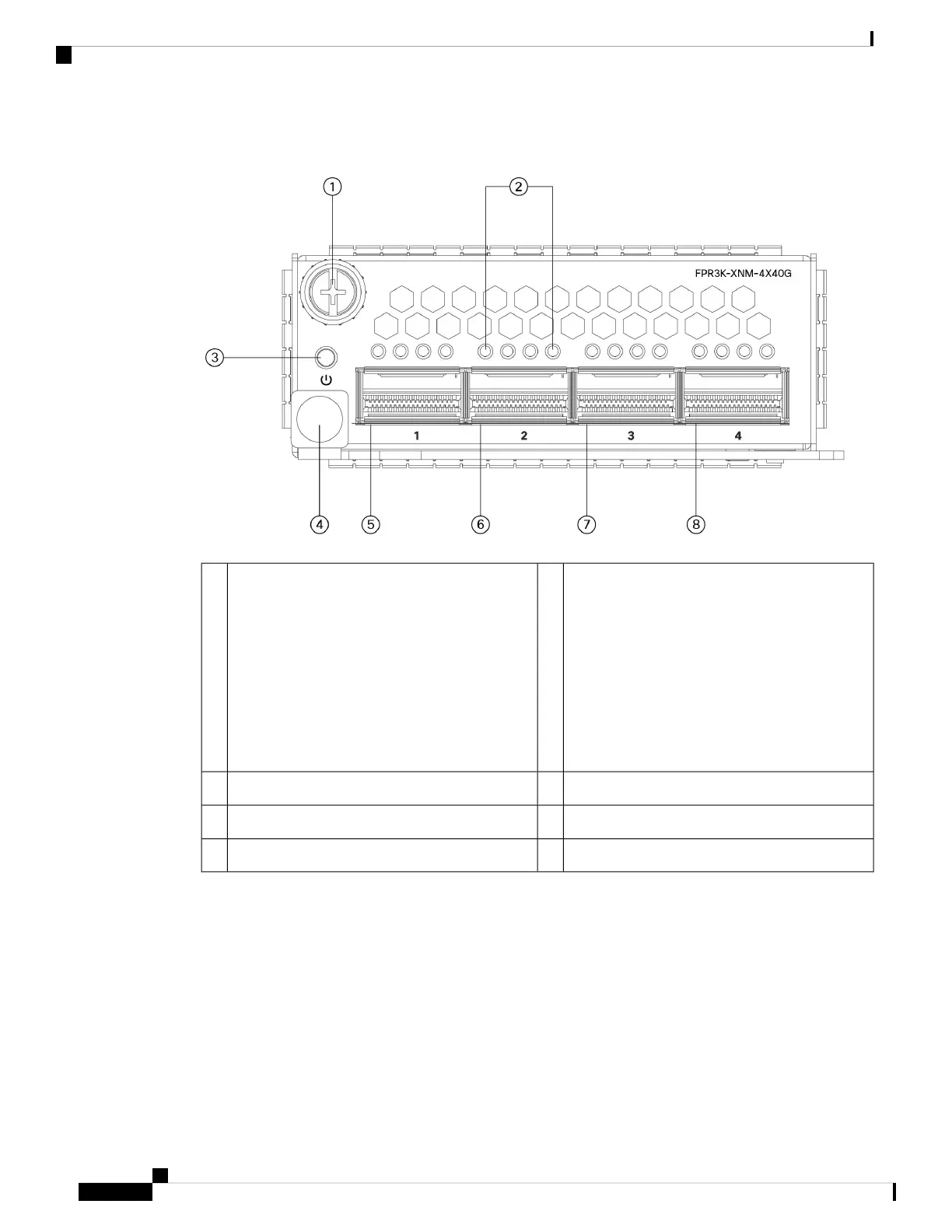

Figure 9: 40-Gb Network Module
Network activity LEDs
The up arrows represent the top ports and the
down arrows represent the bottom ports.
• Off—No SFP.
• Amber—No link or a network failure.
• Green—Link is up.
• Green, flashing—Network activity.
2Captive screw1
Ejector handle4Power on LED3
Ethernet 2/26Ethernet 2/15
Ethernet 2/48Ethernet 2/37
For More Information
• See 1/10/25-Gb Network Module, on page 15 for a description of the 1/10/25-Gb network module.
• See 1-Gb SX/10-Gb SR/10-Gb LR/25-Gb SR/25-Gb LR Network Module with Hardware Bypass,
on page 22 for a description of the 1/10/25-Gb network module.
• See 10/100/1000Base-T Network Module with Hardware Bypass, on page 20 for a description of
the 1-Gb network module.
• See Hardware Bypass Network Modules, on page 19 for a description of hardware bypass.
Cisco Secure Firewall 3110, 3120, 3130, and 3140 Hardware Installation Guide
18
Overview
40-Gb Network Module
