Power Status
• Off—Input power is not detected. If the AC
power cord is plugged in, and the LED on
the power supply is blinking green, standby
power is still on.
• Green, flashing—The system has detected
a power switch toggle event, and initiated
the shutdown sequence. If the power switch
is in the OFF position, the system powers
off after shutdown is completed. Do not
remove the AC or DC power source while
this LED is blinking so that the system has
time to perform a graceful shutdown.
• Amber—The system is powering up (before
the BIOS boots). This takes one to five
seconds at most.
• Green—The system is fully powered up.
12SSD 2 Status
• Off—The SSD is not present.
• Green—The SSD is present; no activity.
• Green, flashing—The SSD is active.
• Amber—The SSD has a problem or failure.
11
—Activity Status (Role of a high-availability pair)
• Off—The unit is not configured or enabled
in a high-availability pair.
• Green—The unit is in active mode.
• Amber—The unit is in standby mode.
13
Rear Panel
The following figure shows the rear panel of the Secure Firewall 3100.

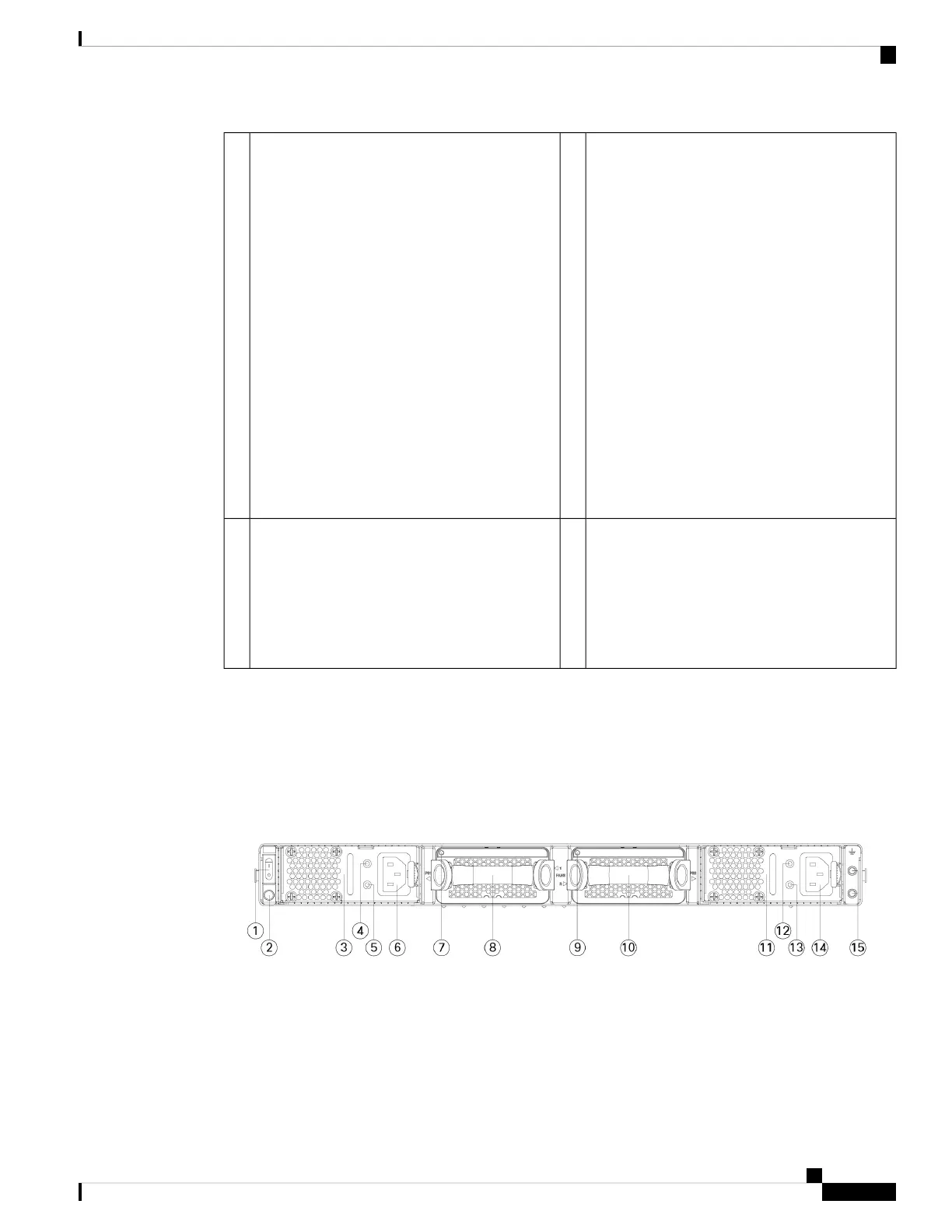

Figure 7: Secure Firewall 3100 Rear Panel
