Cisco 3110 Hardware Installation Guide

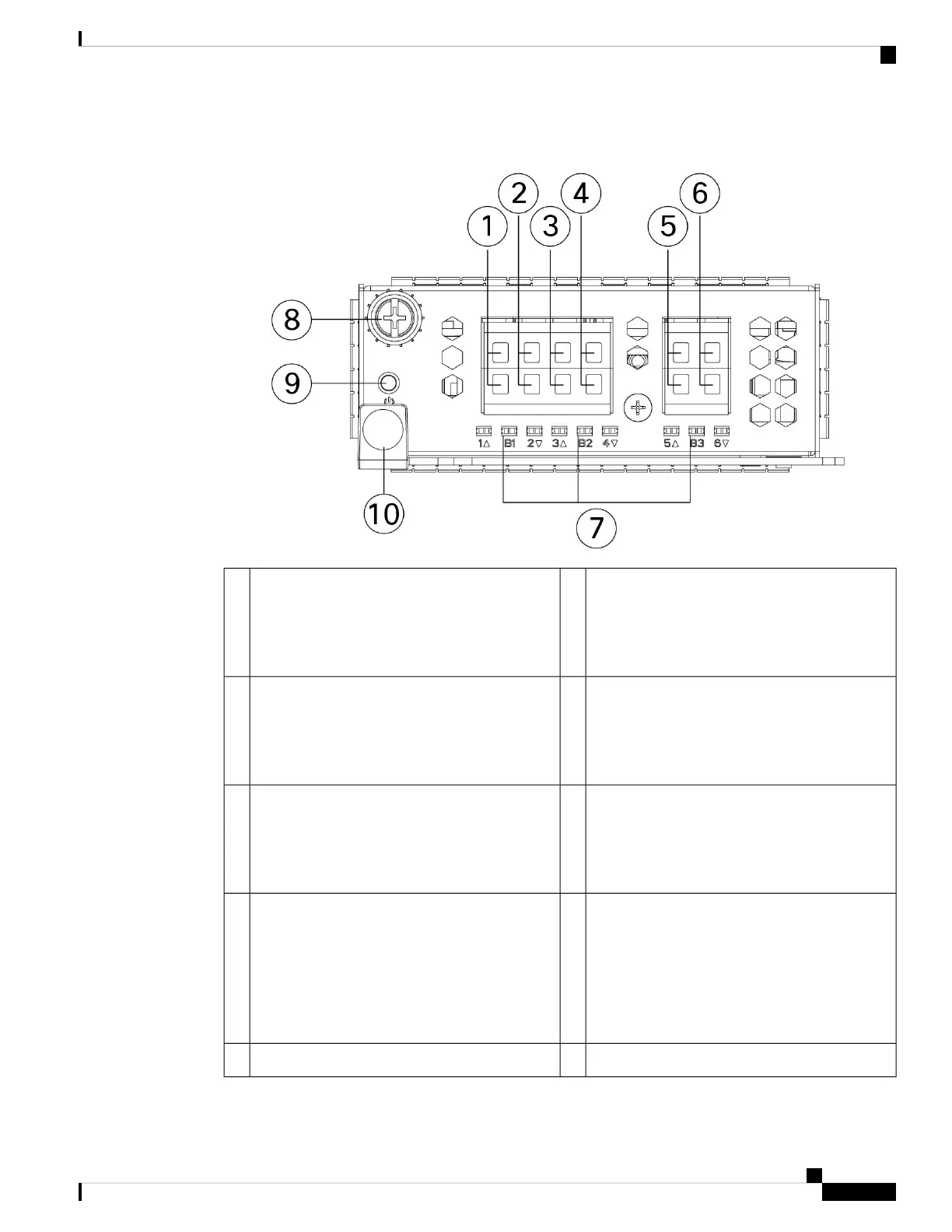

Figure 11: 1/10/25-Gb Network Module
Ethernet X/3 (top port)
Ethernet X/4 (bottom port)
Ports 3 and 4 are paired together to form a
hardware bypass pair.
2Ethernet X/1 (top port)
Ethernet X/2 (bottom port)
Ports 1 and 2 are paired together to form a
hardware bypass pair.
1
Ethernet X/7 (top port)
Ethernet X/8 (bottom port)
Ports 7 and 8 are paired together to form a
hardware bypass pair.
4Ethernet X/5 (top port)
Ethernet X/6 (bottom port)
Ports 5 and 6 are paired together to form a
hardware bypass pair.
3
Ethernet X/11 (top port)
Ethernet X/12 (bottom port)
Ports 11 and 12 are paired together to form a
hardware bypass pair.
6Ethernet X/9 (top port)
Ethernet X/10 (bottom port)
Ports 9 and 10 are paired together to form a
hardware bypass pair.
5
Captive screw8Bypass LEDs B1 through B3:
• Off—Bypass mode is disabled.
• Green—Port is in standby mode.
• Amber, flashing—Port is in hardware bypass
mode, failure event.
7
Handle ejector10Power LED9
