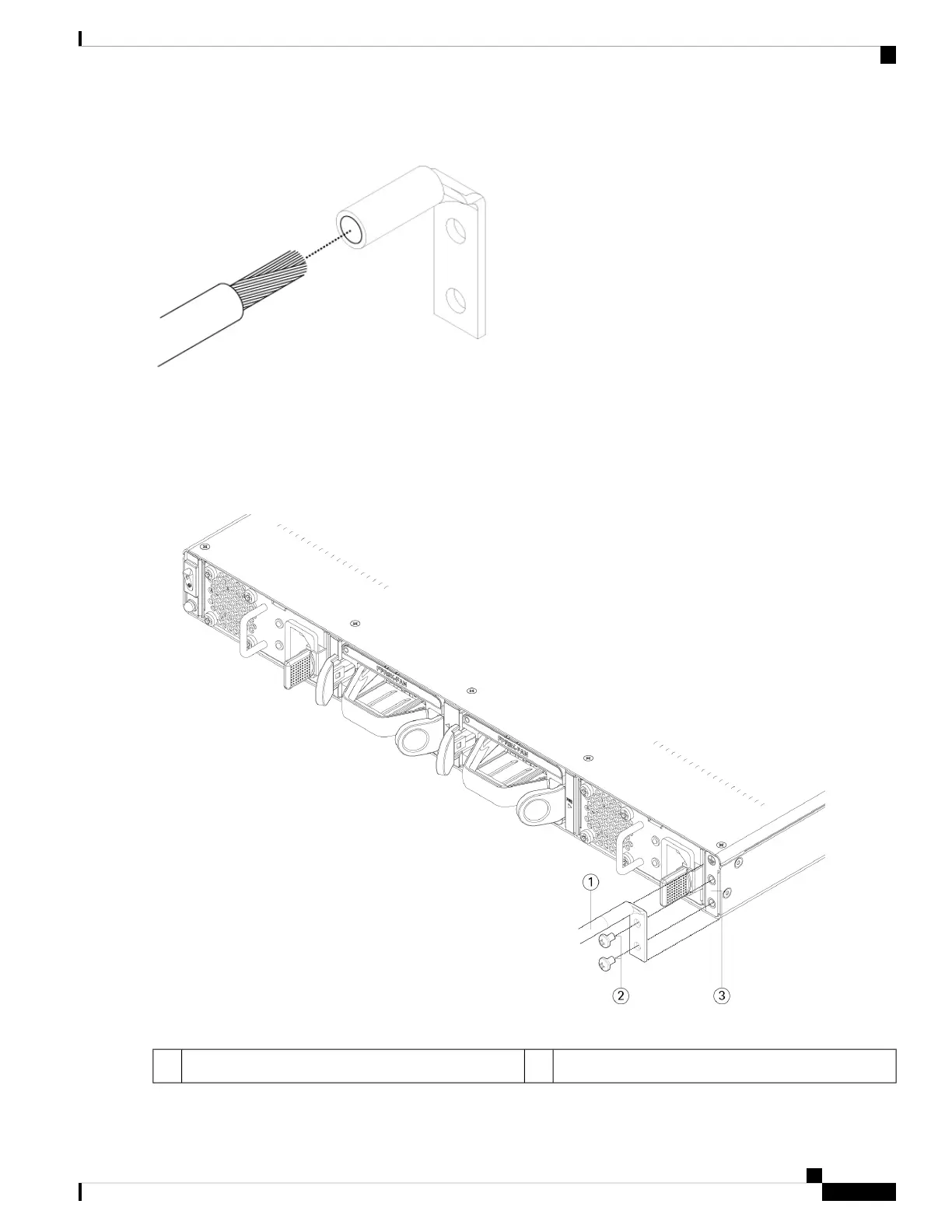

Figure 44: Insert the Cable into the Grounding Lug
Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the two screws
with washers through the holes in the grounding lug and into the grounding pad.
Figure 45: Attach the Grounding Lug
Two 10-32 x 0.38-inch screws2Grounding lug1
Cisco Secure Firewall 3110, 3120, 3130, and 3140 Hardware Installation Guide
63
Rack-Mount the Chassis
Ground the Chassis
