1-10

Cisco 3700 Series Routers Hardware Installation Guide

OL-2180-08

Chapter 1 Overview of Cisco 3700 Series Routers

Power Supply Options

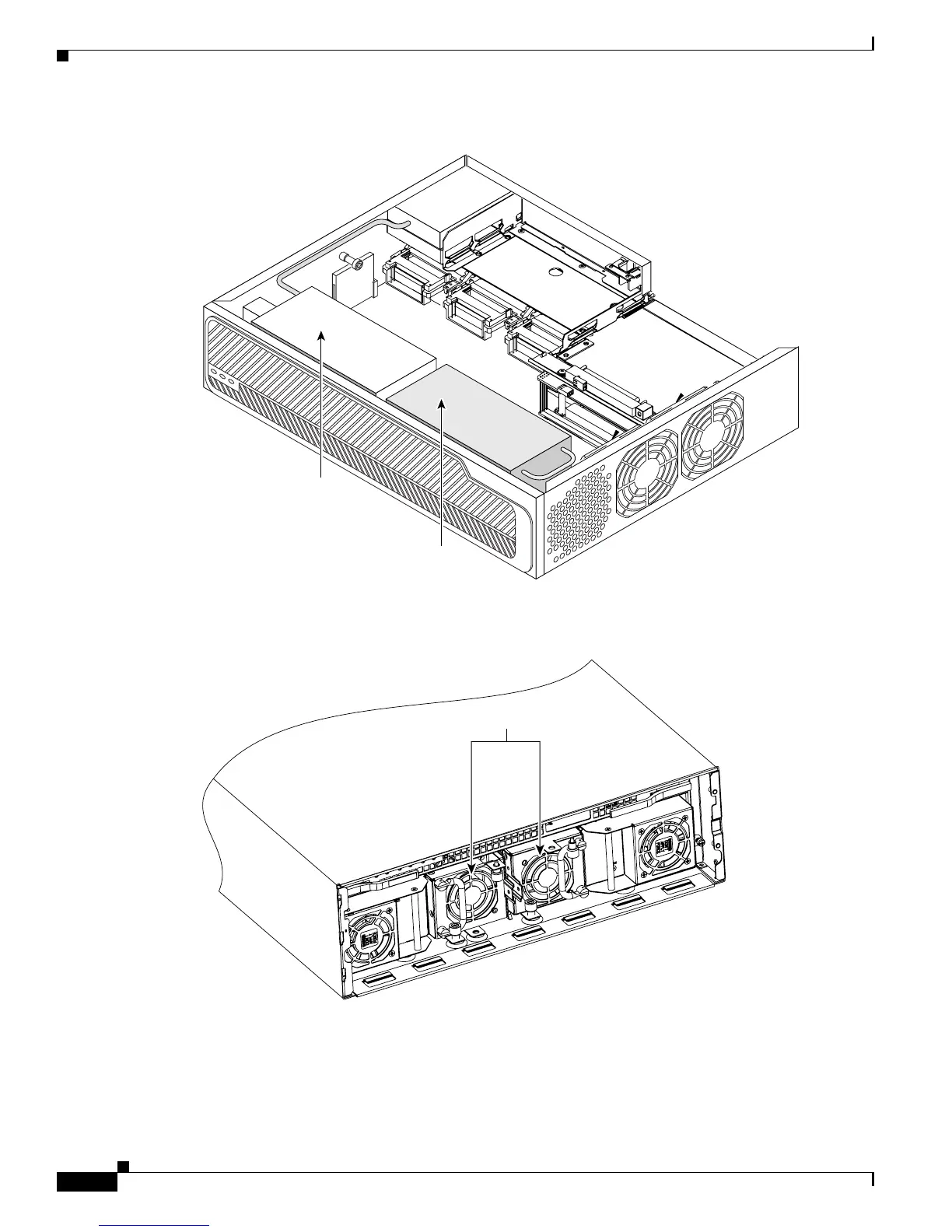

Figure 1-5 Cisco 3725 Router with Optional –48 V Power Module Installed

Figure 1-6 Cisco 3745 Router with Optional –48 V Power Modules Installed

72086

48V

power module

72085

48V power modules
