B-4
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Appendix B Connector and Cable Specifications
Connector Specifications
XENPAK Module Ports (Catalyst 3750G-16TD Switch)
The Catalyst 3750G-16TD switch uses XENPAK modules for 10-Gigabit fiber-optic connections to
networks. See the Catalyst 3750 release notes for a list of supported XENPAK modules. Fiber-optic
XENPAK modules use SC connectors, as shown in Figure B-6.

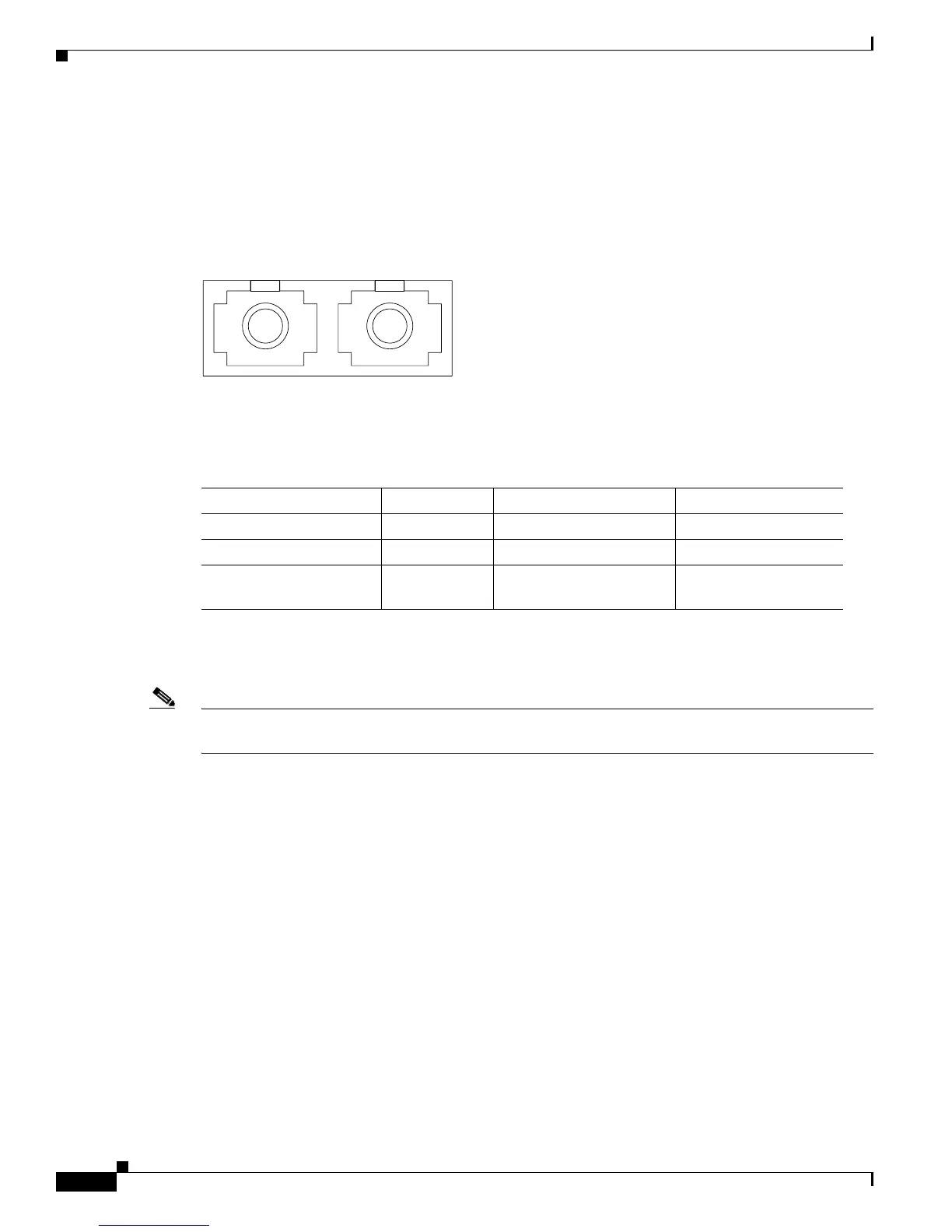

Figure B-6 Fiber-Optic XENPAK Module SC Connector
Table B-2 lists the XENPAK modules that the Catalyst 3750G-16TD switch supports.
For more information about XENPAK modules, see your XENPAK module documentation.
Note The 10-Gigabit Ethernet XENPAK modules are referred to as 10-Gigabit Ethernet module ports in the
software documentation.
Console Port
The console port uses an 8-pin RJ-45 connector, which is described in Table B-4 and Table B-5. The
supplied RJ-45-to-DB-9 adapter cable is used to connect the console port of the switch to a console PC.
You need to provide a RJ-45-to-DB-25 female DTE adapter if you want to connect the switch console
port to a terminal. You can order a kit (part number ACS-DSBUASYN=) containing that adapter from
Cisco. For console port and adapter pinout information, see Table B-4 and Table B-5.
H8707
Tx Rx
Table B-2 Catalyst 3750G-16TD Switch Supported XENPAK Modules
XENPAK Wavelength Connector and Cable Type Maximum Distance
C3-XENPAK-10GB-LR 1310 nm SC, SMF 6.2 miles (10 km)
XENPAK-10GB-ER 1550 nm SC, SMF 24.85 miles (40 km)
C3-XENPAK-10GB-SR 850 nm SC; FDDI
1
grade MMF
SC; OM3 MMF
1. FDDI = fiber distributed data interface
85.3 feet (26 m)
984.25 feet (300 m)
