Cisco 3750G-12S - Catalyst Switch - Stackable User Manual

2-10
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Planning the Stack

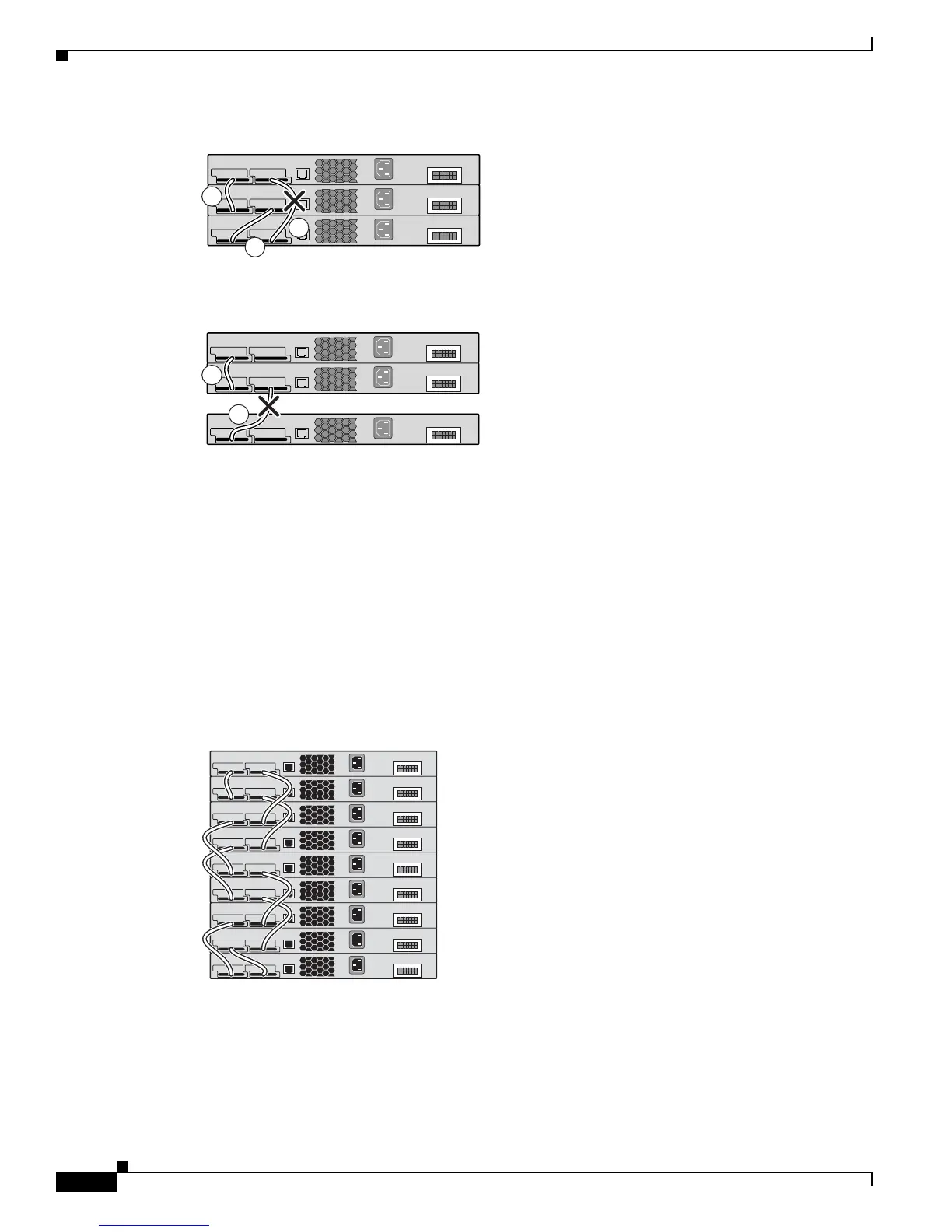

Figure 2-3 Example of a Stack with a Failover Condition
Figure 2-4 Example of a Partitioned Stack with a Failover Condition
Recommended Cabling Configurations
This section describes the recommended cabling configurations for stacking the switches.
Stacking Switches in Vertical Racks or on a Table
Figure 2-5 is an example of a recommended configuration using the supplied 0.5-meter StackWise cable.
In this example, the switches are stacked in a vertical rack or on a table. This configuration provides
redundant connections.
Figure 2-5 Stacking the Switches in a Vertical Rack or on a Table Using the 0.5-meter
StackWise Cable
The configuration examples in Figure 2-6 use the 3-meter StackWise cable in addition to the supplied
0.5-meter StackWise cable. This configuration also provides redundant connections.
86822
A
B
C
86824
A
B
86586
