2-11
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Installing the Switch

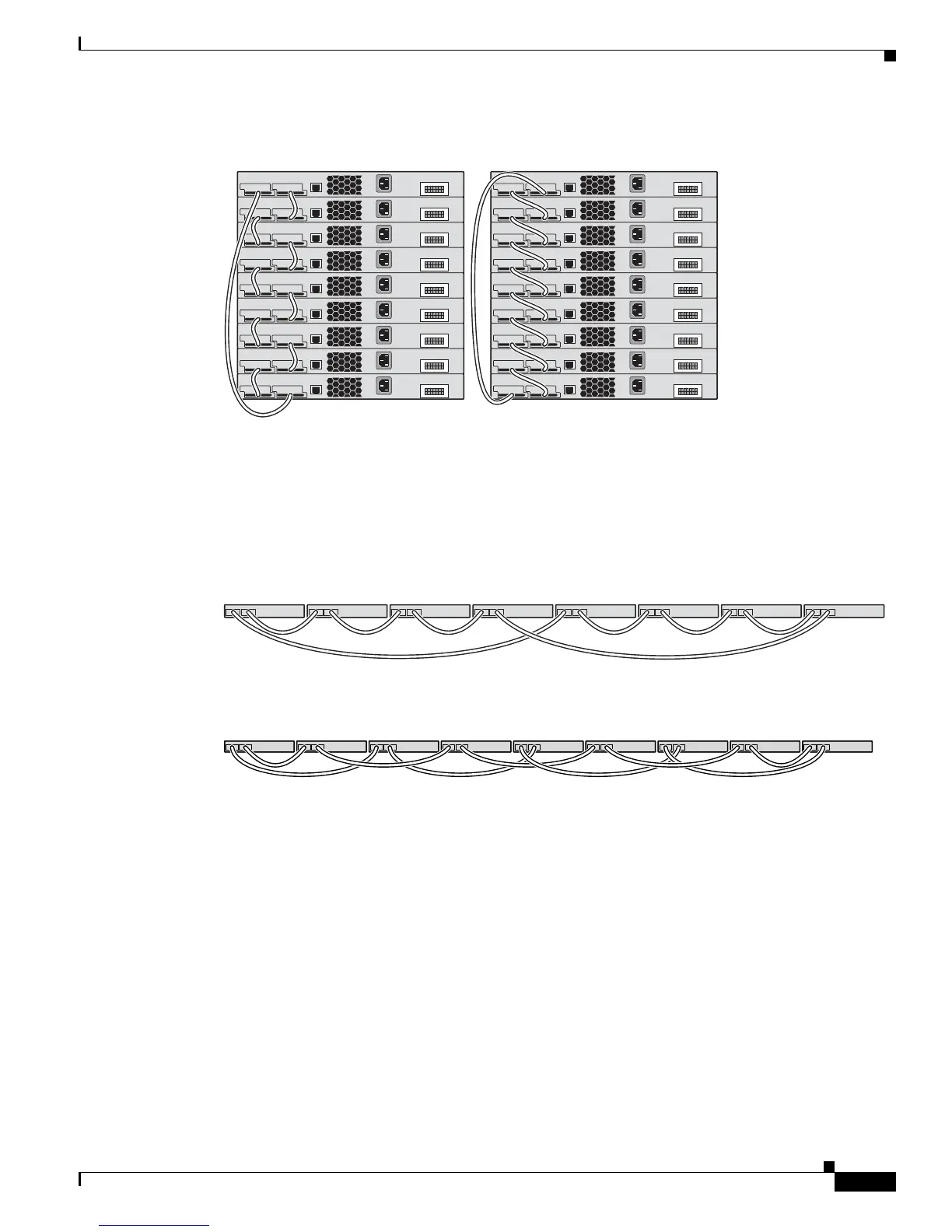

Figure 2-6 Stacking the Catalyst 3750 Switches in a Vertical Rack or on a Table Using 0.5-meter
and 3-meter StackWise Cables
Side-by-Side Mounting in a Rack or on a Wall
Figure 2-7 and Figure 2-8 are examples of recommended configurations where the switches are rack- or
wall-mounted side-by-side. Use the 1-meter and 3-meter StackWise cables to connect the switches.
These configuration provide redundant connections.
Figure 2-7 Stacking up to Eight Switches in a Side-by-Side Mounting Configuration
Figure 2-8 Stacking Nine Switches in a Side-by-Side Mounting Configuration 90532
Installing the Switch
This section describes these installation procedures:
• Rack-Mounting, page 2-12
• Wall-Mounting, page 2-27
• Table- or Shelf-Mounting, page 2-30
86585
86825
