Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 1 Product Overview
10/100 and 10/100/1000 Ports

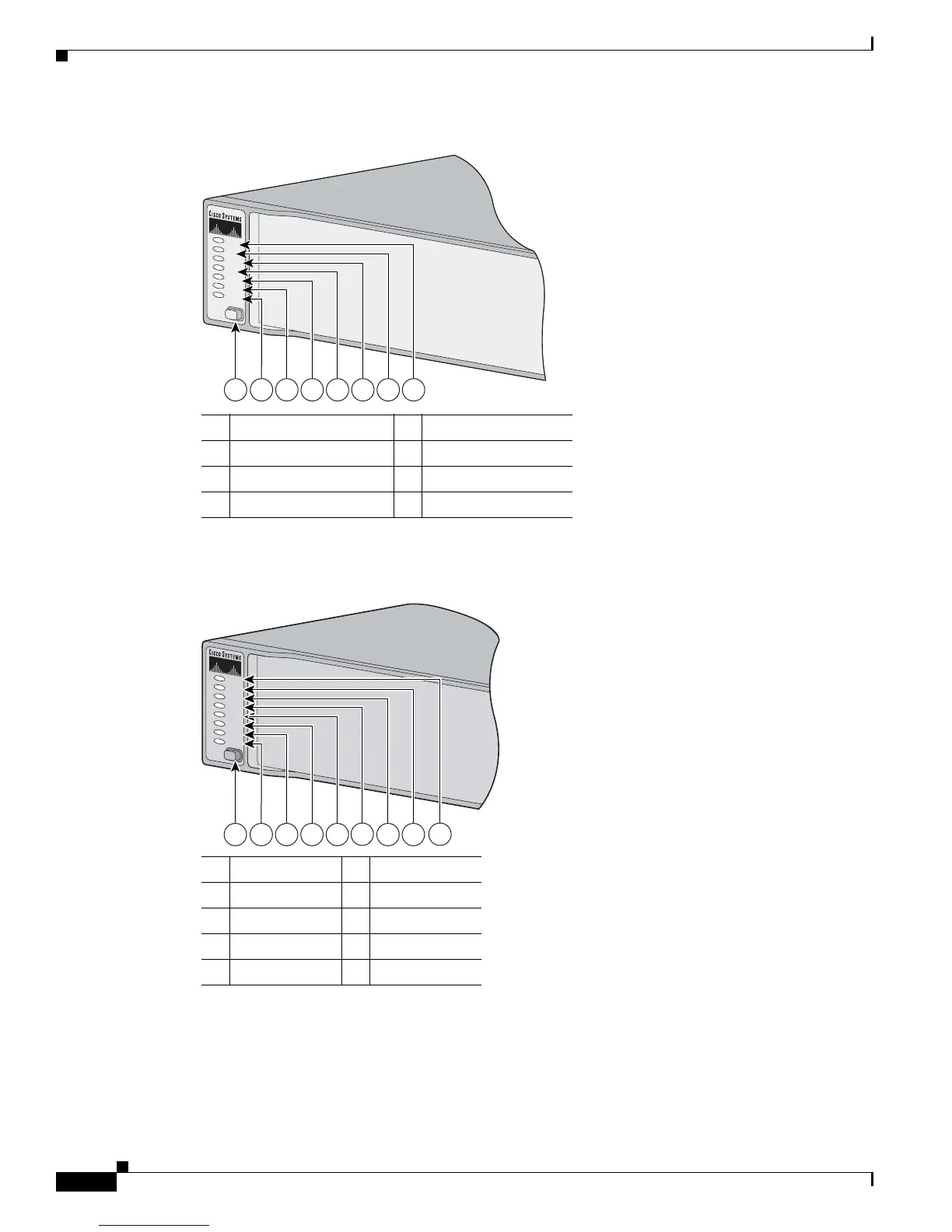

Figure 1-16 Switch LEDs (No PoE)
Figure 1-17 Switch LEDs (PoE)
1 Mode button 5 Status LED
2 Stack LED 6 Master LED
3 Speed LED 7 RPS LED
1
1. The RPS LED is not used on the Catalyst 3750G-12S-SD switch.
4 Duplex LED 8 System LED
MODE
RPS
STAT
DUPLX
SPEED
MASTR
STACK
SYST
132966
21 3 4 6 7 85
1 Mode button 6 Status LED
2 PoE LED 7 Master LED
3 Stack LED 8 RPS LED
4 Speed LED 9 System LED
5 Duplex LED
RPS
SYST
MASTR
STAT
DUPLX
SPEED
STACK
PoE
MODE
2 3 4 5 7 81
6 9
104062
