B-6
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
Two Twisted-Pair Cable Pinouts

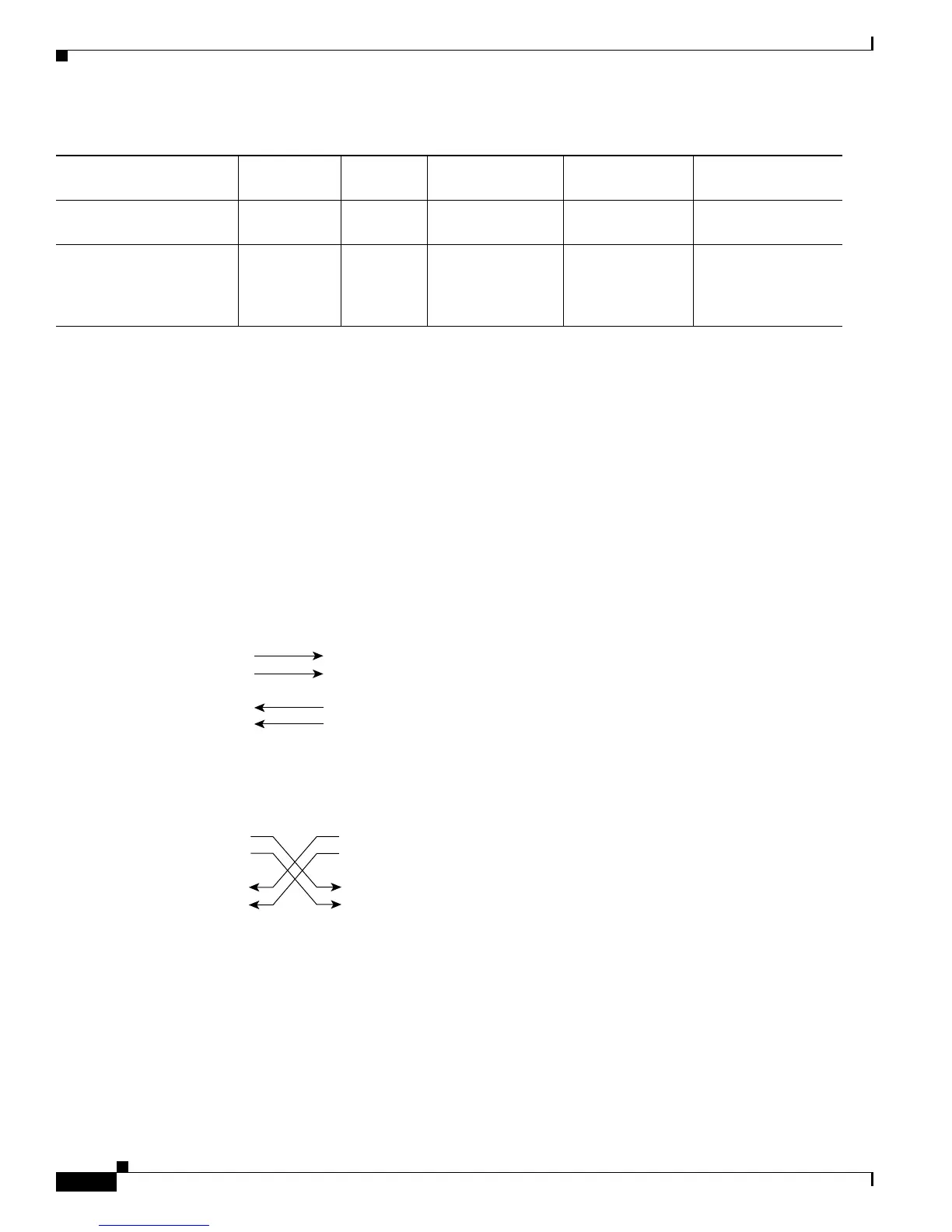

Figure B-7 and Figure B-8 show the schematics of two twisted-pair cables for 10/100 ports.
Figure B-7 Two Twisted-Pair Straight-Through Cable Schematic
Figure B-8 Two Twisted-Pair Crossover Cable Schematic
1000BASE-ZX
(GLC-ZX-SM
1550 SMF G.652
2
— 43.4 to 62 miles
(70 to 100 km)
4
CWDM 1470, 1490,
1510, 1530,
1550, 1570,
1590, 1610
SMF G.652
2
— 62 miles (100 km)
1. Modal bandwidth applies only to multimode fiber.
2. A mode-field diameter/cladding diameter = 9 micrometers/125 micrometers
3. A mode-conditioning patch cord is required. Using an ordinary patch cord with MMF, 1000BASE-LX/LH SFP modules, and a short link distance
can cause transceiver saturation, resulting in an elevated bit error rate (BER). When using the LX/LH SFP module with 62.5-micron diameter MMF,
you must also install a mode-conditioning patch cord between the SFP module and the MMF cable on both the sending and receiving ends of the
link. The mode-conditioning patch cord is required for link distances greater than 984 feet (300 m).
4. 1000BASE-ZX SFP modules can send data up to 62 miles (100 km) by using dispersion-shifted SMF or low-attenuation SMF; the distance depends
on the fiber quality, the number of splices, and the connectors.
Table B-3 Fiber-Optic SFP Module Port Cabling Specifications (continued)
SFP Module
Wavelength
(nanometers) Fiber Type
Core Size/Cladding
Size (micron)
Modal Bandwidth
(MHz/km)
1
Cable Distance
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579
