C-3
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Appendix C Connecting to DC Power
Connecting to DC Power
Step 4 Using a Panduit crimping tool, crimp the ground lug to the 6-gauge wire, as shown in Figure C-2.

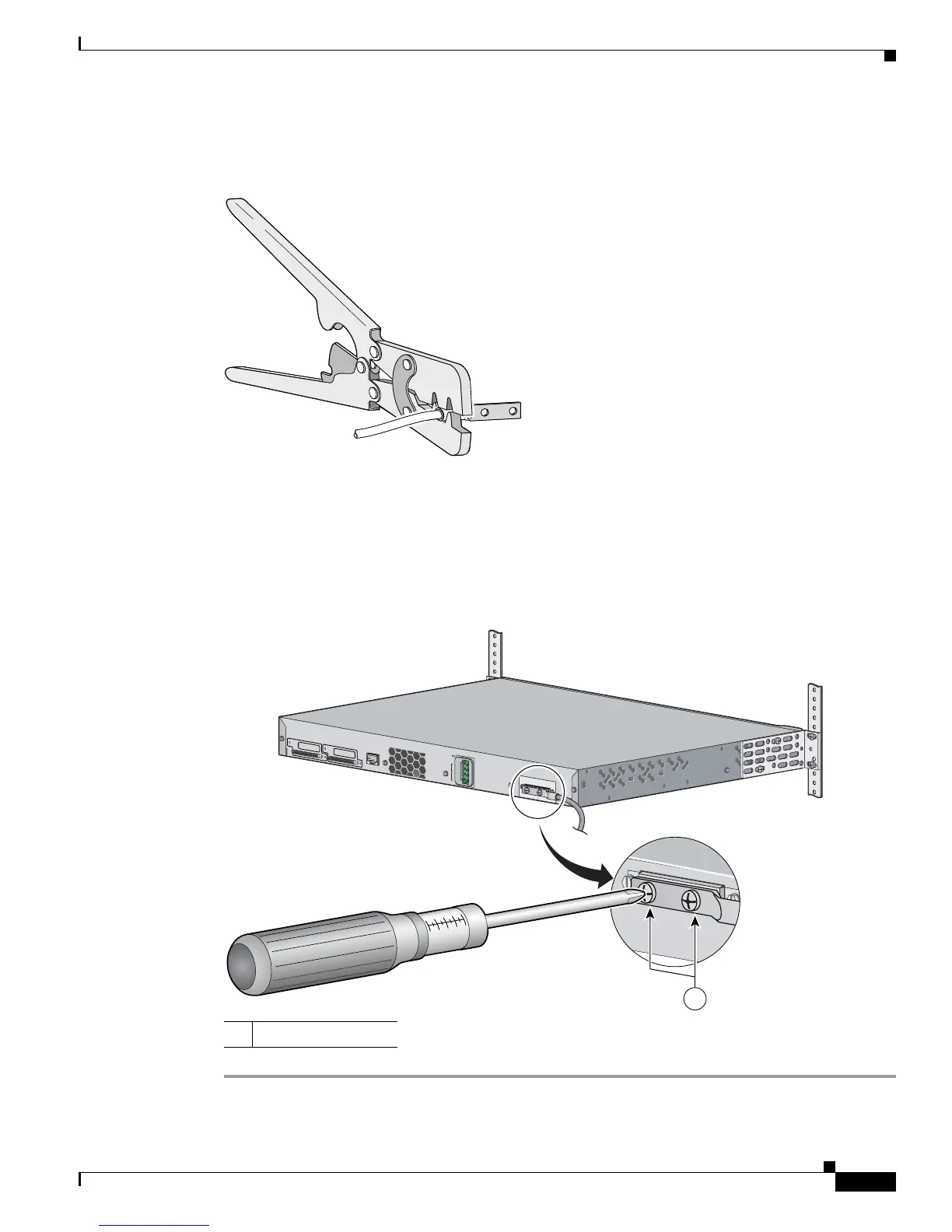

Figure C-2 Crimping the Ground Lug
Step 5 Use the two number-10-32 screws to attach the ground lug and wire assembly to the switch rear panel
ground connector, as shown in Figure C-3.
Step 6 Using a ratcheting torque screwdriver, torque each ground-lug screw to 15 lbf-in. (240 ozf-in.)
Use either the front ground connector or the rear ground connector. You cannot use both at the same time.
Figure C-3 Torquing Ground-Lug Screws
1 Torque to 15 lbf-in.
CONSOLE
STACK 1
STACK 2
132635
1
–
36 - 72V
3.0 - 1.5A
A
–
+
B
+
