Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 1 Product Overview
Rear Panel Description

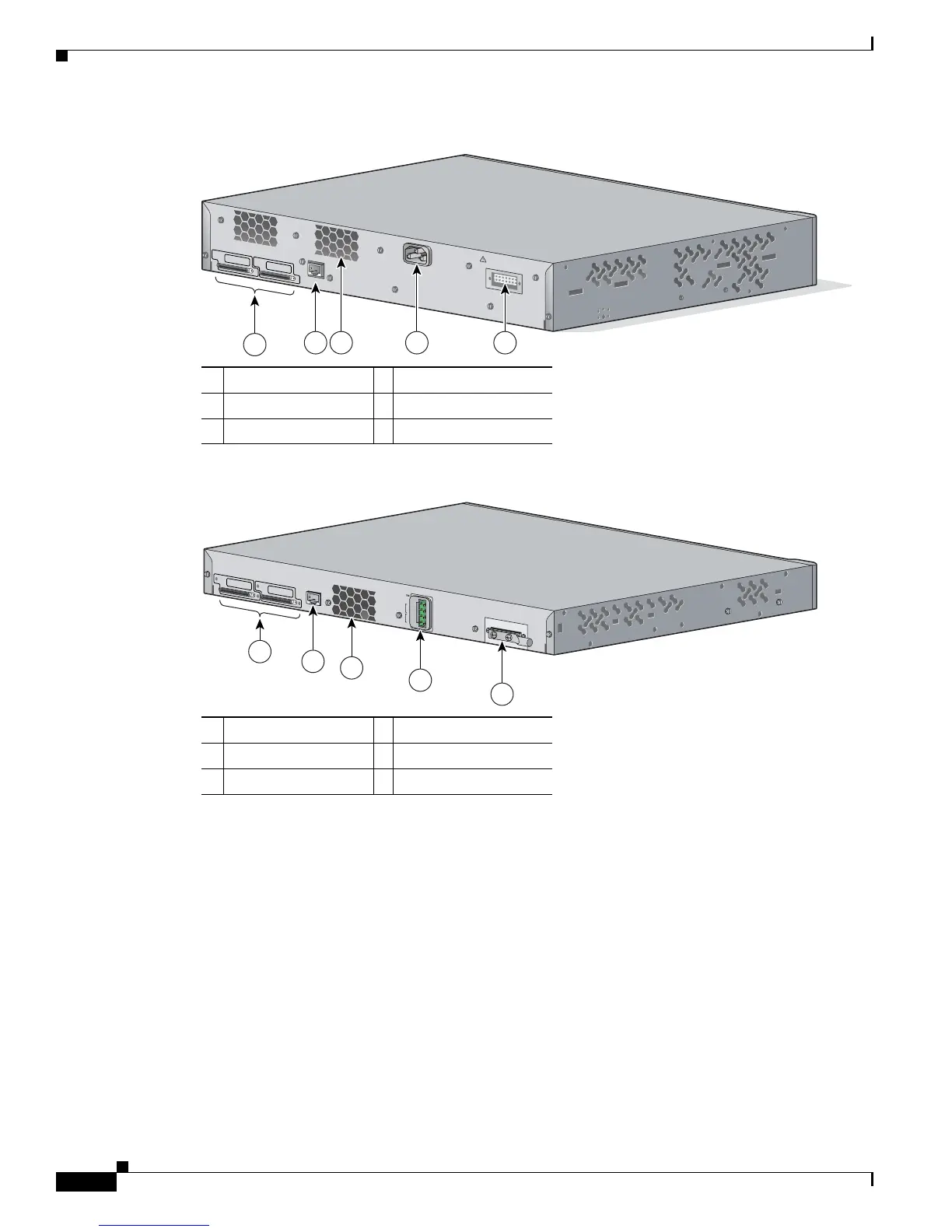

Figure 1-22 Catalyst 3750G-24TS Switch
Figure 1-23 Catalyst 3750G-12S-SD Switch Rear Panel
1 StackWise ports 4 AC power connector
2 RJ-45 console port 5 RPS connector
3 Fan exhaust
CONSOLE
STACK 1
STACK 2
DC INPUTS FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL
+12v @17a
1
2 3 4 5
86547
1 StackWise ports 4 DC power connector
2 RJ-45 console port 5 Ground lug bracket
3 Fan exhaust
132634
CONSOLE
STACK 1
STACK 2
1
2
3
5
4
–
36 - 72V
3.0 - 1.5A
A
–
+
B
+
