Chapter 2 Switch Installation
Installing the Switch

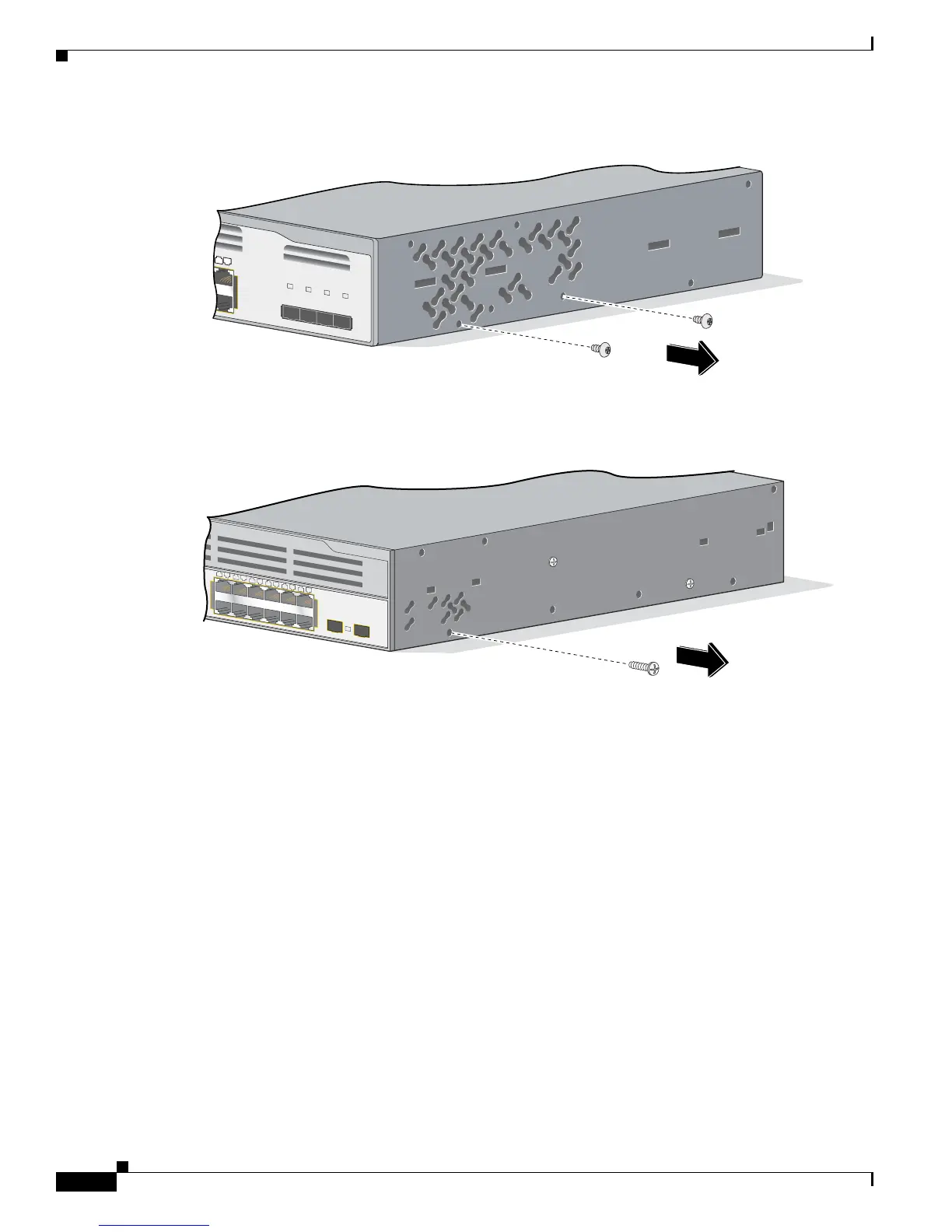

Figure 2-12 Removing Screws from the 3750G-24TS Switch
Figure 2-13 Removing Screws from the 3750G-24WS-S25 and the 3750G-24WS-S50 Switch
Attaching Brackets to the Catalyst 3750G-24TS Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch or a 24-inch rack.
Figure 2-14 through Figure 2-19 show how to attach each type bracket to one side of the switch. Follow
the same steps to attach the second bracket to the opposite side.
Catalyst 3750
SERIES
23X
24X
23
24
25
26
27
28
86820
Catalyst 3750G
SERIES
PoE-24
Wireless LAN Controller
13X
14X
23X
24X
13
14
15
16
17
18
19
20
21
22
23
24
25 26
141729
