2-17
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Installing the Switch

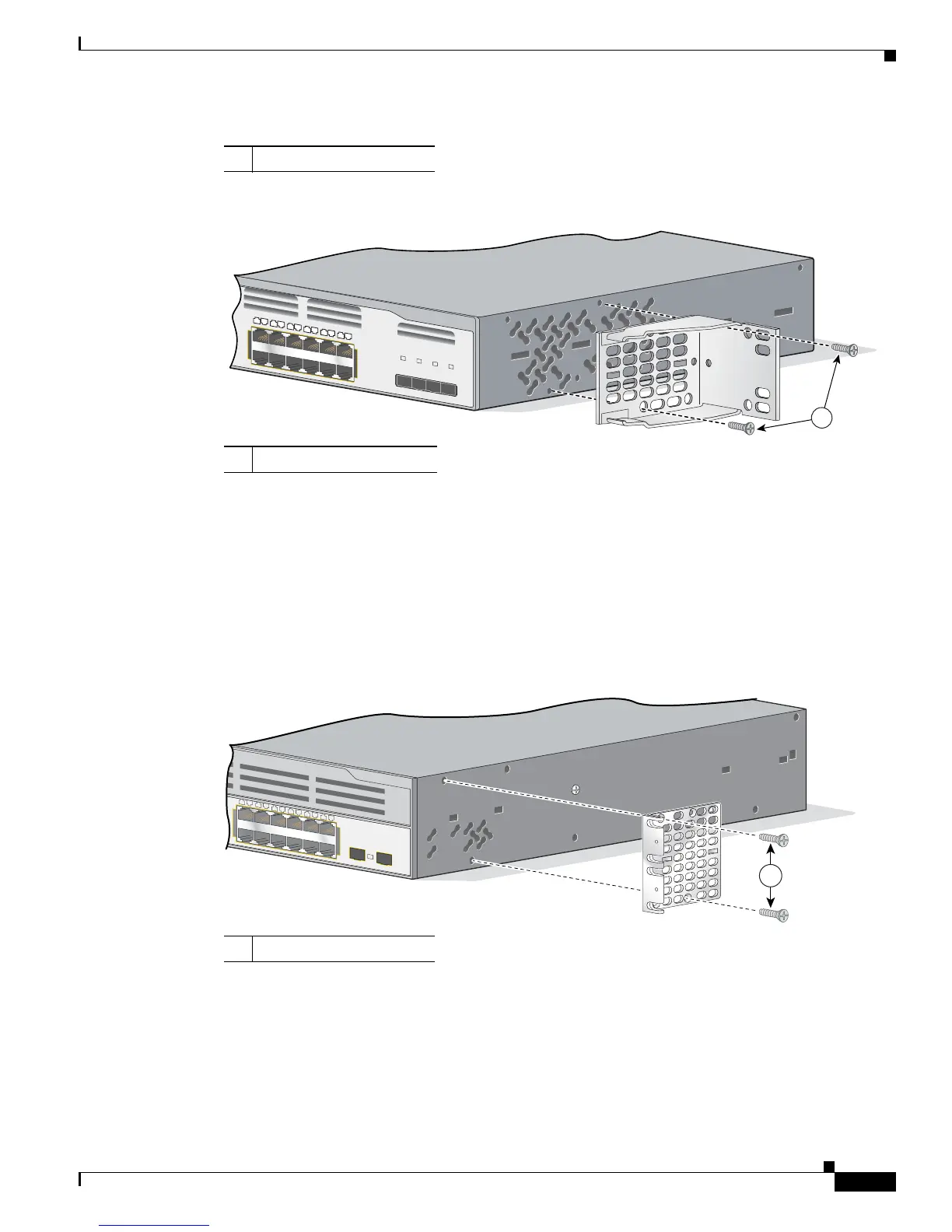

Figure 2-19 Attaching Brackets for 24-Inch Telco Racks
Attaching Brackets to the Catalyst 3750G Integrated Wireless LAN Controller Switches
The wireless LAN controller switches can only be mounted on 19-inch racks. This section describes how
to attach 19-inch brackets on the Catalyst 3750G-24WS-S25 and the 3750G-24WS-S50 switches.
Figure 2-20, Figure 2-21, and Figure 2-22 show how to attach the bracket to one side of the switch.
Follow the same steps to attach the second bracket to the opposite side. For 19-inch racks, use part
number 700-21419-XX.
Figure 2-20 Attaching Brackets for 19-Inch Racks, Front Panel Forward
1 Phillips flat-head screws
1 Phillips flat-head screws
Catalyst 3750
SERIES
13X
14X
23X
24X
25
26
27
28
13
14
15
16
17
18
19
20
21
22
23
24
86559
1
1 Phillips flat-head screws
Catalyst 3750G
SERIES
PoE-24
Wireless LAN Controller
13X
14X
23X
24X
13
14
15
16
17
18
19
20
21
22
23
24
25 26
141730
1
