2-19
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Installing the Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch, a 23-inch, a 24-inch rack, or a ETSI rack. Figure 2-23 shows the bracket options.

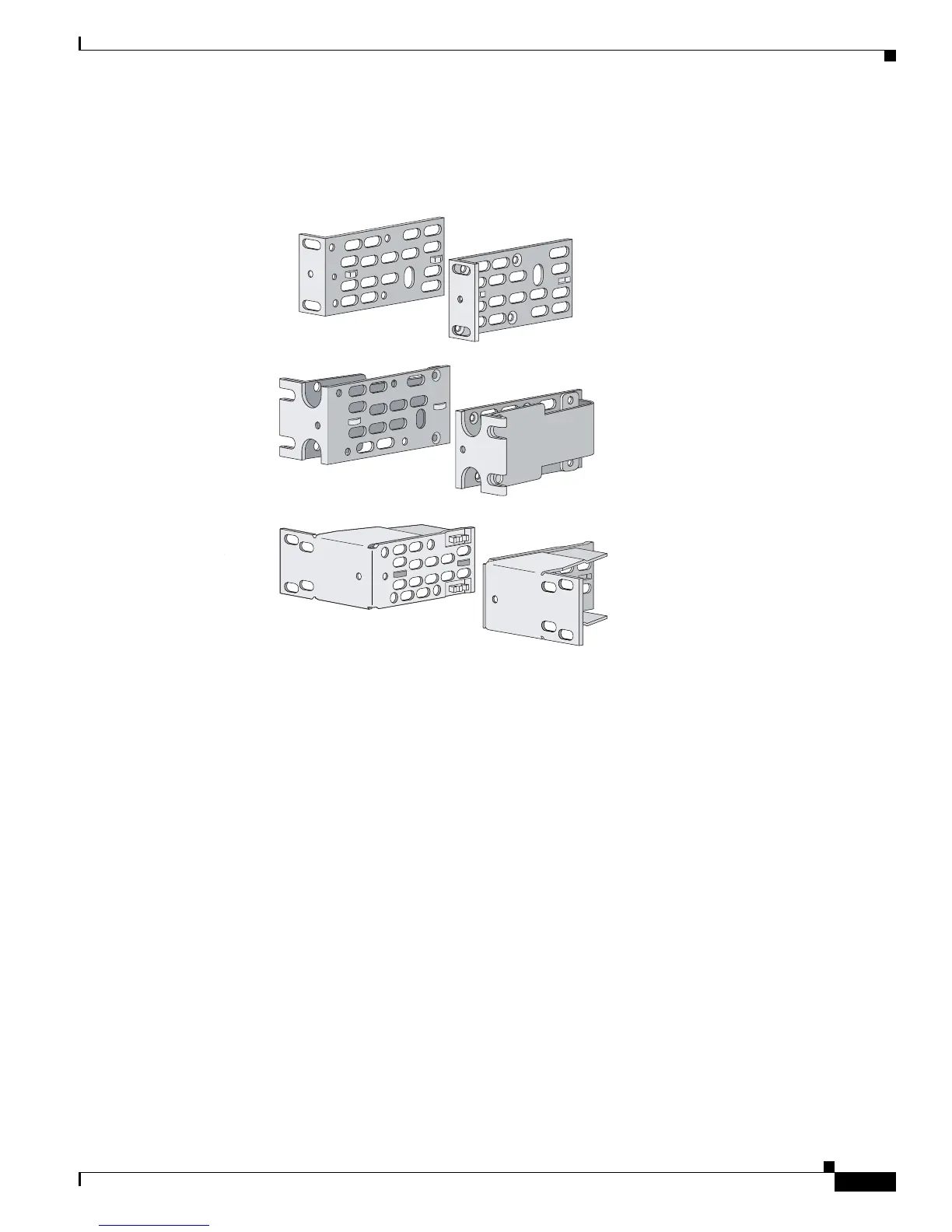

Figure 2-23 Rack-Mounting Brackets
•
For 19-inch racks, use part number 700-08209-XX, and see Attaching Brackets for 19-Inch Racks
and 19-Inch Telco Racks, page 2-19.
• For 23-inch racks, use part number 700-21646-XX, and see Attaching Brackets for 23-Inch Racks,
page 2-21.
• For 24-inch racks, use part number 700-12398-XX, and see Attaching Brackets for 24-Inch Racks
and 24-Inch Telco Racks, page 2-22.
• For ETSI racks, use part number 700-19781XX, and see Attaching Brackets for ETSI Racks, page
2-23.
Attaching Brackets for 19-Inch Racks and 19-Inch Telco Racks
This section shows to attach brackets for 19-inch racks in Figure 2-24 through Figure 2-27. These
illustrations show how to attach each type of bracket to one side of the switch. Follow the same steps to
attach the second bracket to the opposite side.
132869
19 inch
/24 inch
ETSI
