Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Installing the Switch
Figure 2-27 Attaching Brackets for 19-Inch Telco Racks
Attaching Brackets for 23-Inch Racks
This section shows to attach brackets for 23-inch racks in Figure 2-28 and Figure 2-29. These
illustrations show how to attach each type of bracket to one side of the switch. Follow the same steps to
attach the second bracket to the opposite side.

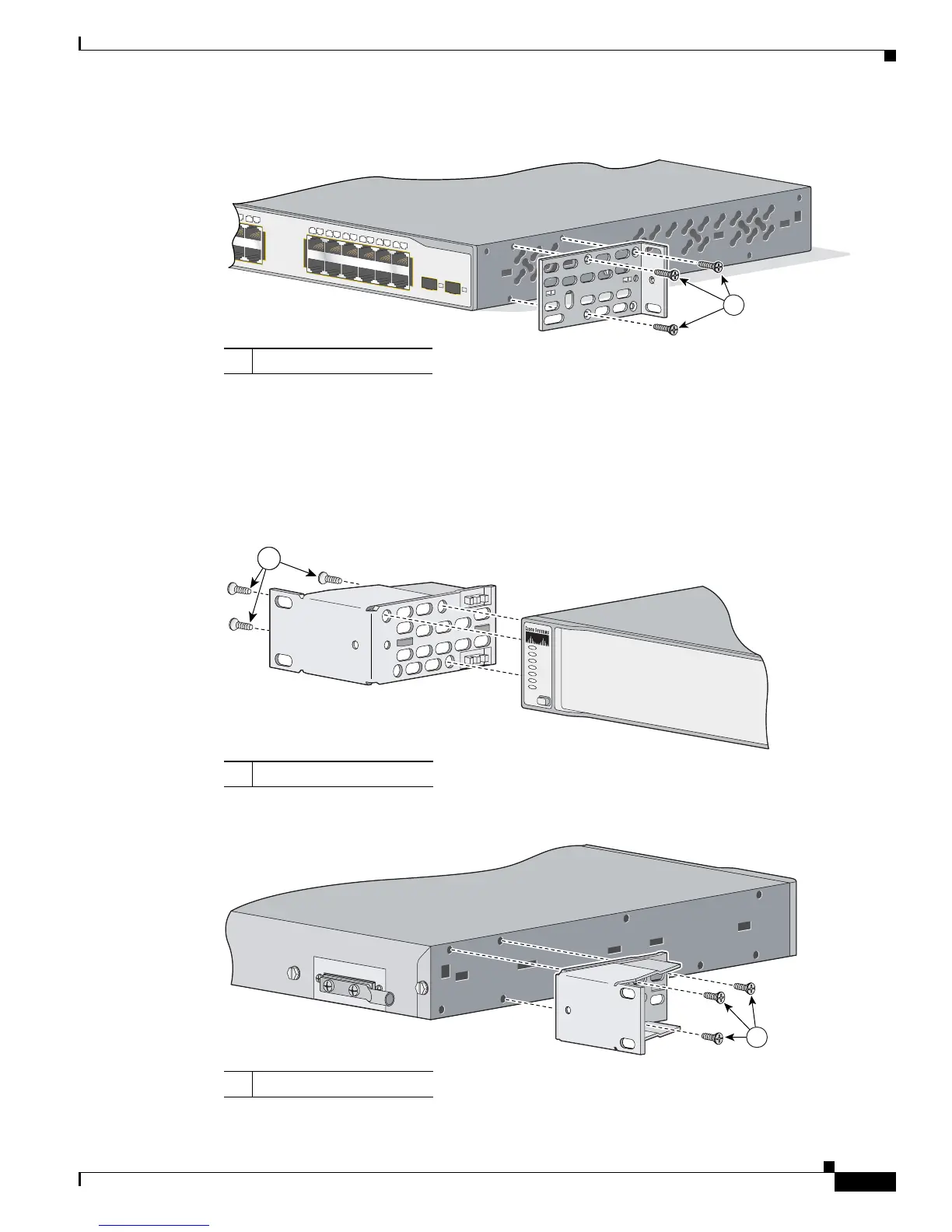

Figure 2-28 Attaching Brackets for 23-Inch Racks, Front Panel Forward
Figure 2-29 Attaching Brackets for 23-Inch Racks, Rear Panel Forward
1 Phillips flat-head screws
Catalyst 3750
SERIES
13X
14X
23X
24X
11X
12X
1
2
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
86564
1
1 Phillips flat-head screws
1
132968
MODE
RPS
STAT
DUPLX
SPEED
MASTR
STACK
SYST
1 Phillips flat-head screws
132969
1
