2-28
Catalyst 3750 Switch Hardware Installation Guide
OL-6336-10
Chapter 2 Switch Installation
Installing the Switch
Attaching the Brackets to the Switch for Wall-Mounting

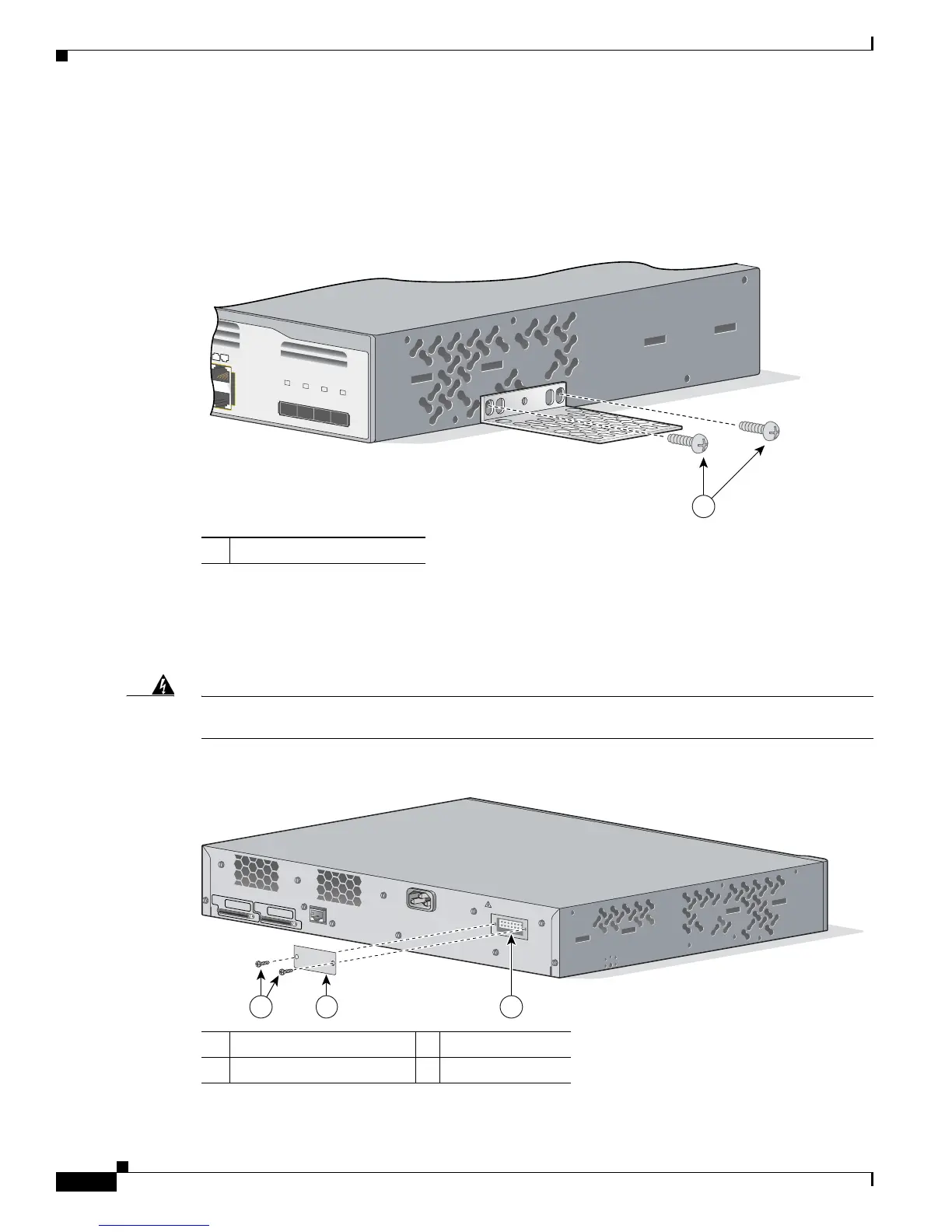

Figure 2-41 shows how to attach a 19-inch bracket to one side of the switch. Follow the same steps to
attach the second bracket to the opposite side.
Figure 2-41 Attaching the 19-inch Brackets for Wall-Mounting
Attaching the RPS Connector Cover
If you are not using an RPS with your switch, use the two Phillips pan-head screws to attach the RPS
connector cover to the back of the switch, as shown in Figure 2-42.
Warning
If an RPS is not connected to the switch, install an RPS connector cover on the back of the switch.
Statement 265
Figure 2-42 Attaching the RPS Connector Cover on the Switch
1 Phillips truss-head screws
Catalyst 3750
SERIES
23X
24X
23
24
25
26
27
28
1
86687
1 Phillips pan-head screws 3 RPS connector
2 RPS connector cover
CONSOLE
STACK 1
STACK 2
DC INPUTS FOR REM
OTE
POWER SUPPLY
SPECIFIED IN M
ANUAL
+12v @
8.5a
21 3
86571
