Cisco 7206 Installation and Configuration Guide
OL-5102-02
Chapter 5 Maintaining the Cisco 7206
Replacing a Port Adapter or Service Adapter

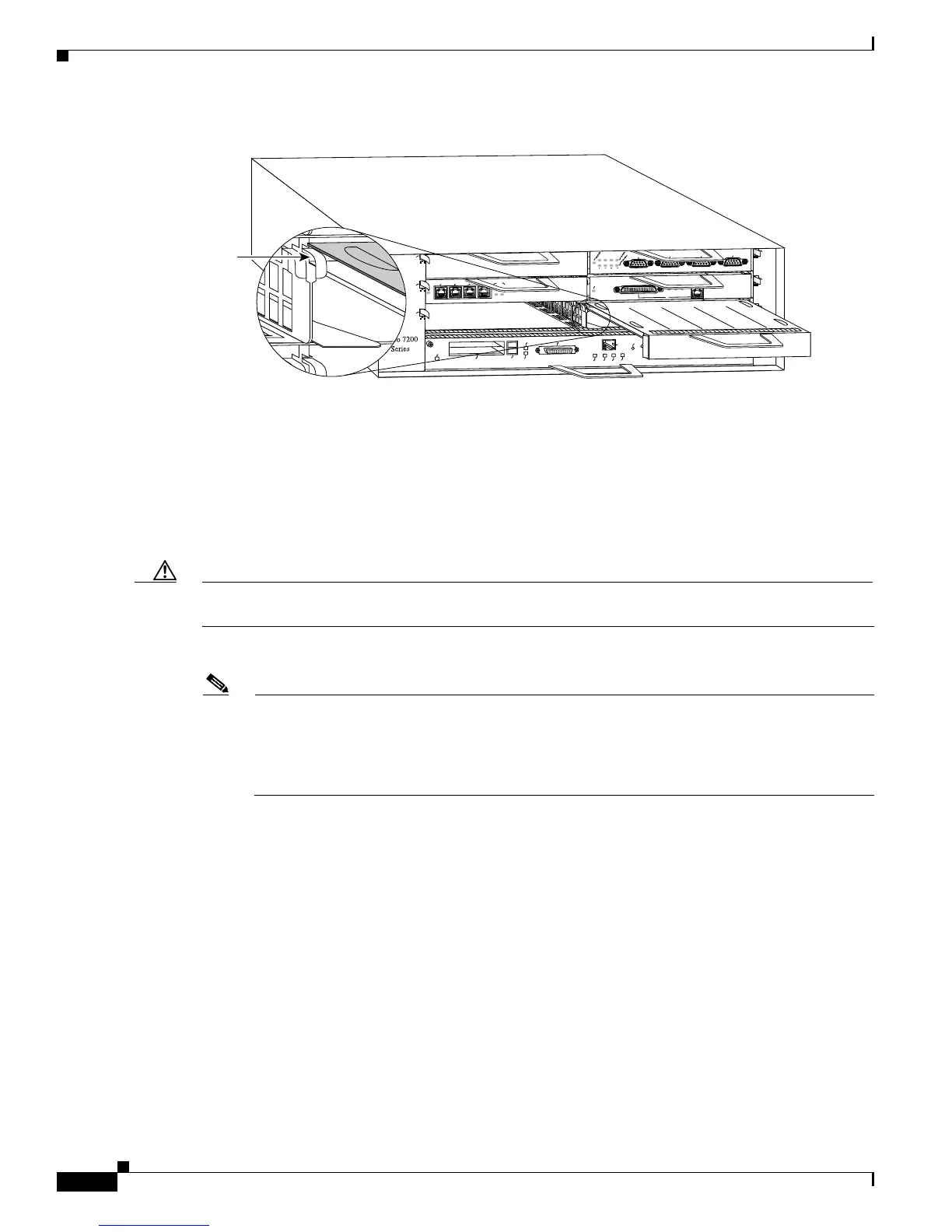

Figure 5-3 Aligning the Adapter Metal Carrier Between the Slot Guides
Step 3 Align the left and right edge of the adapter’s metal carrier between the guides in the port adapter slot.
(Refer to Figure 5-3.)
Step 4 With the metal carrier aligned in the slot guides, gently slide the port adapter half way into the port
adapter slot. If you are installing a service adapter, carefully slide the service adapter all the way into the
slot until the adapter is seated in the router midplane and continue from Step 7.
Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.
Attempting to do so will disrupt normal operation of the router.
Step 5 With the port adapter half way in the slot, connect all required cables to the port adapter.
Note For connection equipment, signaling, and pinout information for a specific port adapter type,
refer to the configuration note for the port adapter. For example, connection equipment,
signaling, and pinout information for the Fast Ethernet port adapter is contained in the
configuration note PA-FE-TX and PA-FE-FX Fast Ethernet 100BaseT Port Adapter Installation
and Configuration. This configuration note is available on Cisco.com.
Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until the adapter is
seated in the router midplane.
H6597
MII
EN
RJ45
EN
RJ45
LINK
1O PWR
OK
R
J
-
4
5
C
P
U
R
E
S
E
T
F
A
S
T
E
T
H
E
R
N
E
T
I
N
P
U
T
/
O
U
T
P
U
T
C
O
N
T
R
O
L
L
E
R
ENABLED
PCMCIA
EJECT
SLOT 0
SLOT 1
FE MII
2
4
6
1
3
5
ETHERNET 10BT
ENABLED
0
2
1
3
LINK
0
1
2
3
E
N
A
B
L
E
D
M
I
I
L
I
N
K
R
J
4
5
FAST ETHERNET
0
TOKEN RING
0
1
2
3
Slot
guide
Note: This adapter alignment
applies to any port or service
adapter.
