Chapter 3 Installing the Cisco 7206
Rack-Mounting the Cisco 7206
Installing the Brackets on the Front of the Chassis
To install the rack-mount and cable-management brackets on a Cisco 7206 for a front rack-mount
configuration, complete the following steps:
Step 1 Locate the threaded holes in the front sides of the chassis. If you plan to use the cable-management
brackets in your rack-mount configuration, proceed with Step 2. If you do not plan to use the
cable-management brackets, skip to Step 3.
Step 2 If you want the front of the chassis protruding from the rack, align the first rack-mount bracket and the
first cable-management bracket to the threaded holes in the right side of the chassis as shown in
Figure 3-6.
If you want the front of the chassis recessed in the rack, align the first rack-mount bracket to the threaded
holes in the right side of the chassis as shown in Figure 3-7.

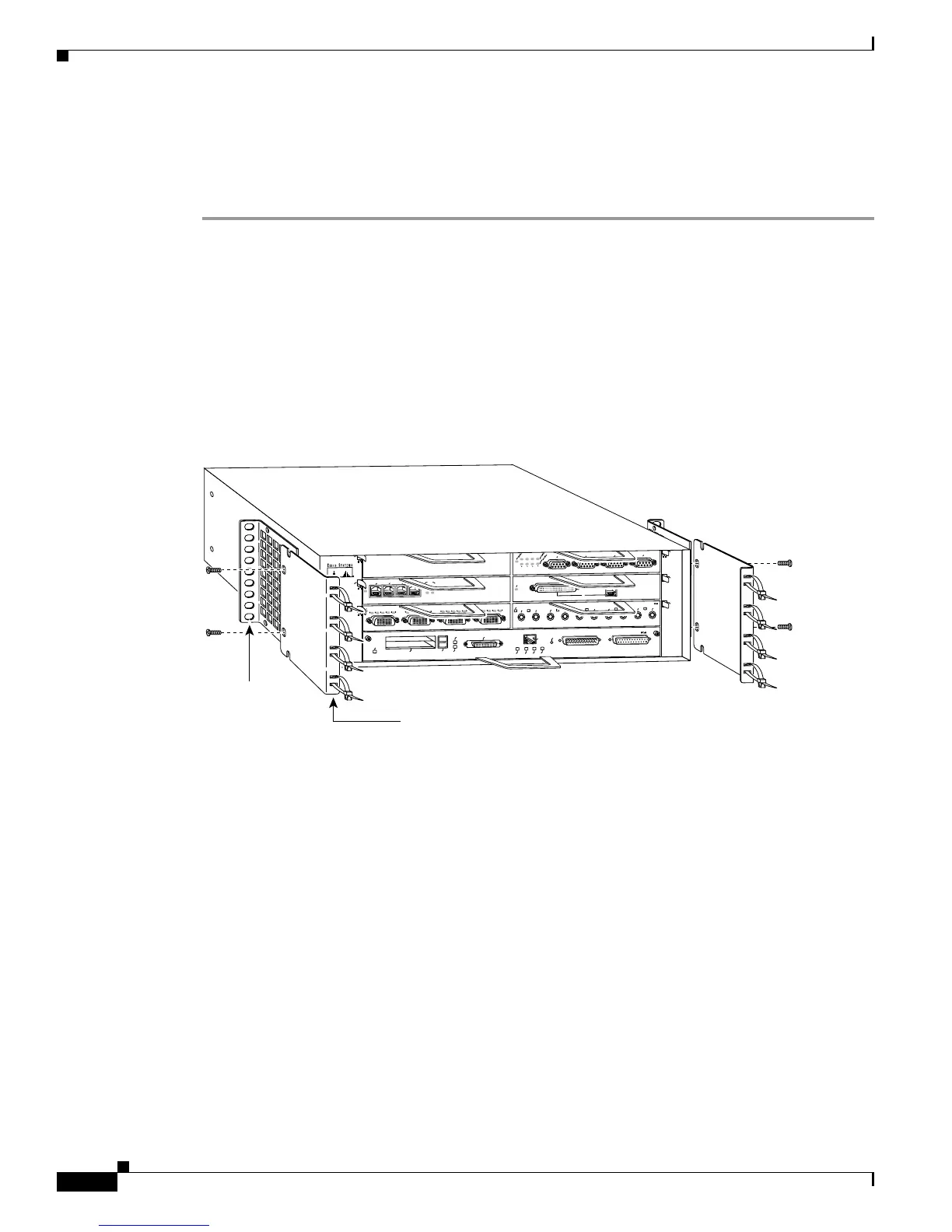

Figure 3-6 Installing the Rack-Mount Brackets on the Front of the Chassis so the Front
Protrudes from the Rack
