Chapter 5 Maintaining the Cisco 7206
Installing and Removing a Flash Memory Card

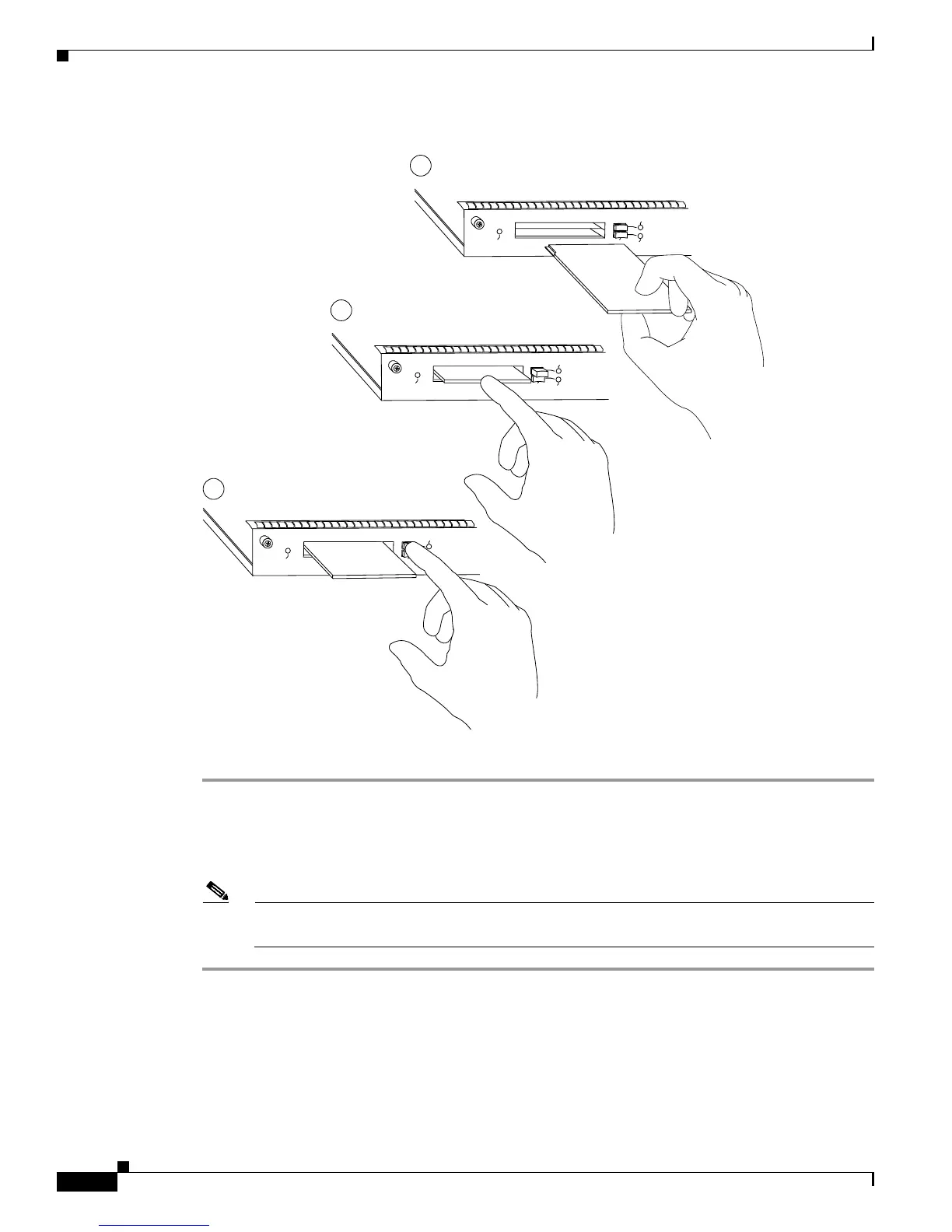

Figure 5-5 Inserting and Removing a Flash Memory Card
Step 1 Orient the Flash memory card so that its connector end faces the appropriate slot. (Refer to Figure 5-5,
step a.)
Step 2 Carefully guide the card into the slot until the card seats in the slot’s connector and the eject button for
the slot pops out toward you. (Refer to Figure 5-5, step b.)
Note Flash memory cards do not insert all the way into the PC Card slots; the end of the card protrudes
from the I/O controller faceplate. Do not attempt to force the card past this point.
