Cisco 7206VXR - VPN Bundle Router User Manual

3-36
Cisco 7200 VXR Installation and Configuration Guide
OL-5013-09
Chapter 3 Installing a Cisco 7200 VXR Router
Connecting I/O Controller, NPE-G1, or NPE-G2 Cables

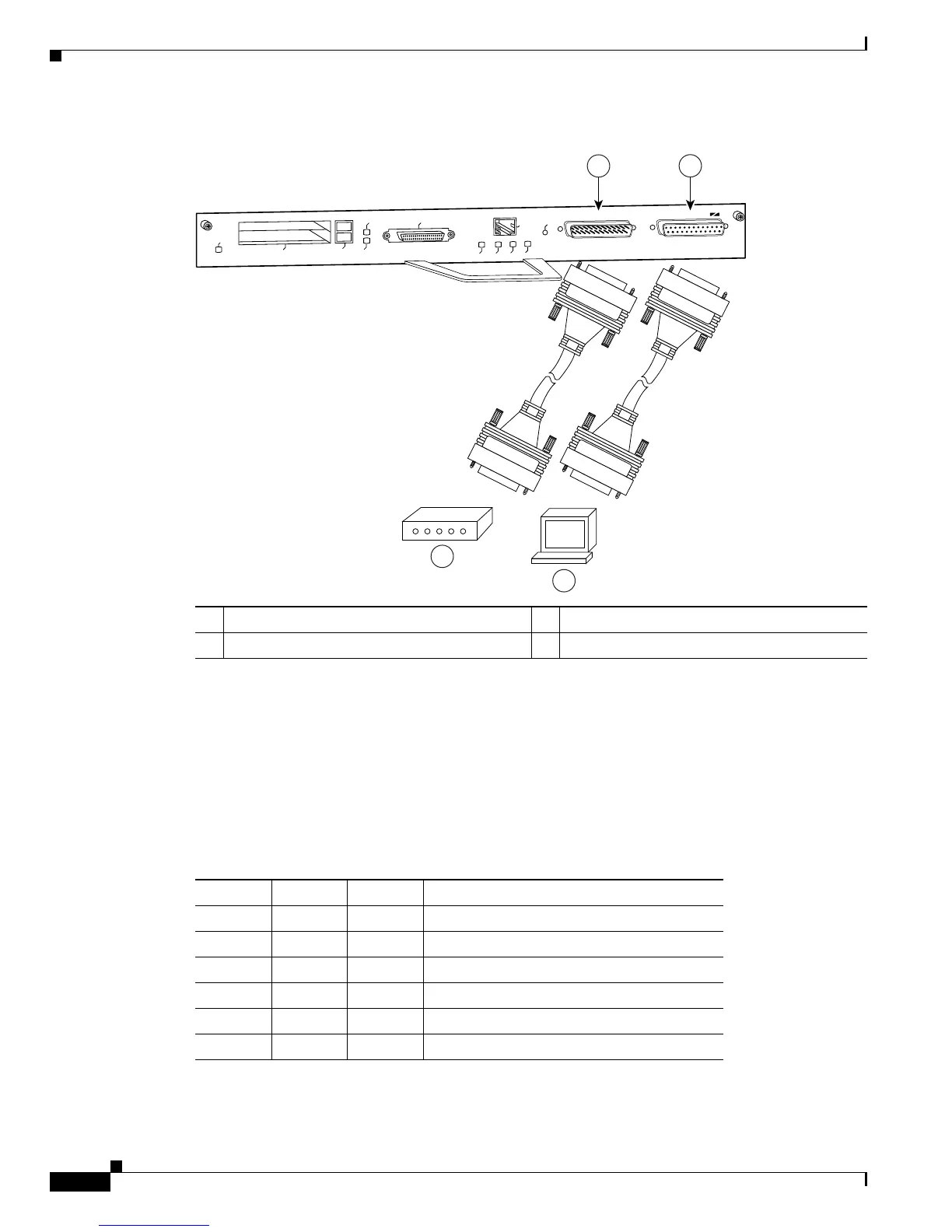

Figure 3-28 Console and Auxiliary Port DB-25 Connections
DB-25 Console Port Signals and Pinouts
Both Data Set Ready (DSR) and Data Carrier Detect (DCD) are supported on the C7200-I/O,
C7200-I/O-FE, and C7200-I/O-FE-MII and are active when the system is running. The Request To Send
(RTS) signal tracks the state of the Clear
To Send (CTS) input. The console port does not support modem
control or hardware flow control.
Table 3-14 lists the DB-25 console port signals for the C7200-I/O,
C7200-I/O-FE, and C7200-I/O-FE-MII. The console port requires a straight-through EIA/TIA-232
cable.
1 Auxiliary port 3 Modem
2 Console port 4 Console terminal
3
4
84537
MII
EN
RJ45
EN
RJ45
LINK
1O PWR
OK
R
J
-
4
5
C
P
U
R
E
S
E
T
FA
ST E
TH
ER
N
ET
IN
PUT
/O
UT
PU
T CO
N
TR
O
LL
E
R
ENABLED
PCMCIA
EJECT
SLOT 0
SLOT 1
FE MII
1
2
Ta b l e 3-14 Console Port Signals for C7200-I/O, C7200-I/O-FE, and C7200-I/O-FE-MII
Pin
1
1. Any pin not referenced is not connected.
Signal Direction Description
1 GND — Ground
2 TxD In Transmit Data
3 RxD Out Receive Data
6 DSR Out Data Set Ready (always on)
7 GND — Ground
8 DCD Out Data Carrier Detect (always on)
