2. IP PHONE 7841 and 7821
Buttons and Hardware:
The IP Phone 7800 Series has distinct hardware types:
• IP Phone 7821 Two buttons on the left side of the screen
• IP Phone 7841 Two buttons on either side of the screen

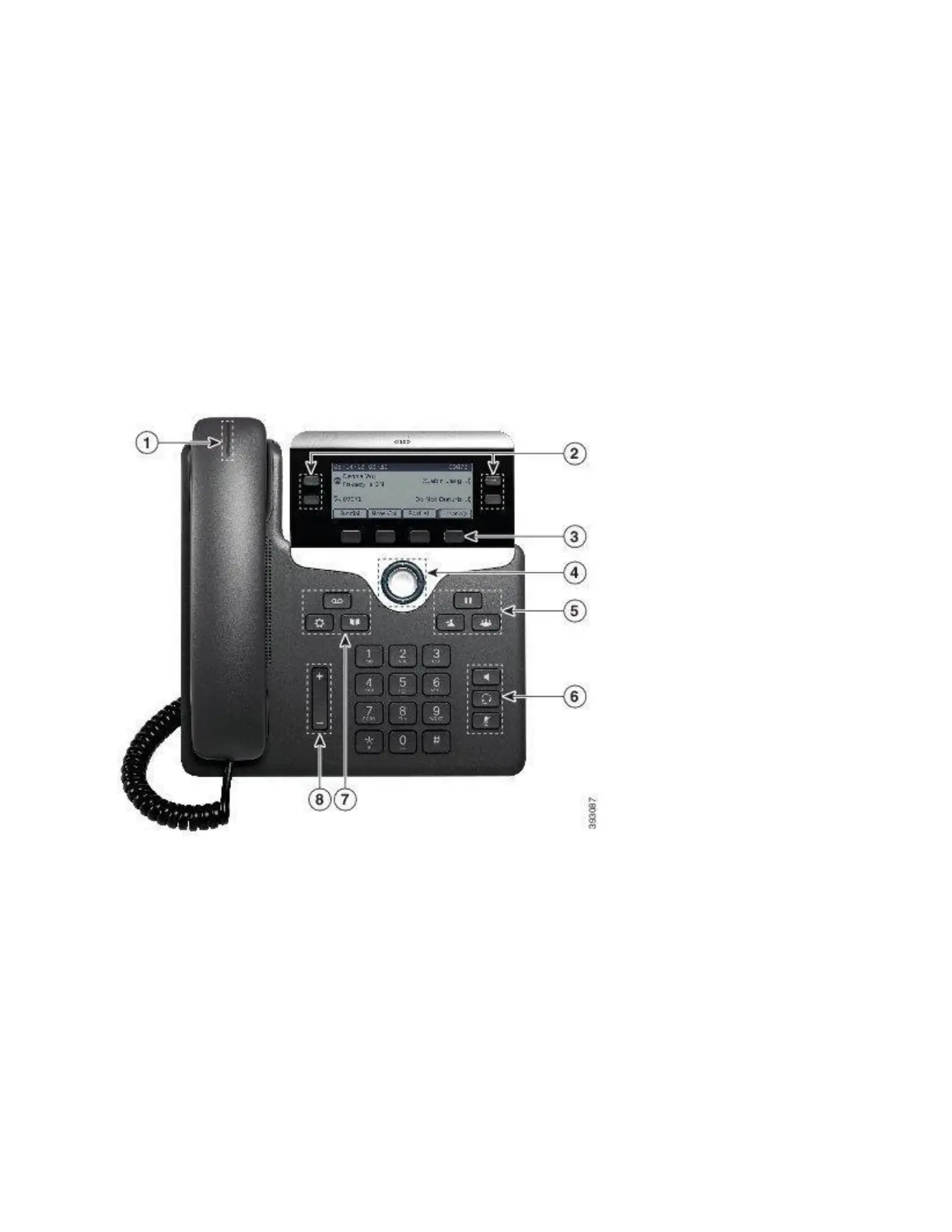

Figure 2
. IP Phone 7800 Series Buttons and Features
