Connecting Your Phone
This section shows and explains the connectors on your Cisco IP phone.
6
Hold button Places an active call on hold. Resumes a held call.
7
Keypad Functions like a traditional telephone keypad.
8
Volume button Increases or decreases handset volume and onhook ring volume.
9
Handset with indicator light Functions like a traditional handset.

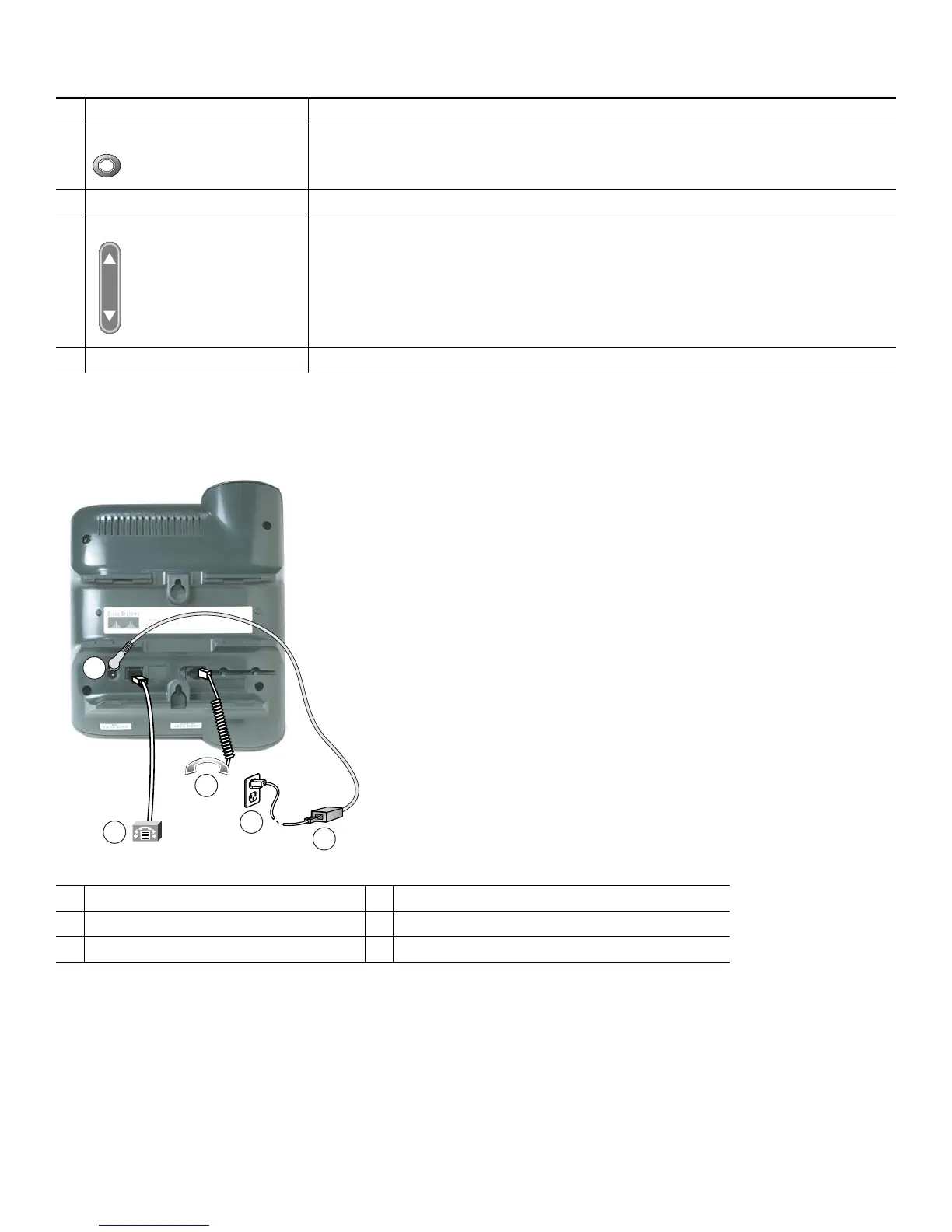

1
Network port (10BASE-T)
4
Cisco power supply (optional)
2
Handset port
5
Power cable with wall socket plug
3
DC adapter port (DC48V)
