Connecting Your Phone

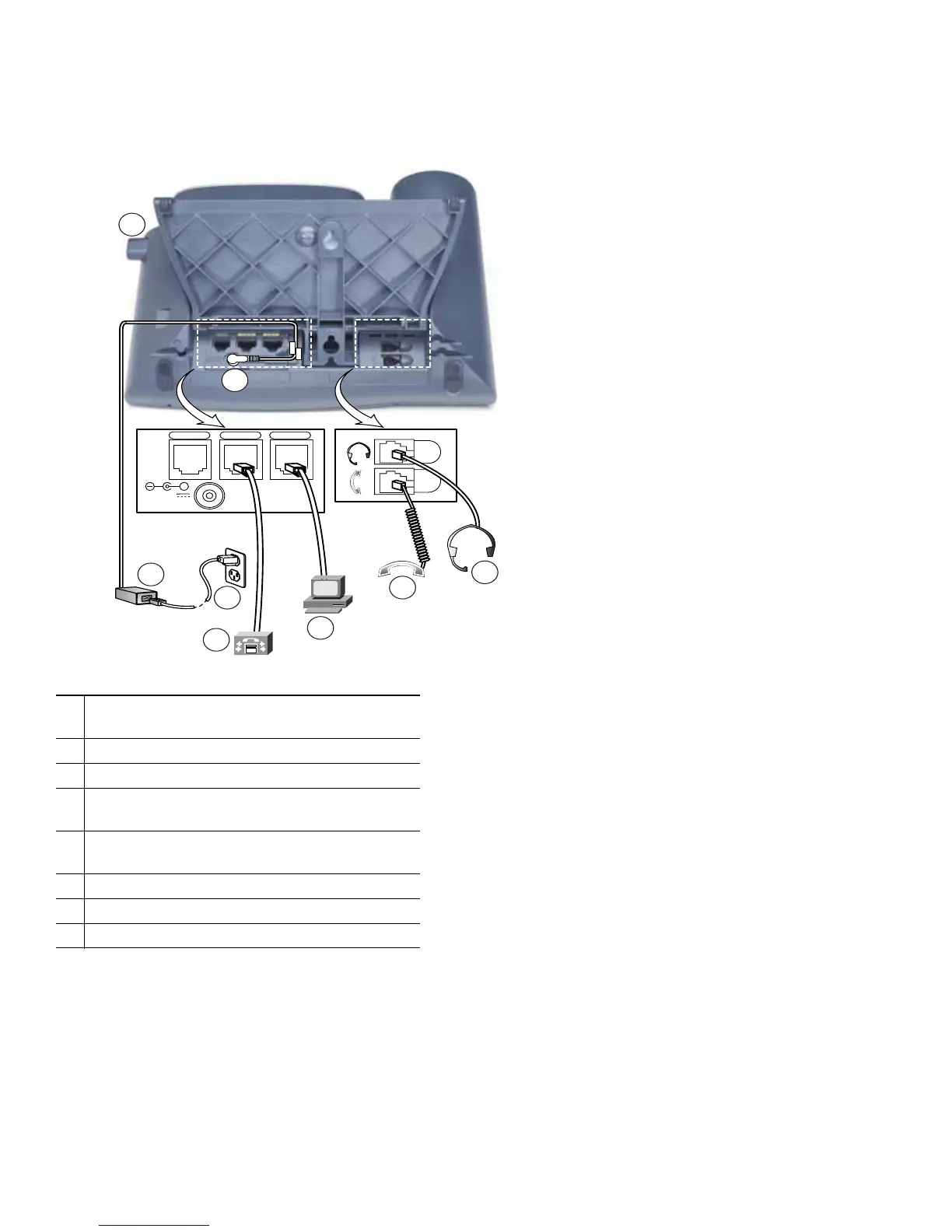

This section shows and describes the connectors on your Cisco Unified IP phone.
1
DC adapter port (DC48V) for phones not
provided with inline power
2
AC-to-DC power supply
3
AC power cord
4
Network port (10/100 SW) for connecting to the
network
5
Access port (10/100 PC) for connecting your
phone to your computer
6
Handset port
7
Headset port
8
Footstand button
AUX
DC48V
10/100 SW 10/100 PC
+
