Chapter 5 Upgrading the 5-GHz Radio Module
Removing a 5-GHz Radio Module
Step 3 Remove the 5-GHz access cover using the supplied Torx L-wrench (see Figure 5-1).

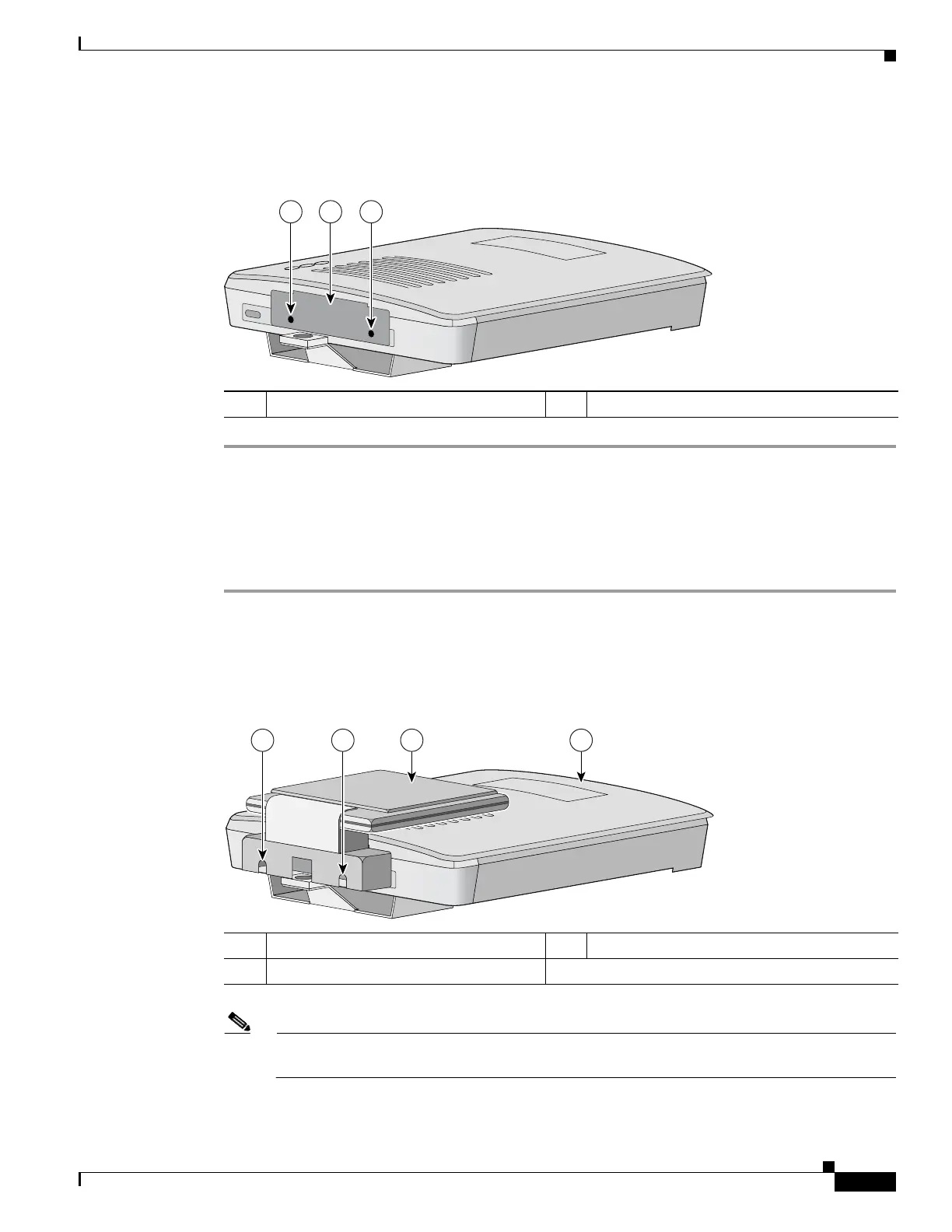

Figure 5-1 5-GHz Radio Access Cover
Removing a 5-GHz Radio Module
To remove the 5-GHz radio module, follow these steps:
Step 1 Remove all cables and power connections from the access point.
Step 2 Place the access point on a flat surface so that the unit is upright with the front end facing you.
Step 3 Unscrew the two mounting screws using the supplied Torx L-wrench (Figure 5-2).
Figure 5-2 5-GHz Radio Module
Note Do not attempt to remove the mounting screws from the module; they are captured in the module
housing.
1 Access Cover Screws 2 Access Cover
1 12
74632
1 Mounting screws 3 Access point
2 5-GHz radio module antenna
74631
1 1 2 3
