Cisco ASR 1001-HX Removing And Replacing

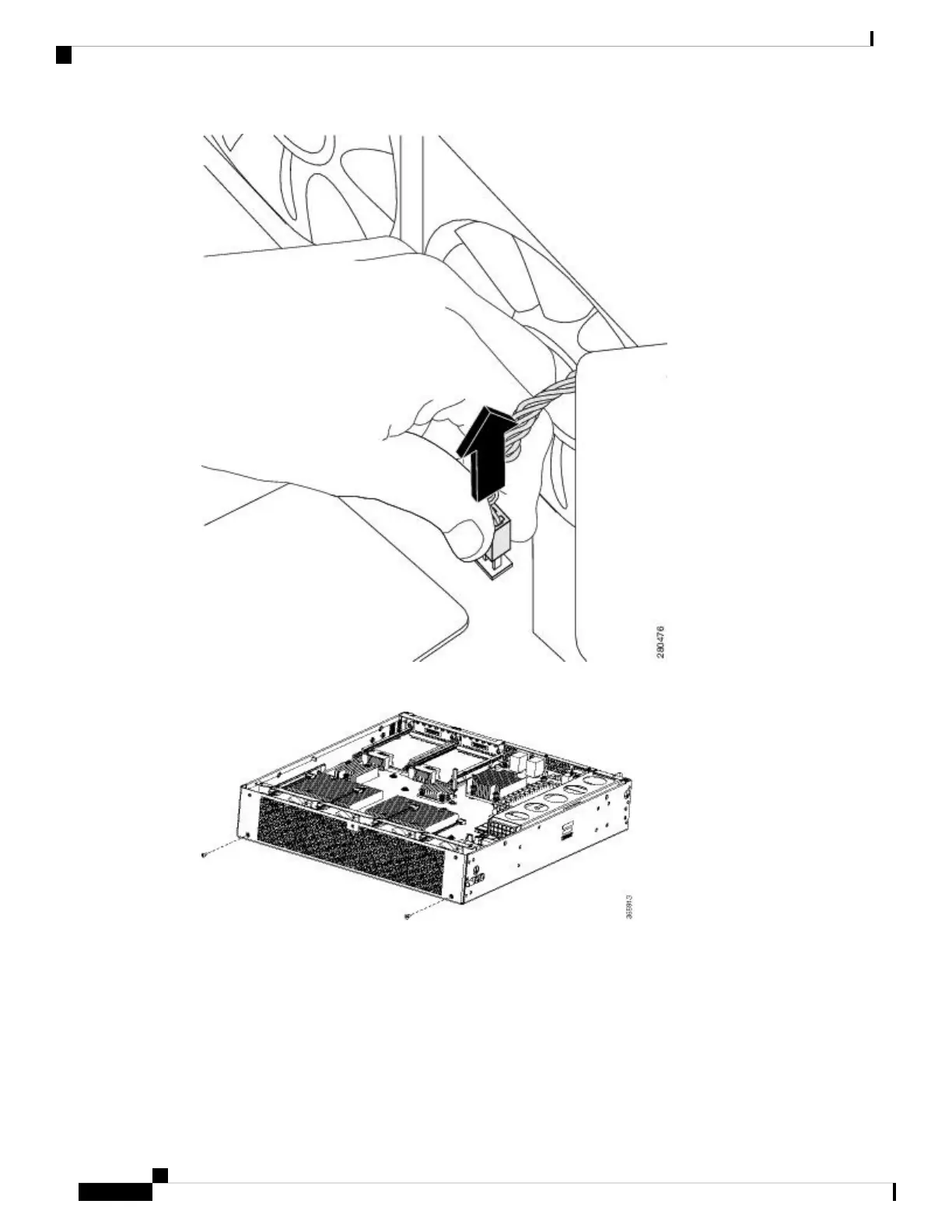

Step 5 Remove the two screws from the rear of the chassis as shown in the following figure.
Step 6 Lift the fan tray up and out of the chassis as shown in the following figure.
Removing and Replacing FRUs
28
Removing and Replacing FRUs
Removing the Fans from a Cisco ASR 1002-HX Router

Cisco ASR 1001-HX Specifications

General

Form Factor	1 RU
Rack Mountable	Yes
Redundant Power Supply	Optional
Operating Temperature	32 to 104°F (0 to 40°C)
Memory	16 GB
Power Supply	Internal AC or DC
Humidity	5% to 95% non-condensing
Ports	Built-in 8 x 1GE and 4 x 10GE (SFP+)
Maximum NAT sessions	Up to 4 million
