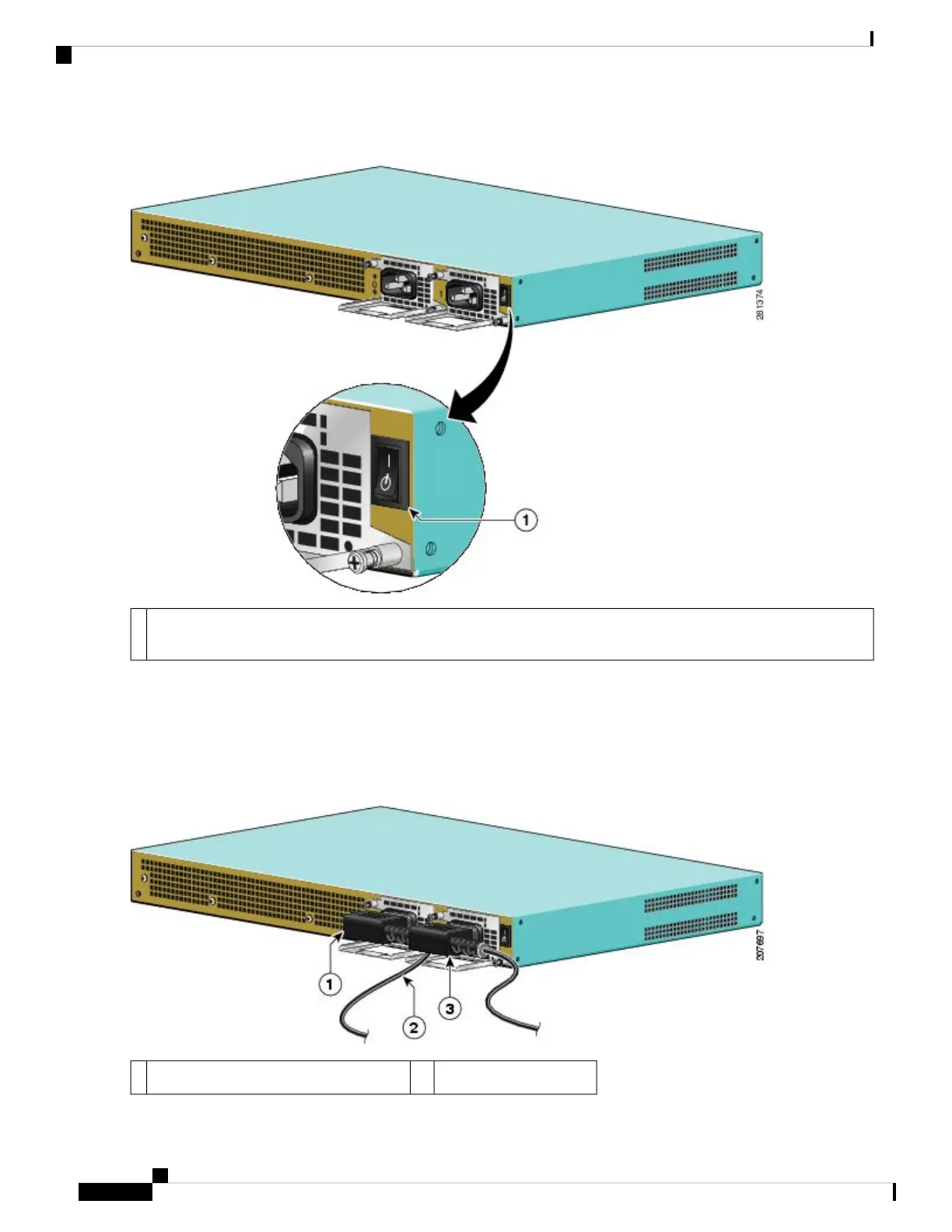

Figure 75: Cisco ASR 1001 Router AC Power Supply Standby Switch
Cisco ASR 1001 Router AC power supply Standby switch. This switch does not disconnect power from the power
source.
1
Step 2 Turn off the circuit breaker to the power supply.
Step 3 For easier installation, plug the power cable into the inlet on power supply slot 1 first.
Step 4 Insert the power supply cable into the power supply in slot 0 on the left.
Step 5 Ensure that the AC power cords are positioned, as shown in the following figure.
Figure 76: Correct Position of the Cisco ASR 1001 Router AC Power Supply Cables
AC power supply in PS13AC power supply in PS01
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
110
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Installing the AC Power Supply into Cisco ASR 1001 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
