Cisco ASR 1004 Replacing

Figure 77: Positioning the AC Power Supply Cable in Slot PS0
Step 5 Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew the both fasteners on the
power supply in slot 1.
The Cisco ASR 1001 power supplies are long and narrow. It is recommended that while you pull the power
supply out of the chassis, support the power supply from the bottom with the other hand.
Tip
Step 6 Once the power supply fasteners are loosened, grasp the handle with one hand and support the weight of power supply
with the other hand and pull the power supply out of the slot (see the following figure).

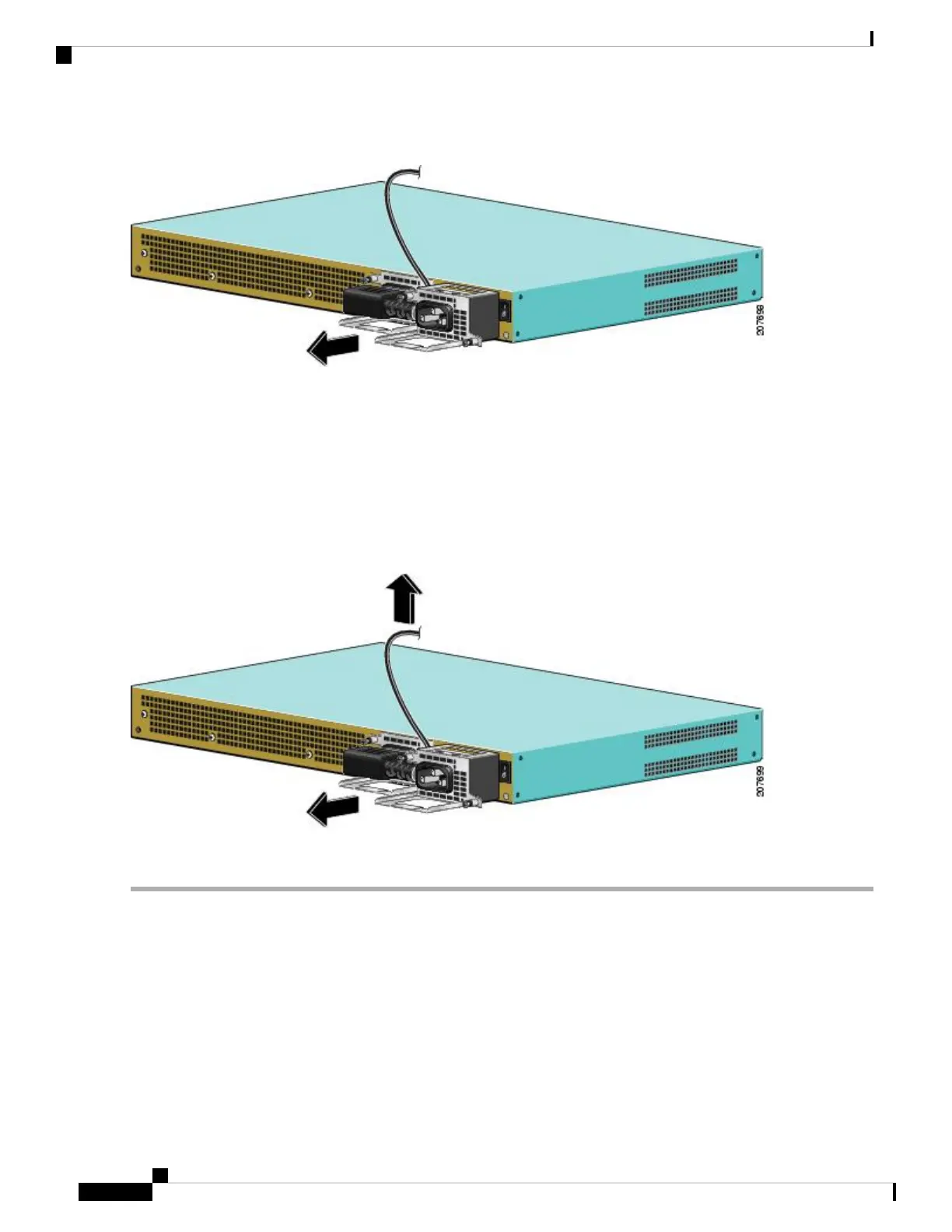

Figure 78: Removing the Cisco ASR 1001 Router AC Power Supply Cables
Step 7 Repeat the same steps to remove the AC power supply from Slot PS0.
What to do next
This completes the procedure for removing an AC power supply from the Cisco ASR 1001 Router.
Installing DC Power Supply into Cisco ASR 1001 Router
The Cisco ASR 1001 Router DC input connector is compatible with a pluggable Euro-style plug. The input
connector and plug must be UL recognized under UL 486 for field wiring. The connection polarity shall be
from left to right: negative (–), positive (+), and ground.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
112
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Installing DC Power Supply into Cisco ASR 1001 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
