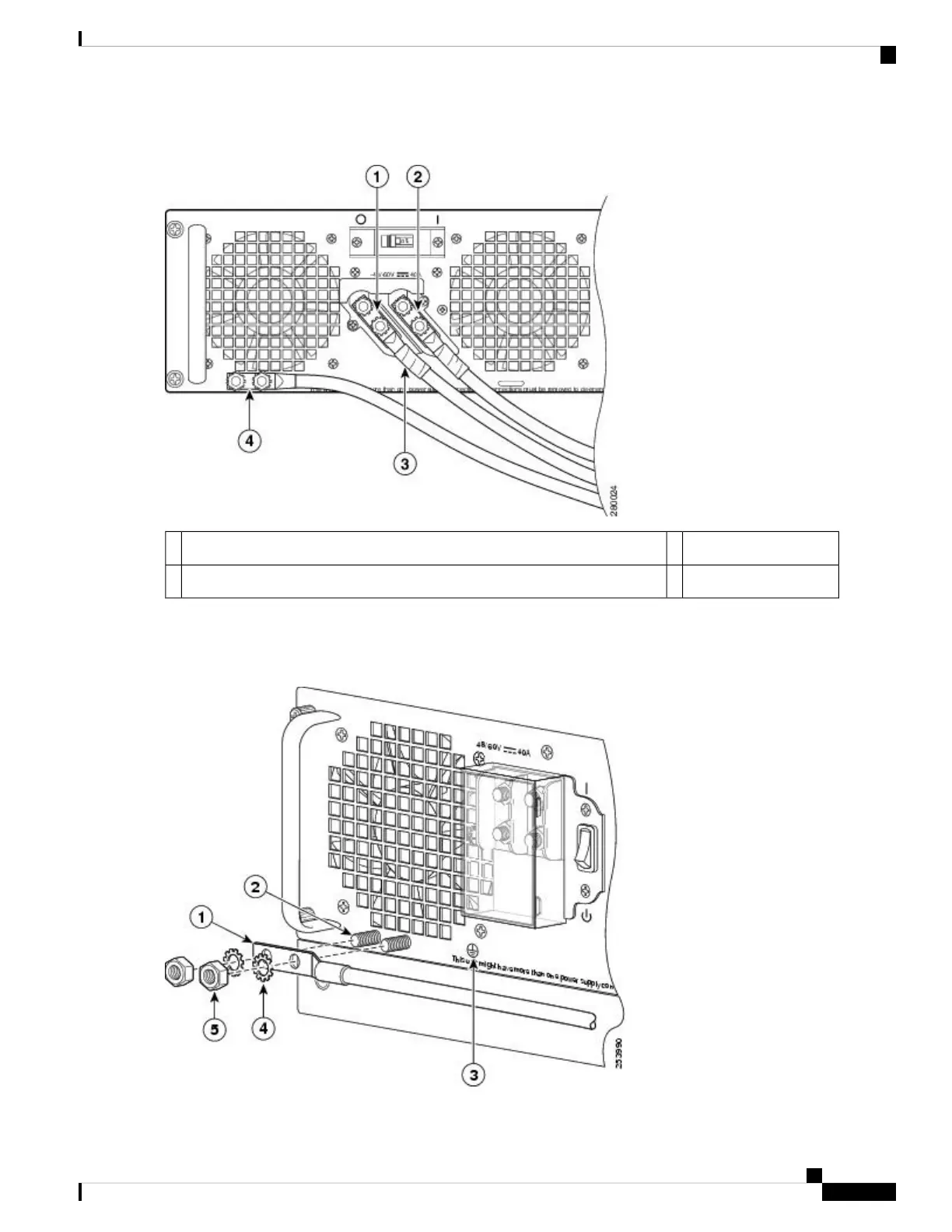

Figure 45: Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC) Terminal Block Ground Lugs
Protective sleeving area3Negative lug and wire with sleeving wrapped around the wire and end of lug1
Ground stud and cable4Positive lug and wire with sleeving wrapped around the wire and end of lug2
The following figure shows the terminal block ground lugs for the ASR1013/06-PWR-DC power supply of the Cisco
ASR 1006 Router.
Figure 46: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Ground Lug Installation
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
69
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the DC Power Supply in Cisco ASR 1006 Router
