Chapter 2 Functional Description
Modular Line Cards

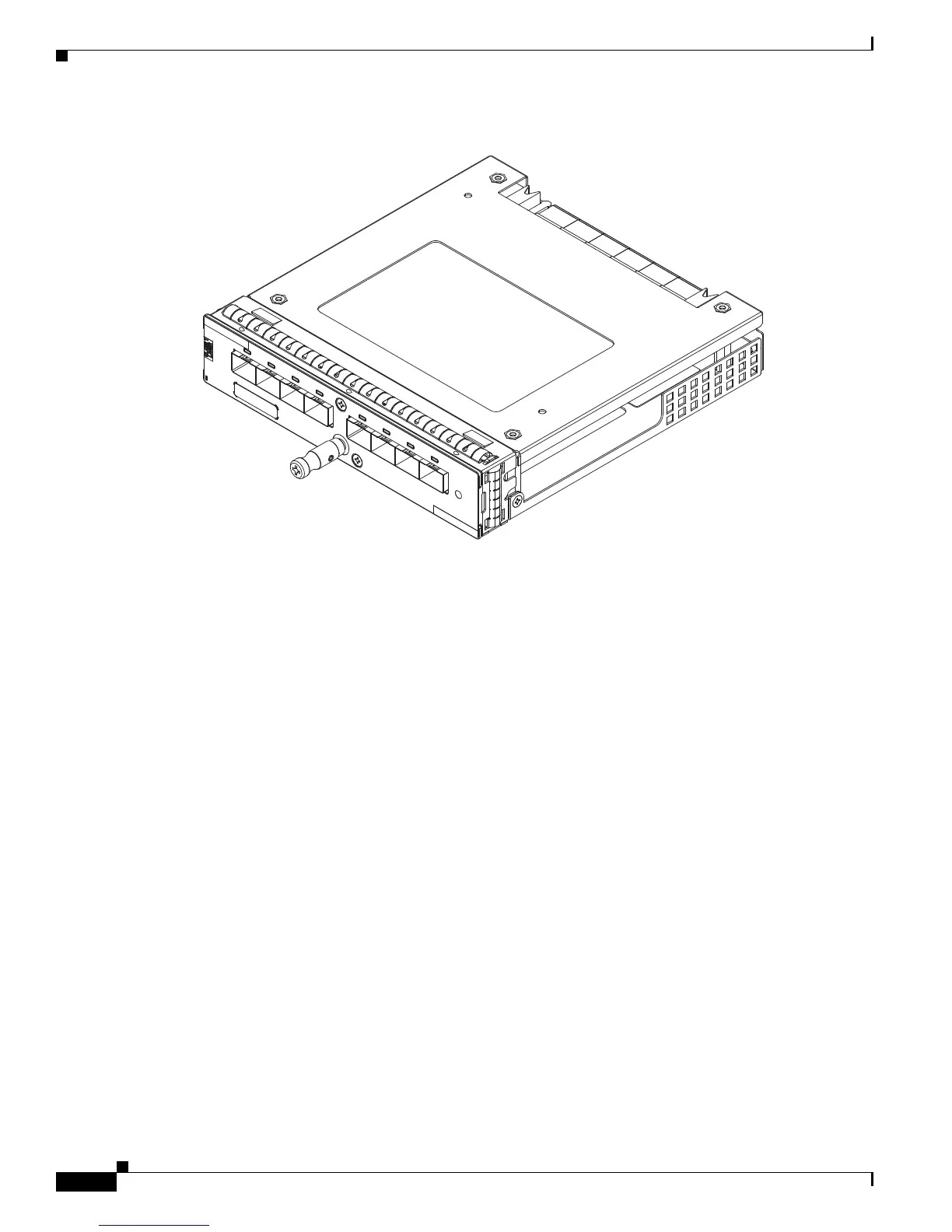

Figure 2-36 8-Port 10-Gigabit Ethernet MPA
4-Port 10-Gigabit Ethernet Modular Port Adapter
The 4-Port 10-Gigabit Ethernet MPA provides four cages for XFP Ethernet optical interface modules
that operate at a rate of 10-Gbps. The four XFP modules can be 10-Gigabit Ethernet multimode
connections.
Each XFP cage on the 4-Port 10-Gigabit Ethernet MPA has an adjacent A/L LED visible on the front
panel. The A/L LED indicates the status of the associated XFP port.
Figure 2-37 shows an example of the 4-Port 10-Gigabit Ethernet MPA.
303443
A9K-MP A-8X 10GE
A9K-MP A-8X 10GE
STATUS
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
4
5
6
7
0
1
2
3

Cisco ASR 9006 Specifications

General

Chassis Type	Modular
Rack Units	10 RU
Slots	6
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Front-to-back airflow
Input Voltage	100-240 VAC or -48 to -60 VDC
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	10GE, 40GE, 100GE
Management Interfaces	Ethernet, Console, Auxiliary
