Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide

OL-17501-09

Chapter 2 Functional Description

Modular Line Cards

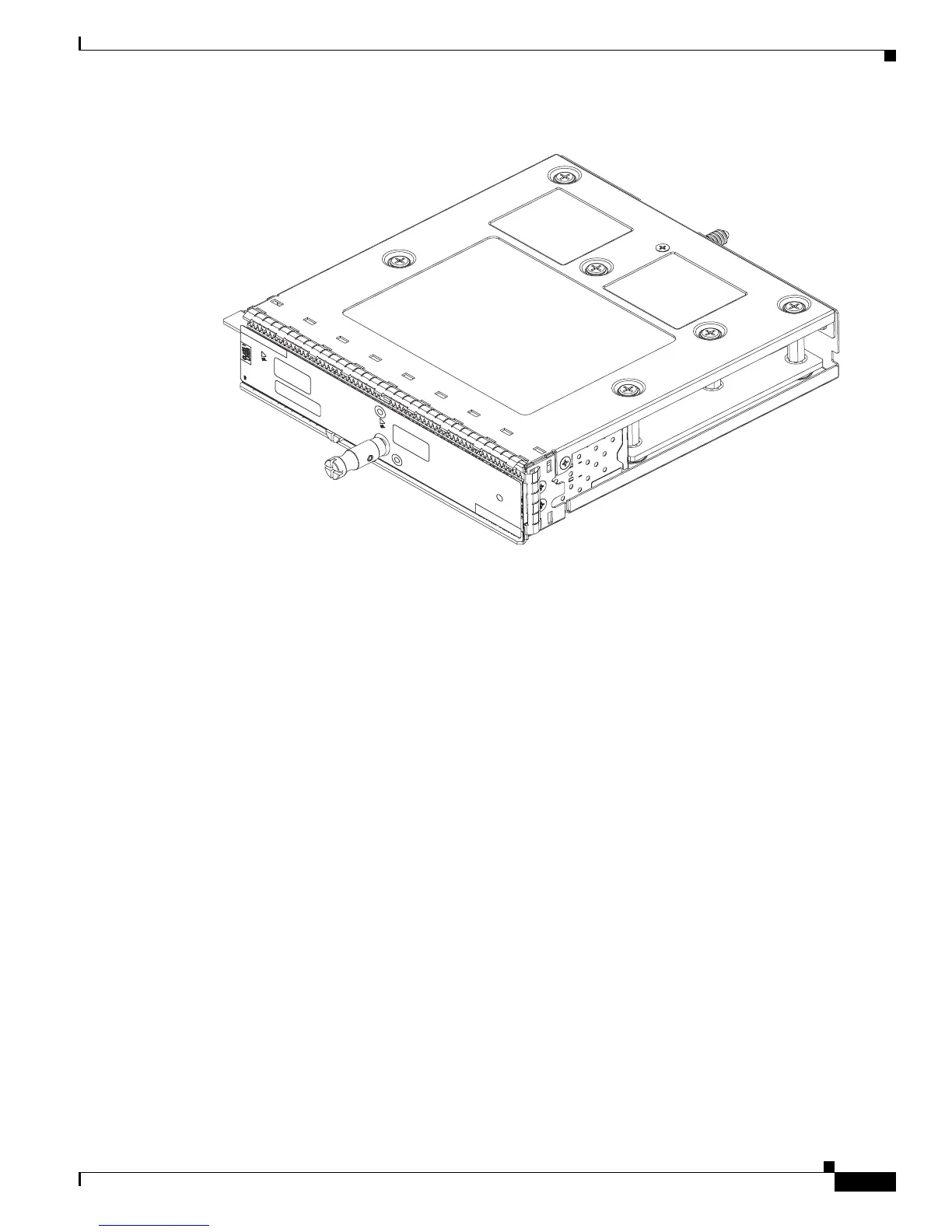

Figure 2-39 2-Port 40-Gigabit Ethernet MPA

1-Port 40-Gigabit Ethernet Modular Port Adapter

The 1-Port 40-Gigabit Ethernet modular port adapter provides a cage for a QSFP+ Ethernet optical

interface module that operates at a rate of 40-Gbps. The QSFP+ module can support either a 40-Gigabit

Ethernet multimode connection or a 40-Gigabit Ethernet single mode connection.

Each QSFP cage on the 1-Port 40 Gigabit Ethernet modular port adapter has an adjacent A/L

(Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated QSFP+

port.

Refer to Figure 2-40 below for an example of the 1-Port 40-Gigabit Ethernet modular port adapter.

330782

STATUS

A9K-MPA-2X10GE
