Chapter 2 Functional Description
Cooling System Functional Description
The Cisco ASR 9922 Router has three air filters on the middle cage (see Figure 2-76). The center air
filter covers the front of the FC cards. The side air filters cover the RP cards.

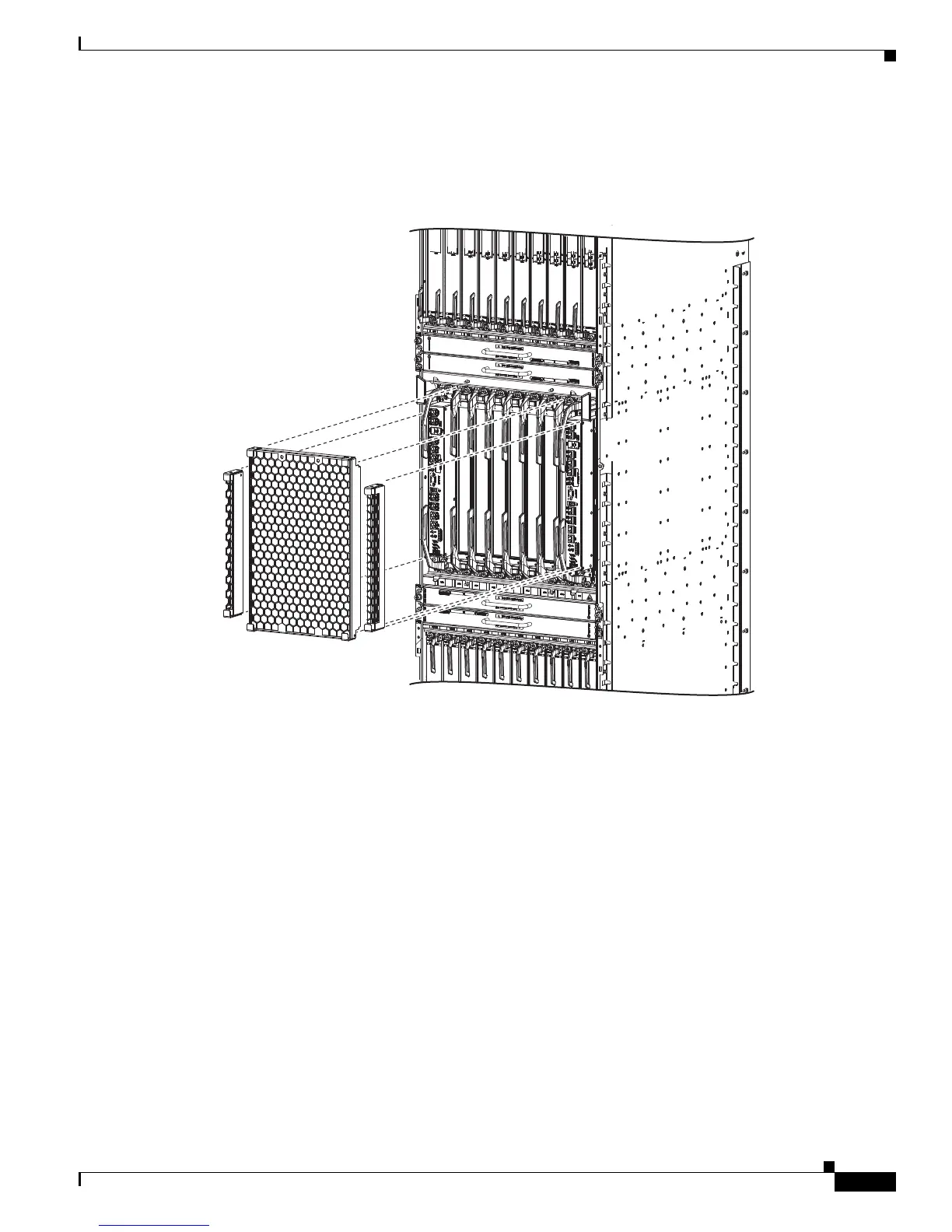

Figure 2-76 ASR 9922 Router Chassis Air Filters
344069
