Chapter 2 Functional Description

Modular Line Cards

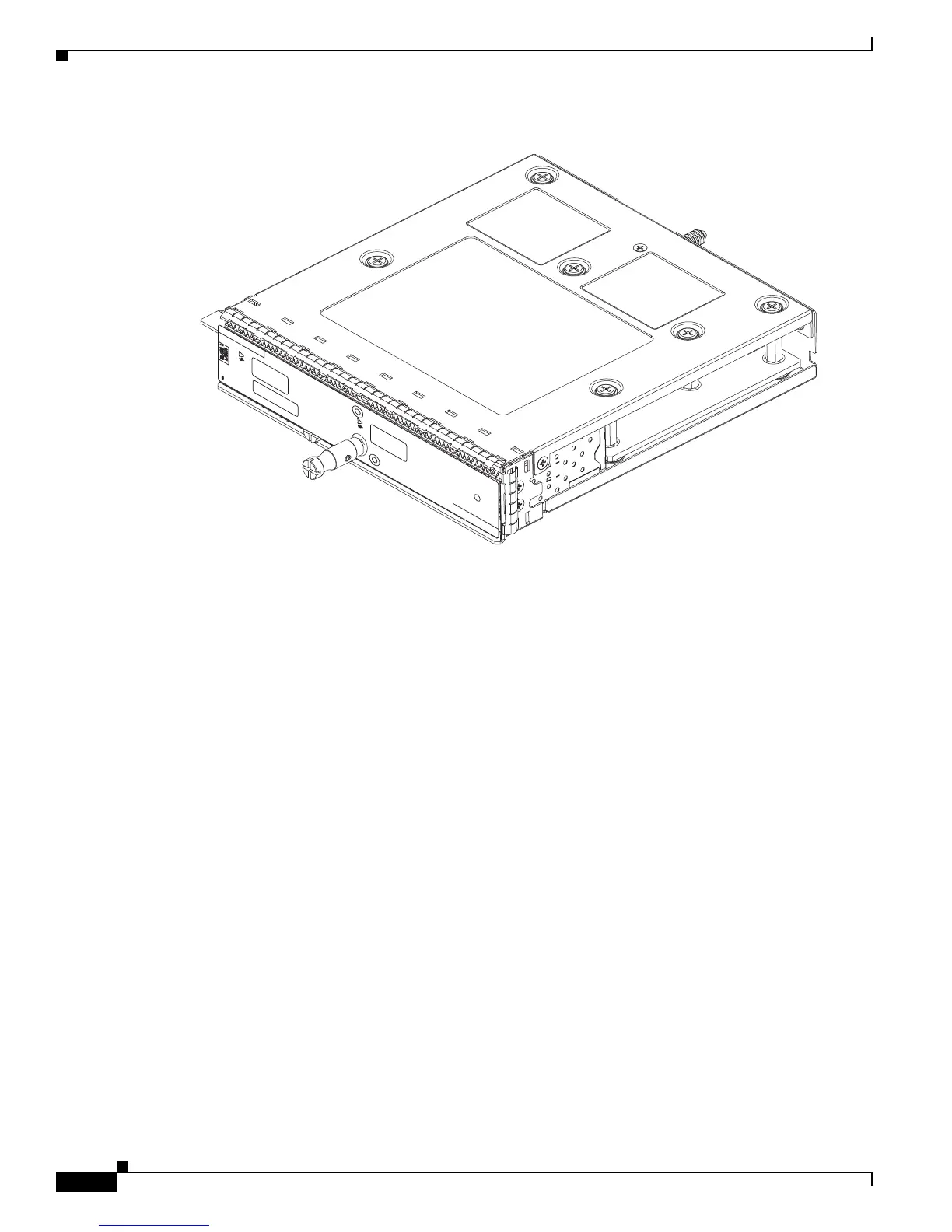

Figure 2-38 2-Port 10-Gigabit Ethernet MPA

2-Port 40-Gigabit Ethernet Modular Port Adapter

The 2-Port 40-Gigabit Ethernet MPA provides two cages for QSFP+ Ethernet optical interface modules

that operate at a rate of 40 Gbps. The two QSFP+ modules can be 40-Gigabit Ethernet multimode or

single mode connections.

Each QSFP+ cage on the 2-Port 40-Gigabit Ethernet MPA has an adjacent A/L LED visible on the front

panel. The A/L LED indicates the status of the associated QSFP+ port.

Figure 2-39 shows an example of the 2-Port 40-Gigabit Ethernet MPA.

330782

STATUS

A9K-MPA-2X10GE
