Cisco Aironet 1000 Series Lightweight Access Point Hardware Installation Guide
OL-9403-04
Chapter 2 Installing the Access Point
Mounting Overview
• Metal flush-mount bracket (user orderable) for mounting the access point to a vertical wall (see
Figure 2-6)
• Ceiling-mount bezel kit (user orderable) for mounting the access point above a suspended ceiling
tile. For additional information, refer to the Quick Start Guide: Ceiling Mount Bezels for Cisco
Aironet 1000 Series Lightweight Access Points.

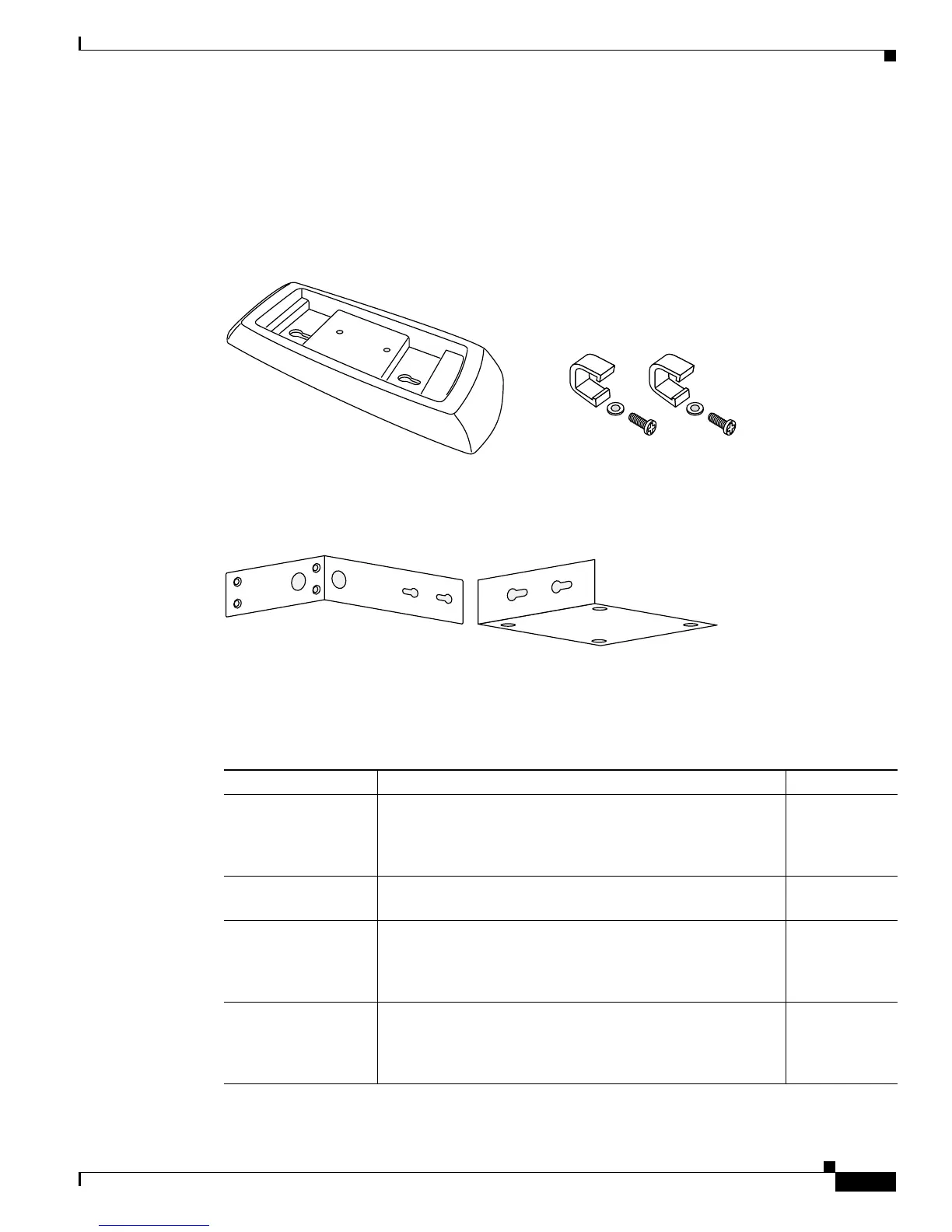

Figure 2-5 Factory-Supplied Mounting Options
Figure 2-6 Orderable Mounting Brackets
Refer to the Table 2-1 to identify the materials you need to mount your access point, then go to the
section containing the specific mounting procedure.
135663
A. Ceiling-mount base
B. Hanging ceiling clips
135661
A. Projection-mount bracket
B. Flush-mount bracket
Table 2-1 Material Needed to Mount Access Point
Mounting Method Materials Required Supplied
Horizontal surface Ceiling-mount base with two screws and two washers
Two screws and optional wall anchors
Standard screwdriver
Drill and drill bit
Yes
User supplied
User supplied
User supplied
Suspended ceiling Two hanging-clips with two screws and two washers
Standard screwdriver
Yes
User supplied
Vertical surface Projection-mount bracket with two screws and two washers
Four screws and optional wall anchors
Standard screwdriver
Drill and drill bit
Orderable
User supplied
User supplied
User supplied
Vertical surface Flush-mount bracket with two screws and two washers
Four screws and optional wall anchors
Standard screwdriver
Drill and drill bit
Orderable
User supplied
User supplied
User supplied
