Cisco C1121-4P User Manual

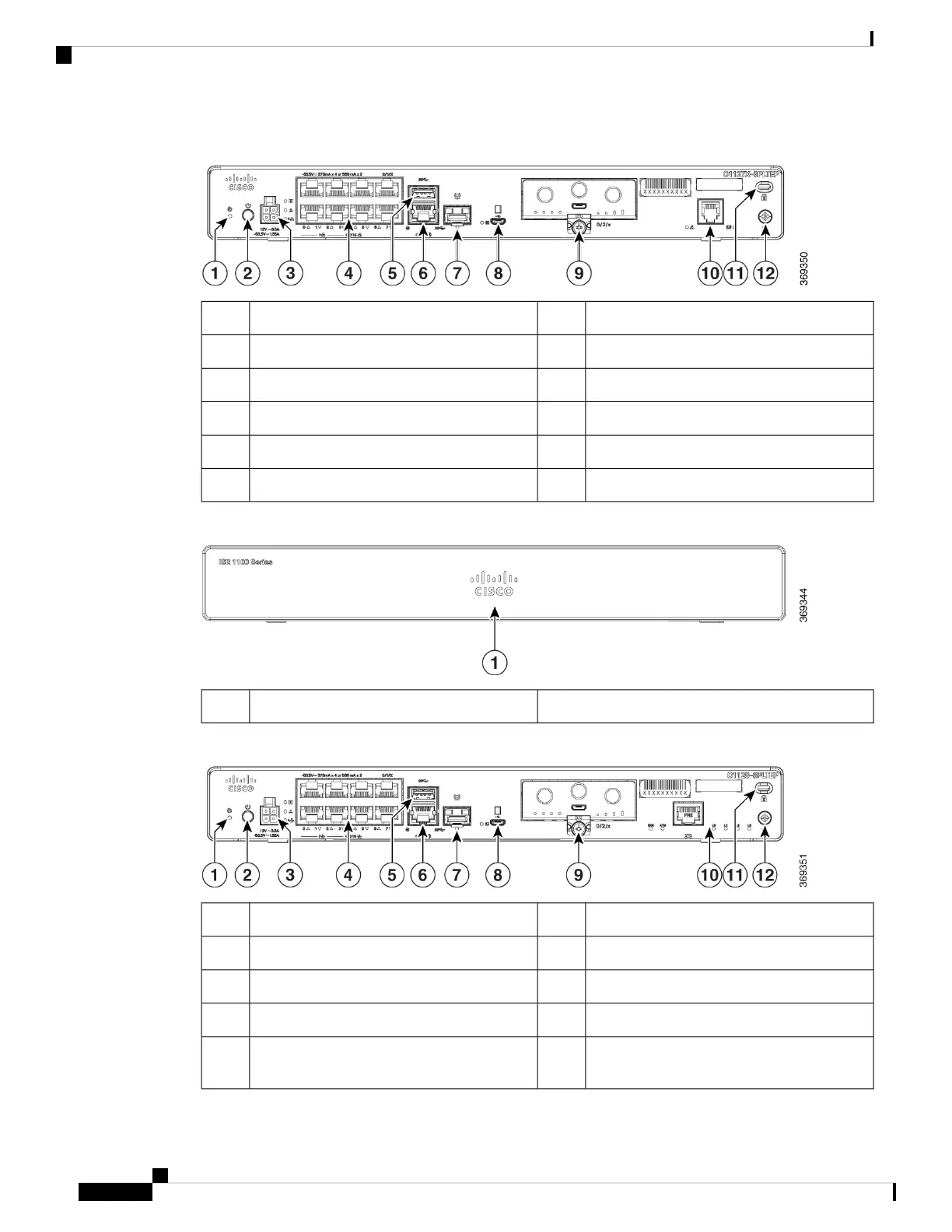

Figure 19: C1127X-8PLTEP IO Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
DSL10Pluggable9
Grounding12Kensington lock slot11
Figure 20: C1128-8PLTEP Bezel View
Non-illuminated Cisco logo1
Figure 21: C1128-8PLTEP I/O Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456USB 3.05
Micro-USB console8GE WAN 0/0/0 -SFP7
Symmetrical High-speed Digital Subscriber
Lines (SHDSL)
10Pluggable9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
12
Overview of Cisco 1000 Series Integrated Services Routers
Chassis Views

Cisco C1121-4P Specifications

General

LAN Ports	4
Integrated Wireless	No
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ports Qty	4
Power Over Ethernet (PoE)	Yes
Routing Protocol	OSPF, BGP, EIGRP
Remote Management Protocol	SNMP
Encryption Algorithm	AES, 3DES, DES
Features	Firewall, VPN support
Compliant Standards	IEEE 802.3, IEEE 802.3u
Type	Router
PoE Standards	IEEE 802.3af
Power Supply	External AC adapter
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
Humidity	10 - 95% (non-condensing)
Network/Transport Protocol	DHCP
