Table 10: Port Mappings for 5G-ANTM-0-4-B on P-5GS6-GL and P-LTEAP18-GL PIMs
P-5GS6-GLP-L TEAP18-GL5G-ANTM-O-4-B
ANT 0Main 0MAIN 0
(LTE1)
ANT 1Main 1MAIN 1
(LTE3)
ANT 2DIV 0DIV 0 (LTE2)
ANT 3DIV 1DIV 1 (LTE4)
GPSNo
connection
GNSS
The following link contains the antenna specifications and installation instructions for 5G NR
(5G-ANTM-O-4-B):
https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/
b-cisco-industrial-routers-and-industrial-wireless-access-points-antenna-guide/m-5g-antm-04b.html#Cisco_
Generic_Topic.dita_e780a6fe-fa46-4a00-bd9d-1c6a98b7bcb9
Install a Micro-SIM Card into a USB LTE Dongle
This section describes how to insert a micro-SIM card into a USB LTE dongle in a C1101-4P router.

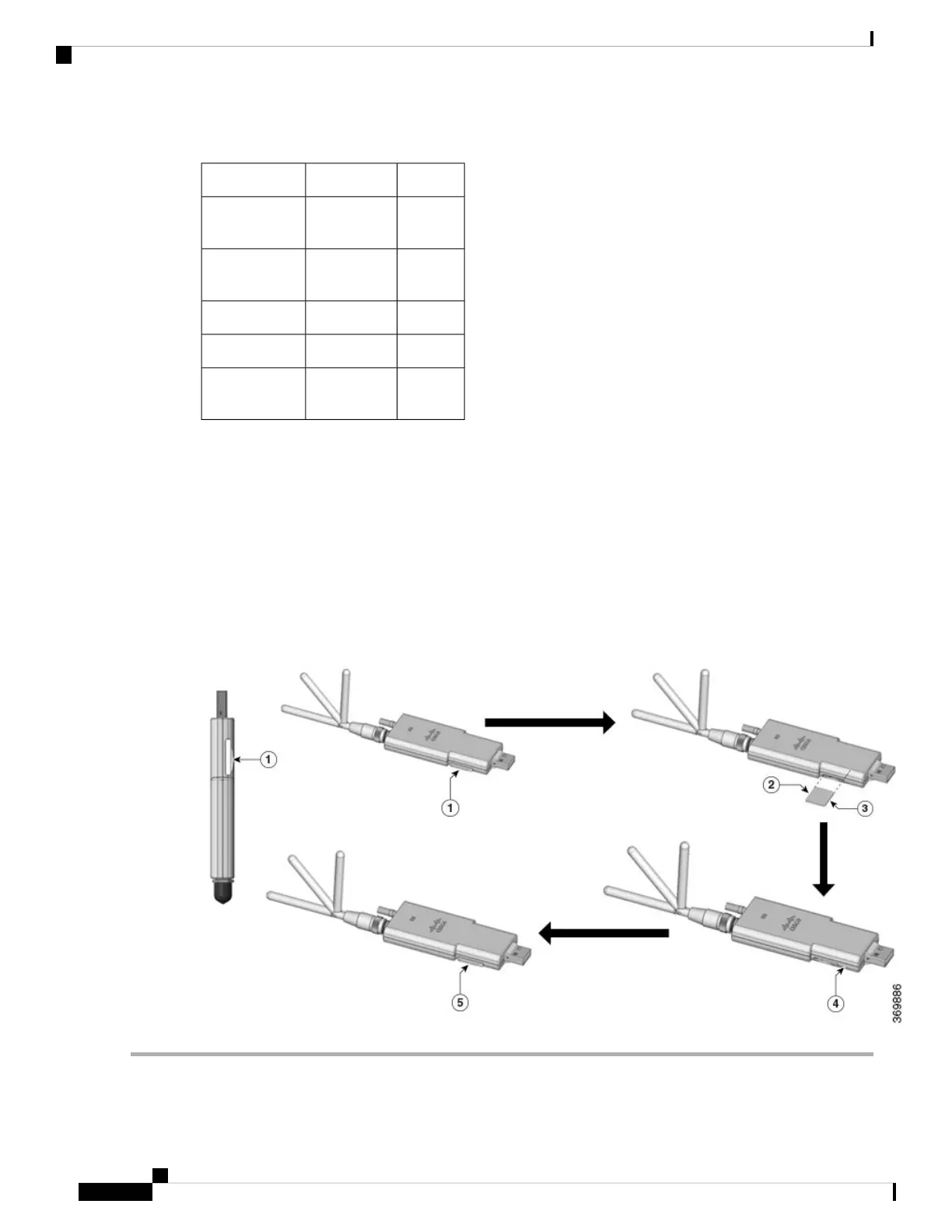

Figure 62: Micro-SIM Card Slot with Dust Cover
Step 1 To insert a micro-SIM card into a USB LTE dongle, do these steps:
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
74
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Micro-SIM Card into a USB LTE Dongle

Cisco C1121-4P Specifications

General

LAN Ports	4
Integrated Wireless	No
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ports Qty	4
Power Over Ethernet (PoE)	Yes
Routing Protocol	OSPF, BGP, EIGRP
Remote Management Protocol	SNMP
Encryption Algorithm	AES, 3DES, DES
Features	Firewall, VPN support
Compliant Standards	IEEE 802.3, IEEE 802.3u
Type	Router
PoE Standards	IEEE 802.3af
Power Supply	External AC adapter
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
Humidity	10 - 95% (non-condensing)
Network/Transport Protocol	DHCP
