Cisco C1121-4P User Manual

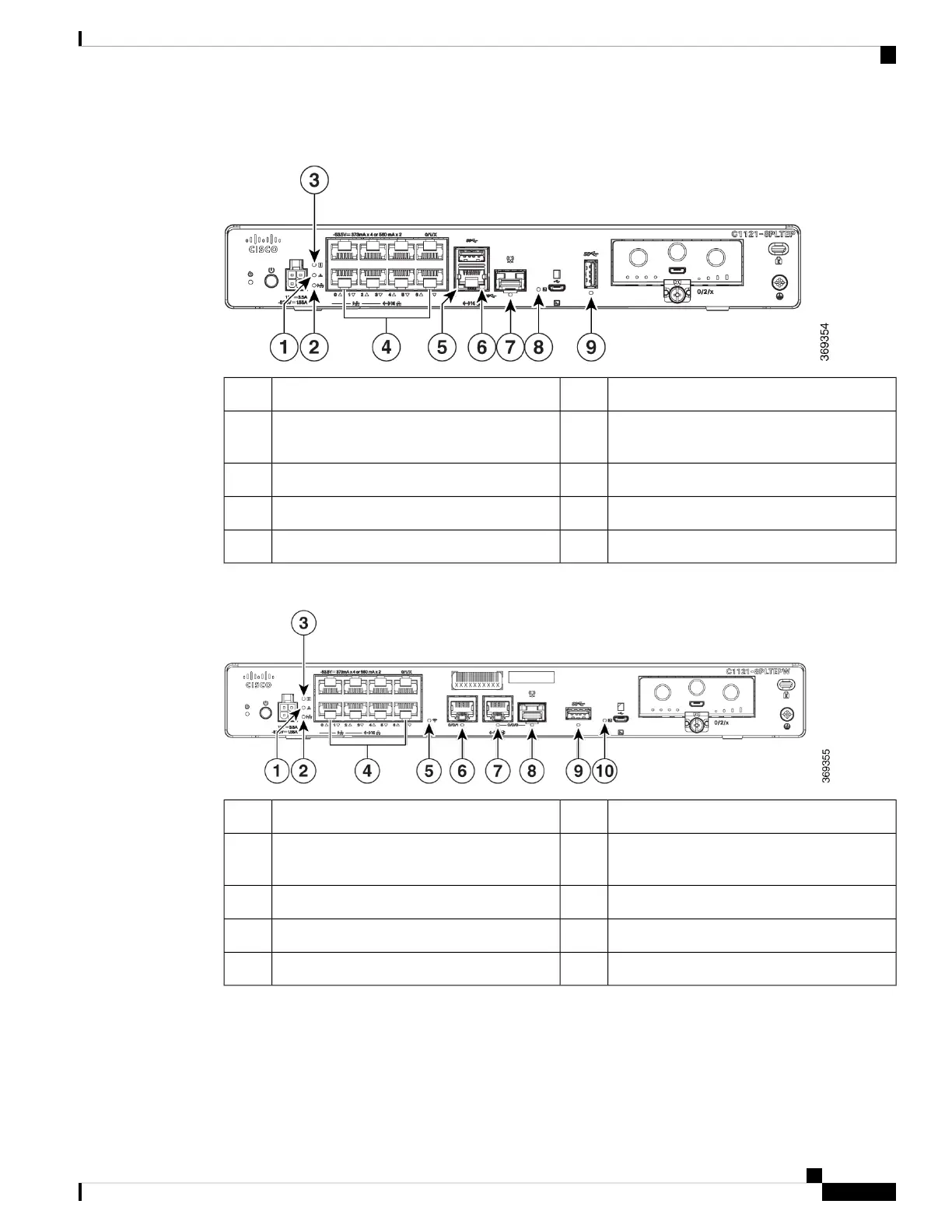

Figure 26: Cisco 11x1(X)-8P/ C11x1(X)-8PLTEP LED Indicators
PoE LED2VPN1
Ethernet switch ports 0-7 (0, 2, 4, 6 at the top
and 1, 3, 5, 7 at the bottom)
4Status3
GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
Micro USB console LED8GE 0/0/0 RJ45 LED7
USB LED9
Figure 27: C1121(X)-8PLTEPWx LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0, 2, 4, 6 at the top
and 1, 3, 5, 7 at the bottom)
4Status3
GE 0/0/0 RJ45 LED6Wi-Fi5
GE 0/0/0 SFP LED8GE 0/0/1 LED7
Micro USB console LED10USB LED9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
15
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators

Cisco C1121-4P Specifications

General

LAN Ports	4
Integrated Wireless	No
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ports Qty	4
Power Over Ethernet (PoE)	Yes
Routing Protocol	OSPF, BGP, EIGRP
Remote Management Protocol	SNMP
Encryption Algorithm	AES, 3DES, DES
Features	Firewall, VPN support
Compliant Standards	IEEE 802.3, IEEE 802.3u
Type	Router
PoE Standards	IEEE 802.3af
Power Supply	External AC adapter
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
Humidity	10 - 95% (non-condensing)
Network/Transport Protocol	DHCP
