1-2
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 1 Overview

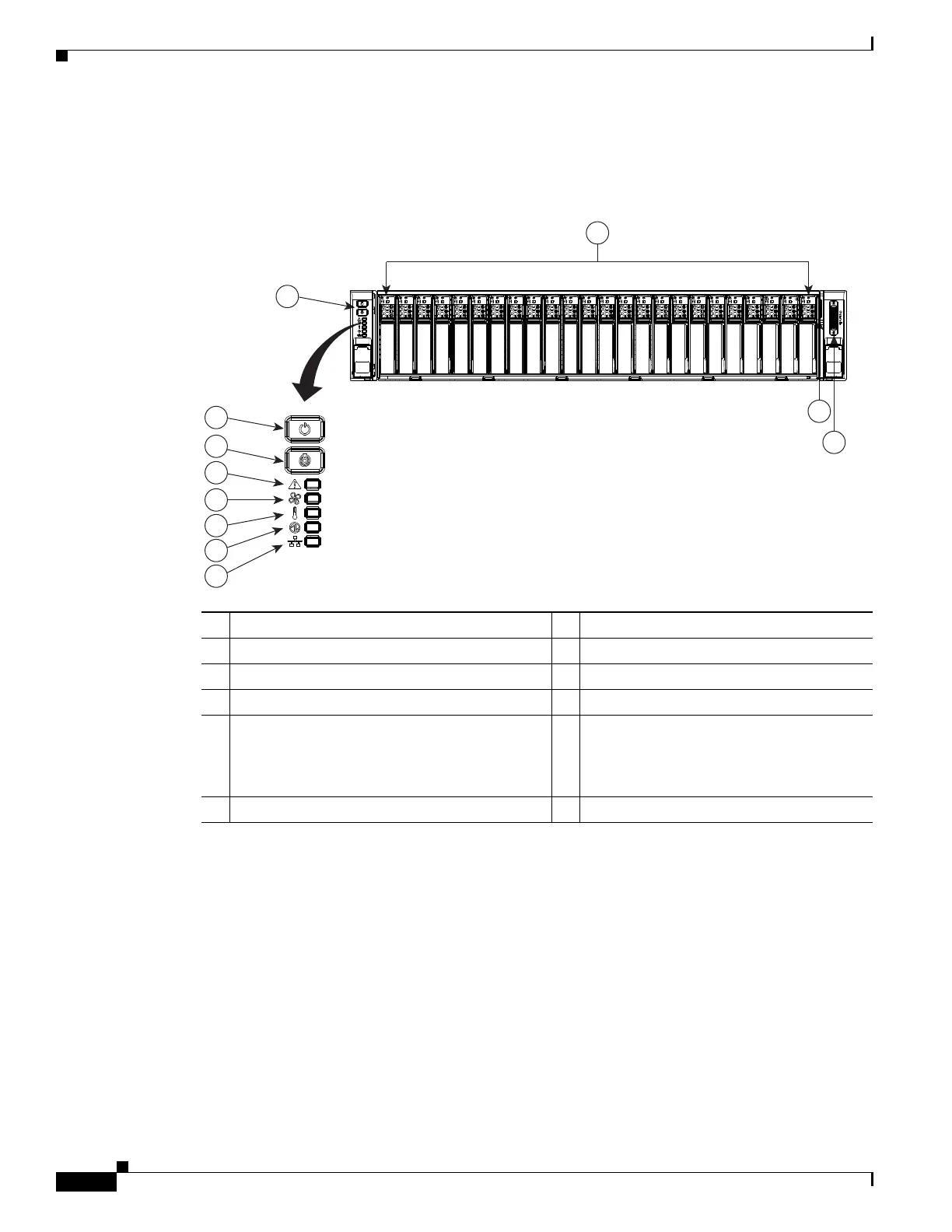

Figure 1-1 shows the front panel features of the SFF drives, 24-drive version of the server. This version
of the server has a 24-drive backplane and an integrated expander.
Figure 1-1 Cisco UCS C240 M4 Server (SFF Drives, 24-Drive) Front Panel Features
1 Drive bays 1–24 (up to 24 2.5-inch drives) 7 Temperature status LED
2 Operations panel buttons and LEDs 8 Power supply status LED
3 Power button/LED 9 Network link activity LED
4 Unit Identification button/LED 10 Pull-out asset tag
5 System status LED 11 KVM connector
(used with KVM cable that provides two
USB 2.0, one VGA, and one serial
connector)
6 Fan status LED
352943
6
10
11
7
8
9
5
4
3
2
1
HDD01
HDD02
HDD03 HDD04 HDD05 HDD06 HDD07 HDD08
HDD09
HDD10 HDD11
HDD12
HDD13
HDD14 HDD15 HDD16
HDD17
HDD18 HDD19 HDD20
HDD21
HDD22 HDD23 HDD24

Cisco c240 Specifications

General

Product Type	Rack Server
Memory	Up to 3TB DDR4
Network Interface	4 x 1GbE or 2 x 10GbE
Storage	Up to 24 x 2.5" or 12 x 3.5"
Remote Management	Cisco Integrated Management Controller (CIMC)
Operating System Support	VMware, Microsoft, Red Hat
Form Factor	2U Rack
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
