Cisco c240 User Manual

1-3
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 1 Overview
Figure 1-2 shows the front-panel features of the SFF drives, 16-drive version of the server. This version
of the server has a 16-drive backplane and an integrated expander.

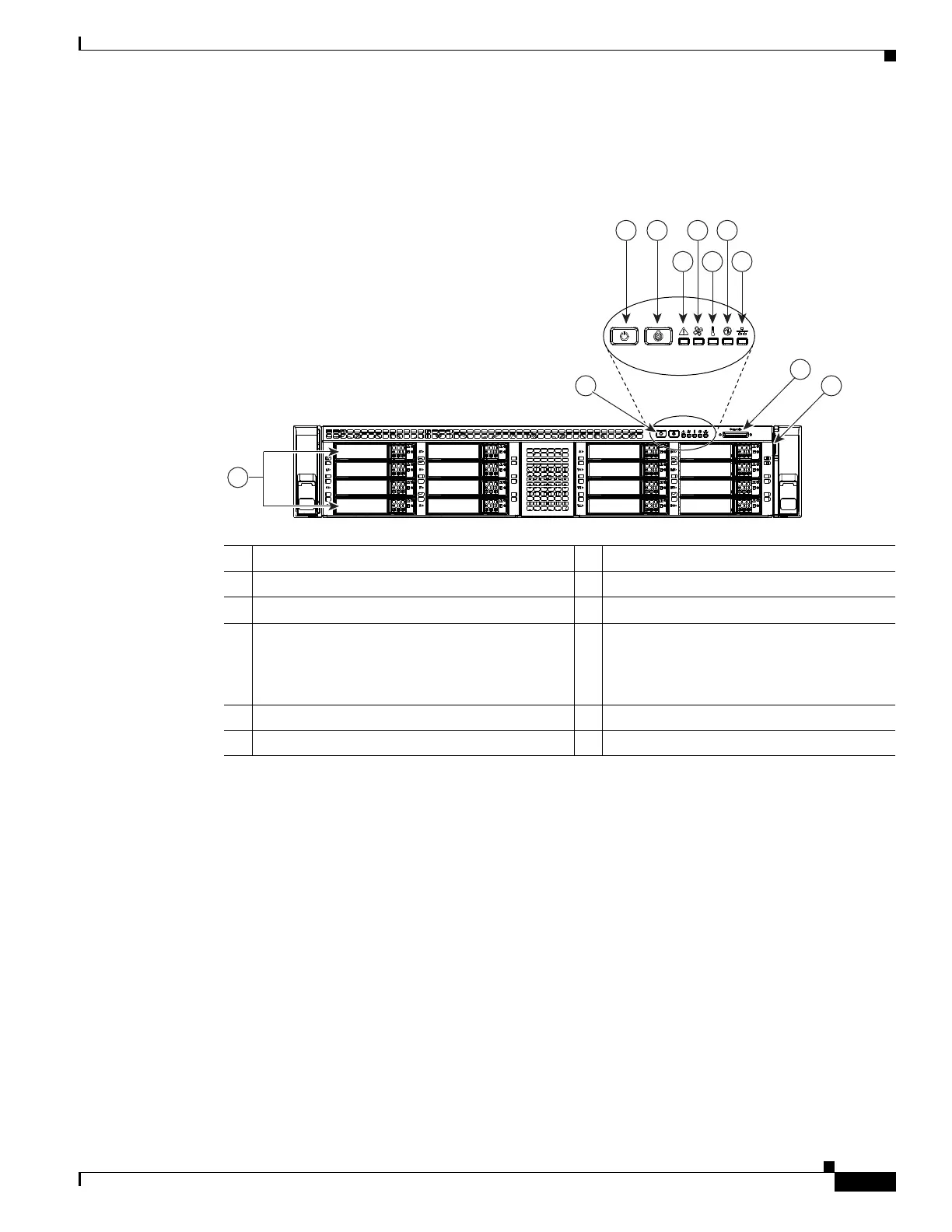

Figure 1-2 Cisco UCS C240 M4 Server (SFF Drives, 16-Drive) Front Panel Features
1 Drive bays 1–16 (up to 16 2.5-inch drives) 7 Temperature status LED
2 Operations panel buttons and LEDs 8 Power supply status LED
3 Power button/LED 9 Network link activity LED
4 Unit Identification button/LED 10 KVM connector
(used with KVM cable that provides two
USB 2.0, one VGA, and one serial
connector)
5 System status LED 11 Pull-out asset tag
6 Fan status LED
HDD01
HDD03
HDD05
HDD07
HDD02
HDD04
HDD06
HDD08
HDD09
HDD11
HDD13
HDD15
HDD10
HDD12
HDD14
HDD16
1
975
3
2
4 6 8
10
11
352944

Cisco c240 Specifications

General

Product Type	Rack Server
Memory	Up to 3TB DDR4
Network Interface	4 x 1GbE or 2 x 10GbE
Storage	Up to 24 x 2.5" or 12 x 3.5"
Remote Management	Cisco Integrated Management Controller (CIMC)
Operating System Support	VMware, Microsoft, Red Hat
Form Factor	2U Rack
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
