1-6
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 1 Overview

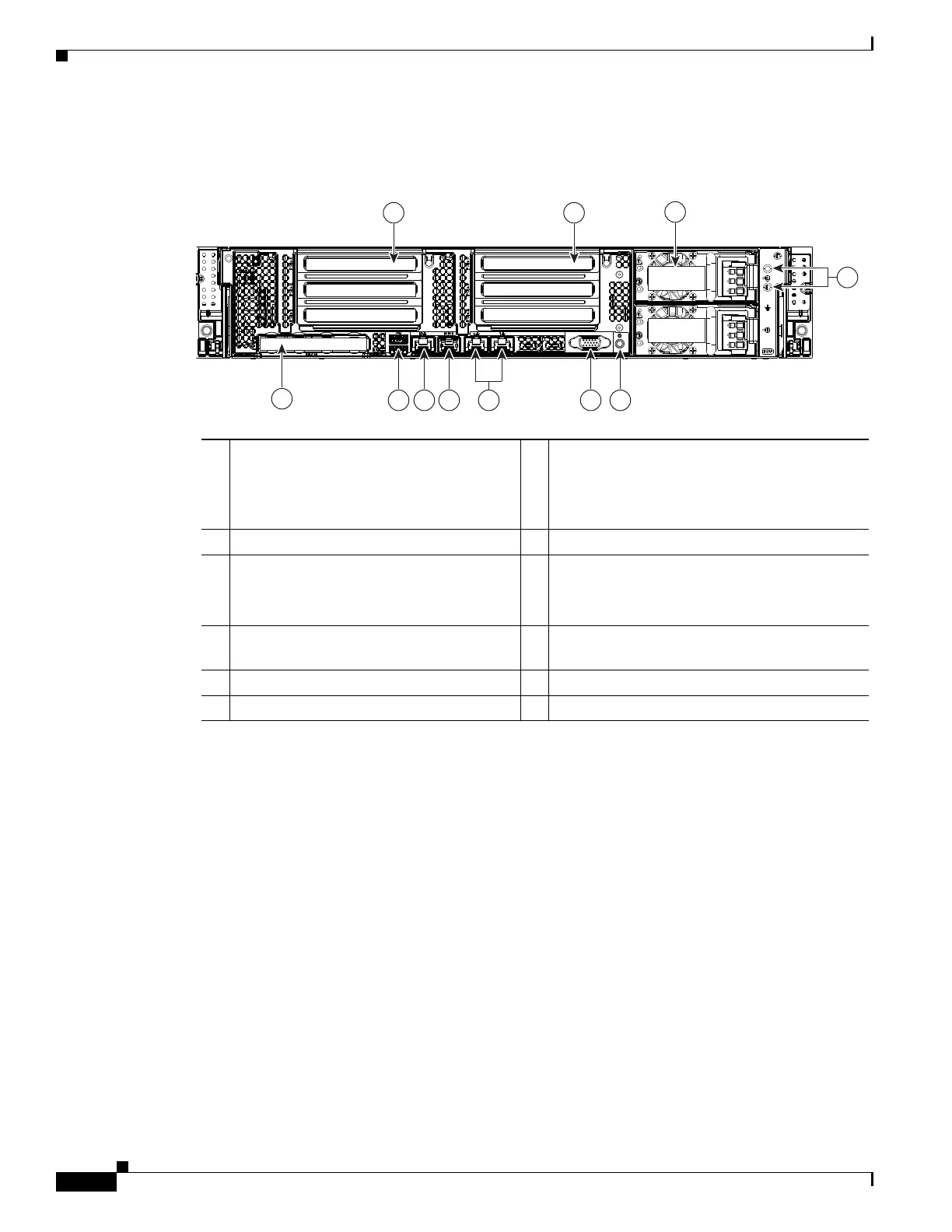

Figure 1-5 shows the rear panel features of the server (identical for all versions of the server).
Figure 1-5 Cisco UCS C240 M4 Server Rear Panel Features
1 PCIe riser 1 (slots 1, 2, 3*)
*Slot 3 not present in all versions. See
Replacing a PCIe Card, page 3-43 for riser
options and slot specifications.
7 Serial port (RJ-45 connector)
2 PCIe riser 2 (slots 4, 5, 6) 8 Dual 1-Gb Ethernet ports (LAN1, LAN2)
3 Power supplies (DC power supplies shown)
See Power Specifications, page A-2 for
specifications and options.
9 VGA video port (DB-15 connector)
4 Modular LAN-on-motherboard (mLOM)
card slot
10 Rear Unit Identification button/LED
5 USB 3.0 ports (two) 11 Grounding-lug holes (for DC power supplies)
6 1-Gb dedicated management port
352947
PCIe 01
PCIe 03
PCIe 02
mLOM
PCIe 04
PCIe 06
PCIe 05
PSU 01
PSU 02
4
5 6 7 9 10
11
1 2
3
8

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco c240 and is the answer not in the manual?

Cisco c240 Specifications

General IconGeneral
Product TypeRack Server
MemoryUp to 3TB DDR4
Network Interface4 x 1GbE or 2 x 10GbE
StorageUp to 24 x 2.5" or 12 x 3.5"
Remote ManagementCisco Integrated Management Controller (CIMC)
Operating System SupportVMware, Microsoft, Red Hat
Form Factor2U Rack
RAID SupportRAID 0, 1, 5, 6, 10, 50, 60
