Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Note The arrow label on the top of the fan module, which indicates the direction of airflow, should
point toward the rear of the server.
c. Press down gently on the fan module until the latch clicks and locks in place.
d. Repeat until you have moved all fan modules into the new fan cage.

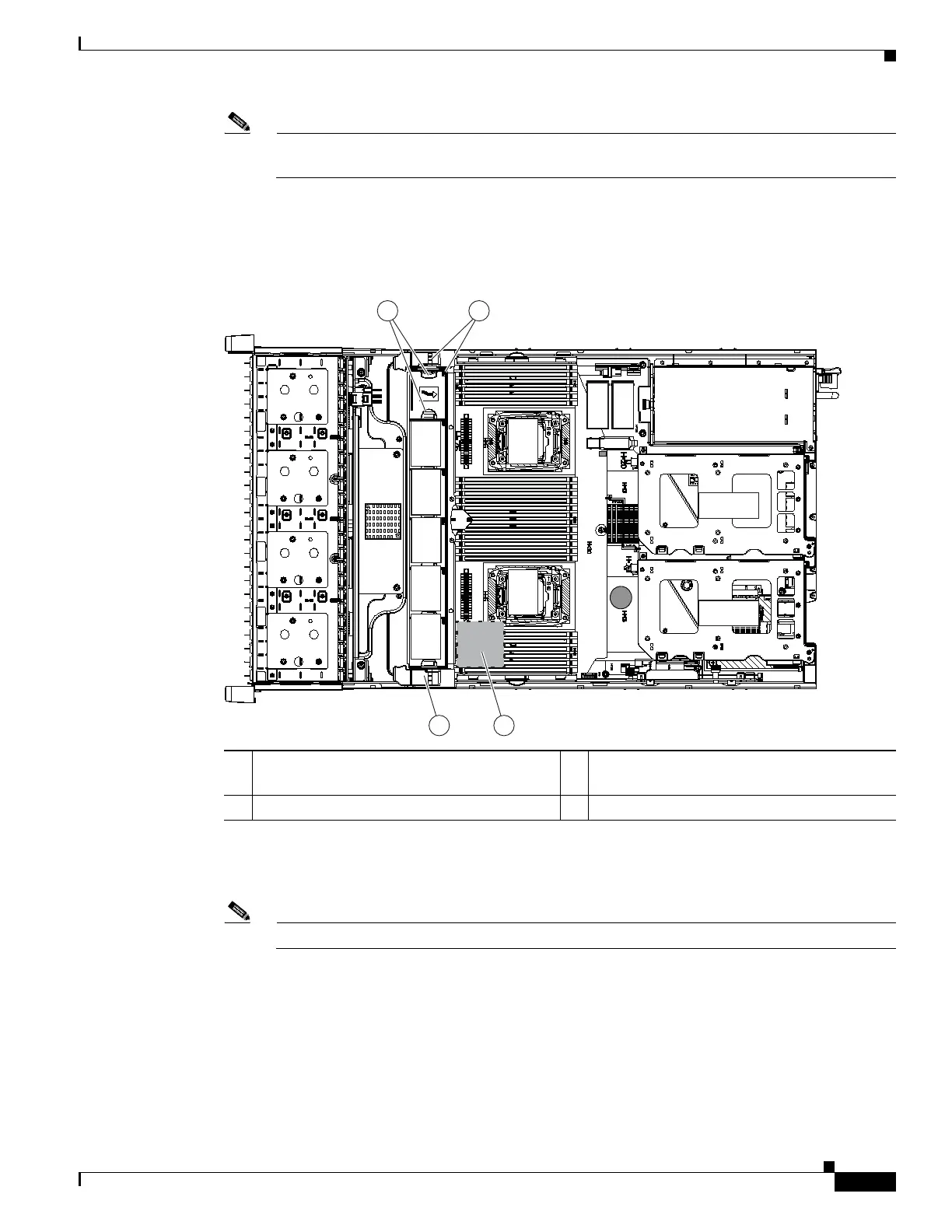

Figure 3-27 Fan Cage and Fan Modules
Step 9
Remove the existing heatsink from each CPU.
a. Use a Number 2 Phillips-head screwdriver to loosen the four captive screws that secure the heatsink.
Note Alternate loosening each screw evenly to avoid damaging the heatsink or CPU.
b. Lift the heatsink off of the CPU and set it aside.
Step 10 Use the heatsink cleaning kit that comes with the conversion kit to clean the existing thermal grease from
the top surface of each CPU.
Step 11 Install the low-profile replacement heatsinks that come with the conversion kit:
a. Remove the protective tape from the pre-applied pad of thermal grease that is on the underside of
the new heatsink.
1 Finger latches (on each fan module) 3 SuperCap power module position on
removable air baffle (air baffle not shown)
2 Fan cage plastic locking-levers
FAN 05
FAN 04
FA N 0 3
FA N 0 2
FA N 01
CPU 1
CPU 2
SD1 SD2
Riser 2
Riser 1
305091
1 2
2 3
