4.Replacing Components
15

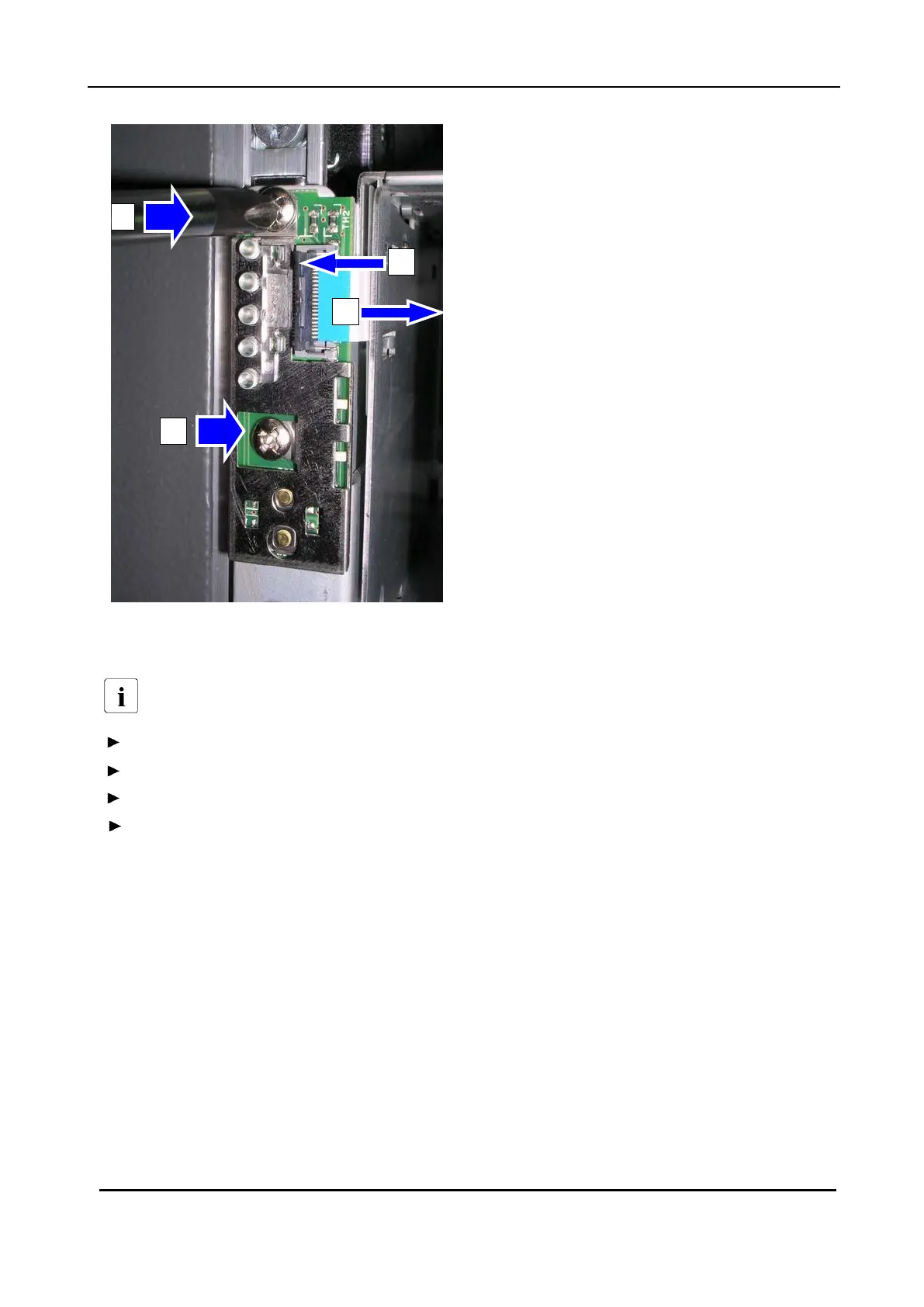

Figure 4: Removing the panel behind the bezel
When disconnecting the panel and the flexible flat cable (FFC), be careful not to damage or break the lever, the
connector, or the FFC.
Lift up the lever of the flexible flat cable connector to the left (1).
Remove the connector carefully from the panel (2).
Undo the two screws (3).
Remove the metal plate, the printed board, and the foil behind it.
3
3
1
2
